MayaFlux::Nodes::CompositeOpNode< N > Class Template Reference

Combines the outputs of N nodes using a composite operation. More...

#include <NodeCombine.hpp>

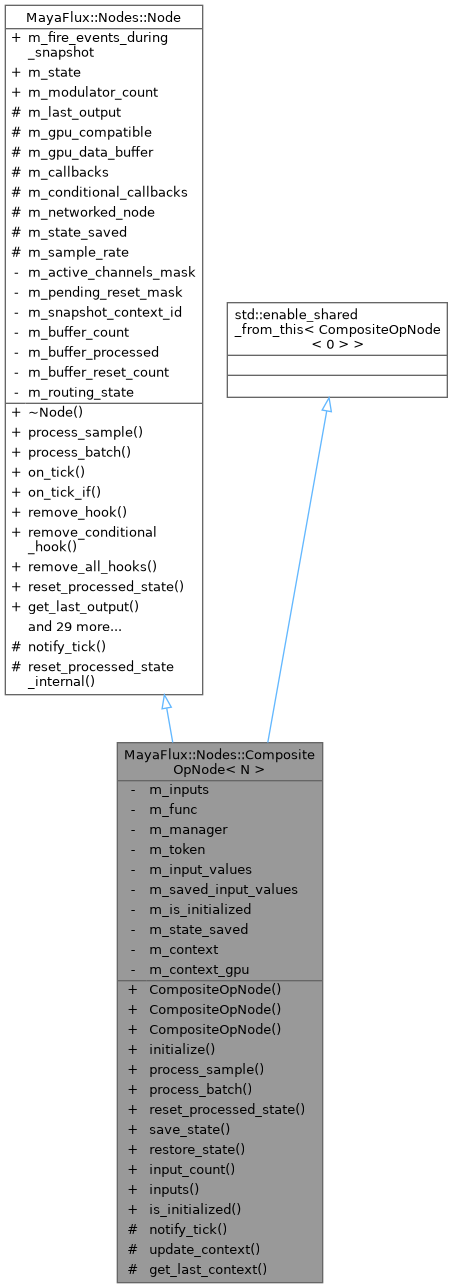

Inheritance diagram for MayaFlux::Nodes::CompositeOpNode< N >:

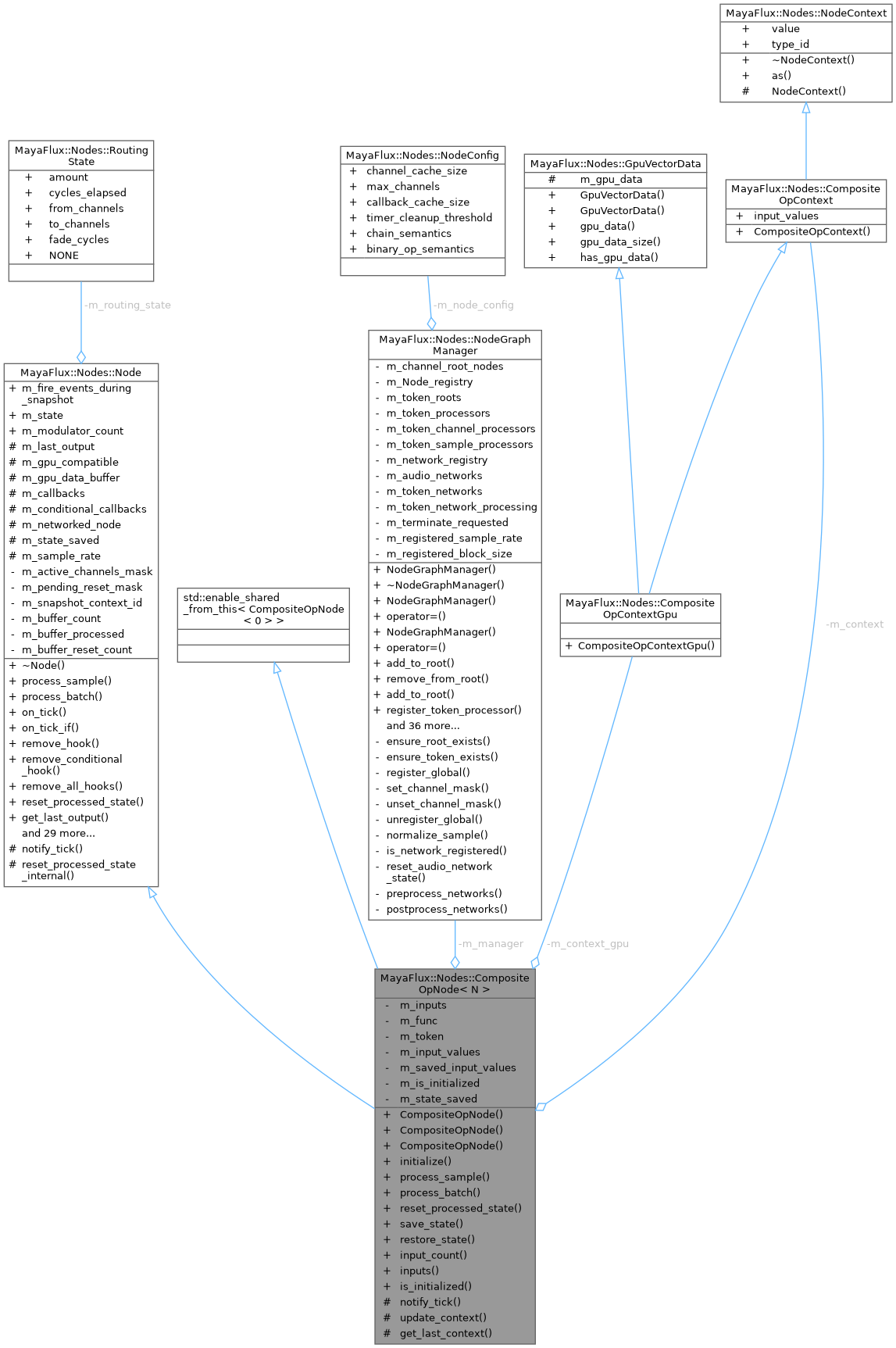

Collaboration diagram for MayaFlux::Nodes::CompositeOpNode< N >:

Public Types
using	CombineFunc = std::function< double(std::span< const double >)>

Public Member Functions
	CompositeOpNode (std::vector< std::shared_ptr< Node > > inputs, CombineFunc func)
	Creates a composite operation node (unmanaged)
	CompositeOpNode (std::vector< std::shared_ptr< Node > > inputs, CombineFunc func, NodeGraphManager &manager, ProcessingToken token=ProcessingToken::AUDIO_RATE)
	Creates a composite operation node (managed)
template<typename DerivedNode > requires std::derived_from<DerivedNode, Node>
	CompositeOpNode (std::vector< std::shared_ptr< DerivedNode > > inputs, CombineFunc func, NodeGraphManager &manager, ProcessingToken token=ProcessingToken::AUDIO_RATE)
	Creates a composite operation node with derived node types (managed)
void	initialize ()
double	process_sample (double input=0.) override
	Processes a single data sample.
std::vector< double >	process_batch (unsigned int num_samples) override
	Processes multiple samples at once.
void	reset_processed_state () override
	Resets the processed state of the node and any attached input nodes.
void	save_state () override
	Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
void	restore_state () override
	Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
size_t	input_count () const
const std::vector< std::shared_ptr< Node > > &	inputs () const
bool	is_initialized () const
Public Member Functions inherited from MayaFlux::Nodes::Node
virtual	~Node ()=default
	Virtual destructor for proper cleanup of derived classes.
virtual void	on_tick (const NodeHook &callback)
	Registers a callback to be called on each tick.
virtual void	on_tick_if (const NodeCondition &condition, const NodeHook &callback)
	Registers a conditional callback.
virtual bool	remove_hook (const NodeHook &callback)
	Removes a previously registered callback.
virtual bool	remove_conditional_hook (const NodeCondition &callback)
	Removes a previously registered conditional callback.
virtual void	remove_all_hooks ()
	Removes all registered callbacks.
virtual double	get_last_output ()
	Retrieves the most recent output value produced by the node.
void	register_channel_usage (uint32_t channel_id)
	Mark the specificed channel as a processor/user.
void	unregister_channel_usage (uint32_t channel_id)
	Removes the specified channel from the usage tracking.
bool	is_used_by_channel (uint32_t channel_id) const
	Checks if the node is currently used by a specific channel.
void	request_reset_from_channel (uint32_t channel_id)
	Requests a reset of the processed state from a specific channel.
const std::atomic< uint32_t > &	get_channel_mask () const
	Retrieves the current bitmask of active channels using this node.
void	set_gpu_compatible (bool compatible)
	Sets whether the node is compatible with GPU processing.
bool	is_gpu_compatible () const
	Checks if the node supports GPU processing.
std::span< const float >	get_gpu_data_buffer () const
	Provides access to the GPU data buffer.
void	set_sample_rate (uint32_t sample_rate)
uint32_t	get_sample_rate () const
bool	try_claim_snapshot_context (uint64_t context_id)
	Attempt to claim snapshot context for this processing cycle.
bool	is_in_snapshot_context (uint64_t context_id) const
	Check if currently in a snapshot context.
void	release_snapshot_context (uint64_t context_id)
	Release snapshot context.
bool	has_active_snapshot () const
	Check if node is currently being snapshotted by any context.
uint64_t	get_active_snapshot_context () const
	Get the active snapshot context ID.
void	add_buffer_reference ()
	Increments the buffer reference count This method is called when a new buffer starts using this node to ensure proper lifecycle management.
void	remove_buffer_reference ()
	Decrements the buffer reference count This method is called when a buffer stops using this node to ensure proper lifecycle management.
bool	mark_buffer_processed ()
	Marks the node as having been processed by a buffer.
void	request_buffer_reset ()
	Requests a reset of the buffer state.
bool	is_buffer_processed () const
	Checks if the buffer has been processed.
bool	is_in_network () const
	Sets whether the node is part of a NodeNetwork.
void	set_in_network (bool networked)
	Marks the node as being part of a NodeNetwork.
const RoutingState &	get_routing_state () const
	Retrieves the current routing state of the network.
RoutingState &	get_routing_state ()
	Retrieves the current routing state of the network (non-const)
bool	needs_channel_routing () const
	Checks if the network is currently in a routing transition phase.

Protected Member Functions
void	notify_tick (double value) override
	Notifies all registered callbacks with the current context.
void	update_context (double) override
	Updates the context object with the current node state.
NodeContext &	get_last_context () override
	Retrieves the last created context object.
Protected Member Functions inherited from MayaFlux::Nodes::Node
virtual void	reset_processed_state_internal ()
	Resets the processed state of the node directly.

Private Attributes
std::vector< std::shared_ptr< Node > >	m_inputs
CombineFunc	m_func
NodeGraphManager *	m_manager {}
ProcessingToken	m_token { ProcessingToken::AUDIO_RATE }
std::vector< double >	m_input_values
std::vector< double >	m_saved_input_values
bool	m_is_initialized {}
bool	m_state_saved {}
CompositeOpContext	m_context
CompositeOpContextGpu	m_context_gpu

Additional Inherited Members
Public Attributes inherited from MayaFlux::Nodes::Node
bool	m_fire_events_during_snapshot = false
	Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent.
std::atomic< NodeState >	m_state { NodeState::INACTIVE }
	Atomic state flag tracking the node's processing status.
std::atomic< uint32_t >	m_modulator_count { 0 }
	Counter tracking how many other nodes are using this node as a modulator.
Protected Attributes inherited from MayaFlux::Nodes::Node
double	m_last_output { 0 }
	The most recent sample value generated by this oscillator.
bool	m_gpu_compatible {}
	Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU.
std::vector< float >	m_gpu_data_buffer
	GPU data buffer for context objects.
std::vector< NodeHook >	m_callbacks
	Collection of standard callback functions.
std::vector< std::pair< NodeHook, NodeCondition > >	m_conditional_callbacks
	Collection of conditional callback functions with their predicates.
bool	m_networked_node {}
	Flag indicating if the node is part of a NodeNetwork This flag is used to disable event firing when the node is managed within a NodeNetwork, preventing redundant or conflicting event notifications.
bool	m_state_saved {}
	tracks if the node's state has been saved by a snapshot operation
uint32_t	m_sample_rate { 48000 }
	Sample rate for audio processing, used for normalization.

Detailed Description

template<size_t N = 0>
class MayaFlux::Nodes::CompositeOpNode< N >

Combines the outputs of N nodes using a composite operation.

All input nodes process the same input sample. Their outputs are collected and passed to a user-supplied combine function. Generalizes BinaryOpNode to arbitrary arity.

No operator overloads are provided since there is no natural N-ary operator syntax in C++.

Template Parameters

N	Optional compile-time arity. 0 (default) means runtime-determined.

Definition at line 338 of file NodeCombine.hpp.

---

The documentation for this class was generated from the following file:

• NodeCombine.hpp
