MayaFlux::Nodes::BinaryOpNode Class Reference
Combines the outputs of two nodes using a binary operation. More...
#include <NodeCombine.hpp>

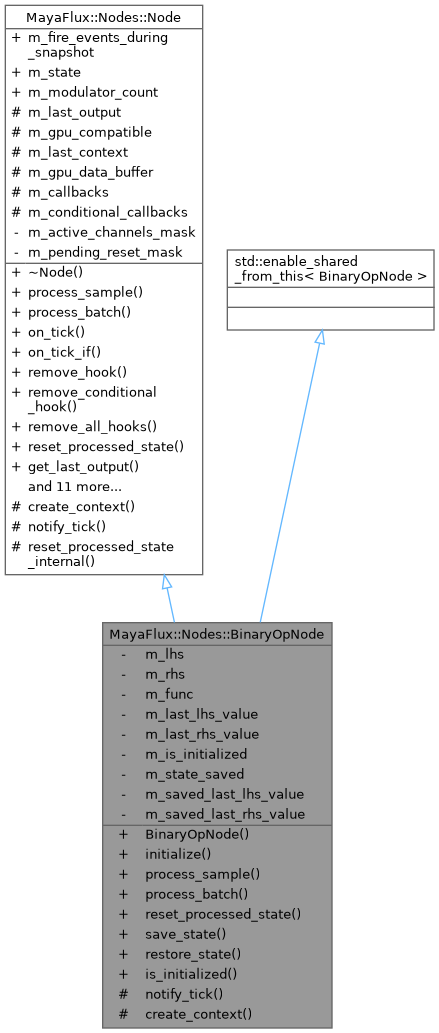

Inheritance diagram for MayaFlux::Nodes::BinaryOpNode: Collaboration diagram for MayaFlux::Nodes::BinaryOpNode:Public Types | |
| using | CombineFunc = std::function< double(double, double)> |
| Function type for combining two node outputs. | |
Public Member Functions | |
| BinaryOpNode (const std::shared_ptr< Node > &lhs, const std::shared_ptr< Node > &rhs, CombineFunc func) | |
| Creates a new binary operation node. | |
| BinaryOpNode (const std::shared_ptr< Node > &lhs, const std::shared_ptr< Node > &rhs, CombineFunc func, NodeGraphManager &manager, ProcessingToken token=ProcessingToken::AUDIO_RATE) | |
| Creates a new binary operation node (managed) | |
| void | initialize () |
| Initializes the binary operation node. | |
| bool | is_initialized () const |
| std::vector< double > | process_batch (unsigned int num_samples) override |
| Processes multiple samples through both nodes and combines the results. | |
| double | process_sample (double input=0.) override |
| Processes a single sample through both nodes and combines the results. | |
| void | reset_processed_state () override |
| Resets the processed state of the node and any attached input nodes. | |
| void | restore_state () override |
| Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call. | |
| void | save_state () override |
| Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call. | |
| Public Member Functions inherited from MayaFlux::Nodes::Node | |
| void | add_buffer_reference () |
| Increments the buffer reference count This method is called when a new buffer starts using this node to ensure proper lifecycle management. | |
| uint64_t | get_active_snapshot_context () const |
| Get the active snapshot context ID. | |
| const std::atomic< uint32_t > & | get_channel_mask () const |
| Retrieves the current bitmask of active channels using this node. | |
| uint32_t | get_frame_rate () const |
| std::span< const float > | get_gpu_data_buffer () const |
| Provides access to the GPU data buffer. | |
| virtual double | get_last_output () |
| Retrieves the most recent output value produced by the node. | |
| RoutingState & | get_routing_state () |
| Retrieves the current routing state of the network (non-const) | |
| const RoutingState & | get_routing_state () const |
| Retrieves the current routing state of the network. | |
| uint32_t | get_sample_rate () const |
| bool | has_active_snapshot () const |
| Check if node is currently being snapshotted by any context. | |
| bool | has_capability (NodeCapability cap) const |
| Query a single capability. | |
| bool | is_buffer_processed () const |
| Checks if the buffer has been processed. | |
| bool | is_gpu_compatible () const |
| Checks if the node supports GPU processing. | |
| bool | is_in_network () const |
| Sets whether the node is part of a NodeNetwork. | |
| bool | is_in_snapshot_context (uint64_t context_id) const |
| Check if currently in a snapshot context. | |
| bool | is_used_by_channel (uint32_t channel_id) const |
| Checks if the node is currently used by a specific channel. | |
| bool | mark_buffer_processed () |
| Marks the node as having been processed by a buffer. | |
| bool | needs_channel_routing () const |
| Checks if the network is currently in a routing transition phase. | |
| virtual uint8_t | node_capabilities () const |
| Declare which data shapes this node's context can produce. | |
| virtual void | on_tick (const NodeHook &callback) |
| Registers a callback to be called on each tick. | |
| virtual void | on_tick_if (const NodeCondition &condition, const NodeHook &callback) |
| Registers a conditional callback. | |
| void | register_channel_usage (uint32_t channel_id) |
| Mark the specificed channel as a processor/user. | |
| void | release_snapshot_context (uint64_t context_id) |
| Release snapshot context. | |
| virtual void | remove_all_hooks () |
| Removes all registered callbacks. | |
| void | remove_buffer_reference () |
| Decrements the buffer reference count This method is called when a buffer stops using this node to ensure proper lifecycle management. | |
| virtual bool | remove_conditional_hook (const NodeCondition &callback) |
| Removes a previously registered conditional callback. | |
| virtual bool | remove_hook (const NodeHook &callback) |
| Removes a previously registered callback. | |
| void | request_buffer_reset () |
| Requests a reset of the buffer state. | |
| void | request_reset_from_channel (uint32_t channel_id) |
| Requests a reset of the processed state from a specific channel. | |
| void | set_frame_rate (uint32_t frame_rate) |
| virtual void | set_gpu_compatible (bool compatible) |
| Sets whether the node is compatible with GPU processing. | |
| void | set_in_network (bool networked) |
| Marks the node as being part of a NodeNetwork. | |
| void | set_sample_rate (uint32_t sample_rate) |
| bool | try_claim_snapshot_context (uint64_t context_id) |
| Attempt to claim snapshot context for this processing cycle. | |
| void | unregister_channel_usage (uint32_t channel_id) |
| Removes the specified channel from the usage tracking. | |
| virtual | ~Node ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
Protected Member Functions | |
| NodeContext & | get_last_context () override |
| Retrieves the last created context object. | |
| void | notify_tick (double value) override |
| Notifies all registered callbacks about a new output value. | |
| void | update_context (double value) override |
| updates context object for callbacks | |
| Protected Member Functions inherited from MayaFlux::Nodes::Node | |
| virtual void | reset_processed_state_internal () |
| Resets the processed state of the node directly. | |
Private Attributes | |
| BinaryOpContext | m_context |
| BinaryOpContextGpu | m_context_gpu |
| CombineFunc | m_func |
| The function used to combine the outputs of both nodes. | |
| bool | m_is_initialized {} |
| Flag indicating whether the binary operator has been properly initialized. | |
| double | m_last_lhs_value {} |
| The last output value from the left-hand side node. | |
| double | m_last_rhs_value {} |
| The last output value from the right-hand side node. | |
| std::shared_ptr< Node > | m_lhs |
| The left-hand side node. | |
| NodeGraphManager * | m_manager {} |
| Reference to the node graph manager for registration and callback management. | |
| std::shared_ptr< Node > | m_rhs |
| The right-hand side node. | |
| double | m_saved_last_lhs_value {} |
| double | m_saved_last_rhs_value {} |
| bool | m_state_saved {} |
| ProcessingToken | m_token { ProcessingToken::AUDIO_RATE } |
| The processing token indicating the domain in which this node operates. | |
Additional Inherited Members | |
| Public Attributes inherited from MayaFlux::Nodes::Node | |
| bool | m_fire_events_during_snapshot = false |
| Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent. | |
| std::atomic< uint32_t > | m_modulator_count { 0 } |
| Counter tracking how many other nodes are using this node as a modulator. | |
| std::atomic< NodeState > | m_state { NodeState::INACTIVE } |
| Atomic state flag tracking the node's processing status. | |
| Protected Attributes inherited from MayaFlux::Nodes::Node | |
| std::vector< NodeHook > | m_callbacks |
| Collection of standard callback functions. | |
| std::vector< std::pair< NodeHook, NodeCondition > > | m_conditional_callbacks |
| Collection of conditional callback functions with their predicates. | |
| uint32_t | m_frame_rate { 60 } |
| Frame rate for time-based processing, used for normalization. | |
| bool | m_gpu_compatible {} |
| Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU. | |
| std::vector< float > | m_gpu_data_buffer |
| GPU data buffer for context objects. | |
| double | m_last_output { 0 } |
| The most recent sample value generated by this oscillator. | |
| bool | m_networked_node {} |
| Flag indicating if the node is part of a NodeNetwork This flag is used to disable event firing when the node is managed within a NodeNetwork, preventing redundant or conflicting event notifications. | |
| uint8_t | m_node_capability { NodeCapability::SCALAR } |
| Bitmask of capabilities declared by this node. | |
| uint32_t | m_sample_rate { 48000 } |
| Sample rate for audio processing, used for normalization. | |
| bool | m_state_saved {} |
| tracks if the node's state has been saved by a snapshot operation | |
| uint32_t | m_timing_rate { m_sample_rate } |
| Current timing rate for the node, used for timing calculations (can be sample rate or frame rate) | |
Detailed Description
Combines the outputs of two nodes using a binary operation.
The BinaryOpNode implements the Node interface and represents a combination of two nodes where both nodes process the same input, and their outputs are combined using a specified binary operation (like addition or multiplication). This is the implementation behind the '+' and '*' operators for nodes.
When processed, the BinaryOpNode:
- Passes the input to both the left and right nodes
- Takes the outputs from both nodes
- Combines the outputs using the specified function
- Returns the combined result
Definition at line 118 of file NodeCombine.hpp.
