Fundamental unit of operation in buffer processing pipelines. More...

#include <BufferOperation.hpp>

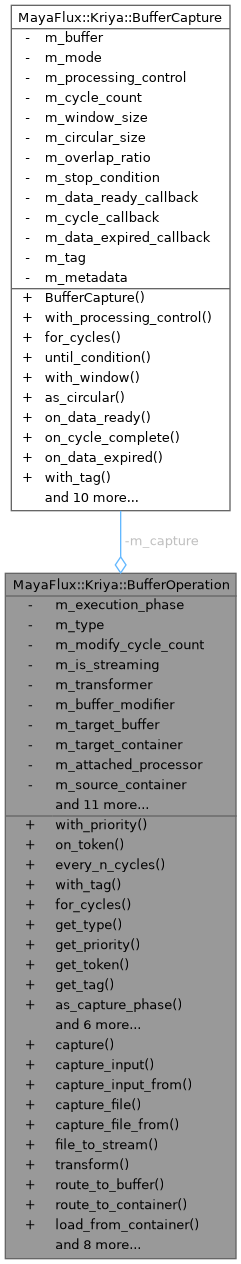

Collaboration diagram for MayaFlux::Kriya::BufferOperation:

Public Types
enum class	OpType : uint8_t { CAPTURE , TRANSFORM , ROUTE , LOAD , SYNC , CONDITION , BRANCH , DISPATCH , FUSE , MODIFY }
	Defines the fundamental operation types in the processing pipeline. More...

Public Member Functions
BufferOperation &	as_capture_phase ()
	Hint that this operation should execute in capture phase.

BufferOperation &	as_process_phase ()
	Hint that this operation should execute in process phase.

BufferOperation &	as_streaming ()
	Mark this operation as streaming (executes continuously) Useful for modify_buffer and similar stateful operations.

	BufferOperation (OpType type, BufferCapture capture)

	BufferOperation (OpType type, Buffers::ProcessingToken token)

BufferOperation &	every_n_cycles (uint32_t n)
	Set cycle interval for periodic execution.

BufferOperation &	for_cycles (uint32_t count)

ExecutionPhase	get_execution_phase () const
	Get the execution phase hint for this operation.

std::shared_ptr< Kakshya::DynamicVideoStream >	get_graphics_stream () const
	The dynamic video stream this operation writes to.

uint8_t	get_priority () const
	Getters for internal state (read-only)

const std::string &	get_tag () const
	Getters for user defined tag.

Buffers::ProcessingToken	get_token () const
	Return the operation's processing token.

OpType	get_type () const
	Getters for internal state (read-only)

bool	is_streaming () const
	Check if this operation is a streaming operation.

BufferOperation &	on_token (Buffers::ProcessingToken token)
	Set processing token for execution context.

BufferOperation &	with_priority (uint8_t priority)
	Set execution priority for scheduler ordering.

BufferOperation &	with_tag (const std::string &tag)
	Assign identification tag.

Static Public Member Functions
static BufferOperation	capture (BufferCapture capture)
	Create a capture operation using BufferCapture configuration.

static BufferOperation	capture_camera (const std::shared_ptr< IO::IOManager > &io_manager, const IO::CameraConfig &config, BufferCapture::CaptureMode mode=BufferCapture::CaptureMode::TRANSIENT, uint32_t cycle_count=1, std::optional< Portal::Graphics::RenderConfig > render=std::nullopt)
	Open and capture a camera through IOManager.

static CaptureBuilder	capture_camera_from (const std::shared_ptr< IO::IOManager > &io_manager, const IO::CameraConfig &config, std::optional< Portal::Graphics::RenderConfig > render=std::nullopt)
	Open a camera and return its capture builder.

static BufferOperation	capture_file (const std::shared_ptr< IO::IOManager > &io_manager, const std::string &filepath, IO::VideoLoadConfig config, uint32_t cycle_count=1, std::optional< Portal::Graphics::RenderConfig > render=std::nullopt)
	Capture a video file with explicit video load configuration.

static BufferOperation	capture_file (const std::shared_ptr< IO::IOManager > &io_manager, const std::string &filepath, uint32_t channel=0, uint32_t cycle_count=0)
	Create a file capture operation that reads from file and stores in stream.

static CaptureBuilder	capture_file_from (const std::shared_ptr< IO::IOManager > &io_manager, const std::string &filepath, IO::VideoLoadConfig config, std::optional< Portal::Graphics::RenderConfig > render=std::nullopt)
	Create a capture builder for a video file.

static CaptureBuilder	capture_file_from (const std::shared_ptr< IO::IOManager > &io_manager, const std::string &filepath, uint32_t channel=0)
	Create CaptureBuilder for file with fluent configuration.

static CaptureBuilder	capture_from (std::nullptr_t)

static CaptureBuilder	capture_from (std::shared_ptr< Buffers::AudioBuffer > buffer)
	Create a CaptureBuilder for fluent capture configuration.

static CaptureBuilder	capture_from (std::shared_ptr< Buffers::VKBuffer > buffer, std::optional< Portal::Graphics::RenderConfig > render=std::nullopt)

static BufferOperation	capture_input (const std::shared_ptr< Buffers::BufferManager > &buffer_manager, uint32_t input_channel, BufferCapture::CaptureMode mode=BufferCapture::CaptureMode::ACCUMULATE, uint32_t cycle_count=0)
	Create capture operation from input channel using convenience API.

static CaptureBuilder	capture_input_from (const std::shared_ptr< Buffers::BufferManager > &buffer_manager, uint32_t input_channel)
	Create CaptureBuilder for input channel with fluent configuration.

static BufferOperation	capture_to_stream (const std::shared_ptr< IO::IOManager > &io_manager, const IO::CameraConfig &config, uint64_t ring_frames=0, std::optional< Portal::Graphics::RenderConfig > live=std::nullopt, std::optional< Portal::Graphics::RenderConfig > display=std::nullopt)
	Capture a camera straight into a dynamic video stream it creates.

static BufferOperation	capture_to_stream (const std::shared_ptr< IO::IOManager > &io_manager, const std::shared_ptr< Kakshya::VideoStreamContainer > &container, uint64_t ring_frames=0, std::optional< Portal::Graphics::RenderConfig > live=std::nullopt, std::optional< Portal::Graphics::RenderConfig > display=std::nullopt)
	Capture an opened camera or loaded video into a dynamic video stream it creates.

static BufferOperation	capture_to_stream (const std::shared_ptr< IO::IOManager > &io_manager, const std::string &filepath, IO::VideoLoadConfig config, uint64_t ring_frames=0, std::optional< Portal::Graphics::RenderConfig > live=std::nullopt, std::optional< Portal::Graphics::RenderConfig > display=std::nullopt)
	Capture a video file straight into a dynamic video stream it creates.

static BufferOperation	dispatch_to (OperationFunction handler, Buffers::ProcessingToken token=Buffers::ProcessingToken::AUDIO_BACKEND)
	Create a dispatch operation for external processing.

static BufferOperation	file_to_stream (const std::shared_ptr< IO::IOManager > &io_manager, const std::string &filepath, std::shared_ptr< Kakshya::DynamicSoundStream > target_stream, uint32_t cycle_count=0)
	Create operation to route file data to DynamicSoundStream.

static BufferOperation	file_to_stream (const std::shared_ptr< IO::IOManager > &io_manager, const std::string &filepath, std::shared_ptr< Kakshya::DynamicVideoStream > target_stream, IO::VideoLoadConfig config, uint32_t cycle_count=0, std::optional< Portal::Graphics::RenderConfig > render=std::nullopt)
	Route frames from a video file to a dynamic video stream.

static BufferOperation	fuse_containers (std::vector< std::shared_ptr< Kakshya::DynamicSoundStream > > sources, TransformVectorFunction fusion_func, std::shared_ptr< Kakshya::DynamicSoundStream > target)
	Create a fusion operation for multiple DynamicSoundStream sources.

static BufferOperation	fuse_containers (std::vector< std::shared_ptr< Kakshya::DynamicVideoStream > > sources, TransformVectorFunction fusion_func, std::shared_ptr< Kakshya::DynamicVideoStream > target)
	Fuse video stream frames into a dynamic video stream.

static BufferOperation	fuse_data (std::vector< std::shared_ptr< Buffers::AudioBuffer > > sources, TransformVectorFunction fusion_func, std::shared_ptr< Buffers::AudioBuffer > target)
	Create a fusion operation for multiple AudioBuffer sources.

static BufferOperation	fuse_data (std::vector< std::shared_ptr< Buffers::VKBuffer > > sources, TransformVectorFunction fusion_func, std::shared_ptr< Buffers::VKBuffer > target)
	Fuse graphics buffer data into a graphics destination.

static bool	is_capture_phase_operation (const BufferOperation &op)

static bool	is_process_phase_operation (const BufferOperation &op)

static BufferOperation	load_from_container (std::shared_ptr< Kakshya::DynamicSoundStream > source, std::shared_ptr< Buffers::AudioBuffer > target, uint64_t start_frame=0, uint32_t length=0)
	Create a load operation from container to buffer.

static BufferOperation	load_from_container (std::shared_ptr< Kakshya::DynamicVideoStream > source, std::shared_ptr< Buffers::VKBuffer > target, uint64_t start_frame=0, uint32_t length=0)
	Load video frames from a dynamic stream into a graphics buffer.

static BufferOperation	modify_buffer (std::shared_ptr< Buffers::AudioBuffer > buffer, Buffers::AudioProcessingFunction modifier)
	Create a modify operation for direct buffer manipulation.

static BufferOperation	modify_buffer (std::shared_ptr< Buffers::VKBuffer > buffer, Buffers::GraphicsProcessingFunction modifier)
	Attach a graphics quick processor to a Vulkan buffer.

static BufferOperation	route_to_buffer (std::shared_ptr< Buffers::AudioBuffer > target)
	Create a routing operation to AudioBuffer destination.

static BufferOperation	route_to_buffer (std::shared_ptr< Buffers::TextureArrayBuffer > target, std::vector< std::shared_ptr< Core::VKImage > > images)
	Route many GPU images into the layers of a texture array buffer.

static BufferOperation	route_to_buffer (std::shared_ptr< Buffers::TextureArrayBuffer > target, uint32_t layer=0)
	Route frames into one layer of a texture array buffer.

static BufferOperation	route_to_buffer (std::shared_ptr< Buffers::VKBuffer > target)
	Route data to a graphics buffer.

static BufferOperation	route_to_container (std::shared_ptr< Kakshya::DynamicSoundStream > target, uint32_t channel=0)
	Create a routing operation to DynamicSoundStream destination.

static BufferOperation	route_to_container (std::shared_ptr< Kakshya::DynamicVideoStream > target, std::optional< Portal::Graphics::RenderConfig > render=std::nullopt)
	Append frames to a dynamic video stream.

static BufferOperation	transform (TransformationFunction transformer, Buffers::ProcessingToken token=Buffers::ProcessingToken::AUDIO_BACKEND)
	Create a transform operation with custom transformation function.

static BufferOperation	when (std::function< bool(uint32_t)> condition, Buffers::ProcessingToken token=Buffers::ProcessingToken::AUDIO_BACKEND)
	Create a conditional operation for pipeline branching.

Private Types
enum class	ExecutionPhase : uint8_t { AUTO , CAPTURE , PROCESS }

Private Attributes
std::shared_ptr< Buffers::BufferProcessor >	m_attached_processor

Buffers::AudioProcessingFunction	m_audio_buffer_modifier

BufferCapture	m_capture

std::function< bool(uint32_t)>	m_condition

uint32_t	m_cycle_interval = 1

OperationFunction	m_dispatch_handler

bool	m_display_attached {}

ExecutionPhase	m_execution_phase { ExecutionPhase::AUTO }

TransformVectorFunction	m_fusion_function

Buffers::GraphicsProcessingFunction	m_graphics_buffer_modifier

bool	m_is_streaming {}

uint32_t	m_load_length {}

uint32_t	m_modify_cycle_count {}

uint8_t	m_priority = 128

std::optional< Portal::Graphics::RenderConfig >	m_render

std::vector< std::shared_ptr< Buffers::AudioBuffer > >	m_source_audio_buffers

std::shared_ptr< Kakshya::DynamicSoundStream >	m_source_audio_stream

std::vector< std::shared_ptr< Kakshya::DynamicSoundStream > >	m_source_audio_streams

std::shared_ptr< Buffers::VKBuffer >	m_source_graphics_buffer

std::vector< std::shared_ptr< Buffers::VKBuffer > >	m_source_graphics_buffers

std::shared_ptr< Kakshya::VideoStreamContainer >	m_source_graphics_stream

std::vector< std::shared_ptr< Kakshya::DynamicVideoStream > >	m_source_graphics_streams

std::vector< std::shared_ptr< Core::VKImage > >	m_source_images

uint64_t	m_start_frame {}

std::string	m_tag

std::shared_ptr< Buffers::AudioBuffer >	m_target_audio_buffer

uint32_t	m_target_audio_channel {}

std::shared_ptr< Kakshya::DynamicSoundStream >	m_target_audio_stream

std::shared_ptr< Buffers::VKBuffer >	m_target_graphics_buffer

std::shared_ptr< Kakshya::DynamicVideoStream >	m_target_graphics_stream

uint32_t	m_target_layer {}

Buffers::ProcessingToken	m_token { Buffers::ProcessingToken::AUDIO_BACKEND }

TransformationFunction	m_transformer

OpType	m_type

Friends
class	BufferPipeline

Detailed Description

Fundamental unit of operation in buffer processing pipelines.

BufferOperation encapsulates discrete processing steps that can be composed into complex data flow pipelines. Each operation represents a specific action such as capturing data, transforming it, routing to destinations, or applying conditional logic. Operations are designed to be chainable and support sophisticated scheduling and priority management.

Operation Types:

CAPTURE: Extract data from a buffer using configurable capture strategies
TRANSFORM: Apply functional transformations to data variants
ROUTE: Direct data to audio or graphics buffers and streams
LOAD: Read data from containers into buffers with position control
SYNC: Coordinate timing and synchronization across pipeline stages
CONDITION: Apply conditional logic and branching to data flow
DISPATCH: Send data to external handlers and callback systems
FUSE: Combine multiple data sources using custom fusion functions

Example Usage:

// Capture audio with windowed analysis
auto capture_op = BufferOperation::capture_from(input_buffer)
    .with_window(512, 0.5f)
    .on_data_ready([](const auto& data, uint32_t cycle) {
        analyze_spectrum(data);
    });

// Transform and route to output
auto pipeline = BufferPipeline()
    >> capture_op
    >> BufferOperation::transform([](const auto& data, uint32_t cycle) {
        return apply_reverb(data);
    }, Buffers::ProcessingToken::AUDIO_BACKEND)
    >> BufferOperation::route_to_container(output_stream);

Definition at line 147 of file BufferOperation.hpp.
