Flexible data capture interface for buffer-based processing pipelines. More...

#include <Capture.hpp>

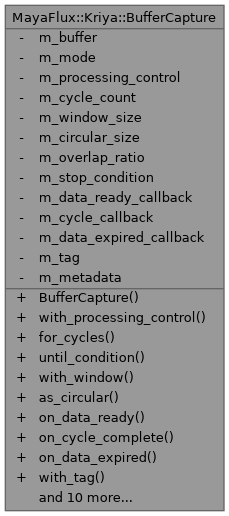

Collaboration diagram for MayaFlux::Kriya::BufferCapture:

Public Types
enum class	CaptureMode : uint8_t { TRANSIENT , ACCUMULATE , TRIGGERED , WINDOWED , CIRCULAR }
	Defines the data capture and retention strategy. More...

enum class	ProcessingControl : uint8_t { AUTOMATIC , ON_CAPTURE , MANUAL }
	Controls how and when data processing occurs. More...

Public Member Functions
BufferCapture &	as_circular (uint32_t size)
	Enable circular buffer mode with fixed size.

	BufferCapture ()=default

	BufferCapture (std::nullptr_t)

	BufferCapture (std::shared_ptr< Buffers::AudioBuffer > buffer, CaptureMode mode=CaptureMode::TRANSIENT, uint32_t cycle_count=1)
	Construct a BufferCapture with specified mode and parameters.

	BufferCapture (std::shared_ptr< Buffers::VKBuffer > buffer, CaptureMode mode=CaptureMode::TRANSIENT, uint32_t cycle_count=1)

BufferCapture &	for_cycles (uint32_t count)
	Set the number of times to execute this capture operation.

std::shared_ptr< Buffers::AudioBuffer >	get_audio_buffer () const
	Return the configured audio source.

uint32_t	get_circular_size () const

uint32_t	get_cycle_count () const

std::shared_ptr< Buffers::VKBuffer >	get_graphics_buffer () const
	Return the configured graphics source.

CaptureMode	get_mode () const

float	get_overlap_ratio () const

ProcessingControl	get_processing_control () const

std::shared_ptr< Buffers::Buffer >	get_source_buffer () const
	Return the configured source buffer.

const std::string &	get_tag () const

uint32_t	get_window_size () const

BufferCapture &	on_cycle_complete (std::function< void(uint32_t)> callback)
	Set callback for when a capture cycle completes.

BufferCapture &	on_data_expired (std::function< void(const Kakshya::DataVariant &, uint32_t)> callback)
	Set callback for when captured data expires.

BufferCapture &	on_data_ready (OperationFunction callback)
	Set callback for when captured data is ready.

void	set_processing_control (ProcessingControl control)

BufferCapture &	until_condition (std::function< bool()> predicate)
	Set a condition that stops capture when met.

BufferCapture &	with_metadata (const std::string &key, const std::string &value)
	Add metadata key-value pair.

BufferCapture &	with_processing_control (ProcessingControl control)
	Set processing control strategy.

BufferCapture &	with_tag (const std::string &tag)
	Assign a tag for identification and organization.

BufferCapture &	with_window (uint32_t window_size, float overlap_ratio=0.0F)
	Configure windowed capture with overlap.

Private Attributes
std::shared_ptr< Buffers::AudioBuffer >	m_audio_buffer

uint32_t	m_circular_size {}

std::function< void(uint32_t)>	m_cycle_callback

uint32_t	m_cycle_count { 1 }

std::function< void(const Kakshya::DataVariant &, uint32_t)>	m_data_expired_callback

OperationFunction	m_data_ready_callback

std::shared_ptr< Buffers::VKBuffer >	m_graphics_buffer

std::unordered_map< std::string, std::string >	m_metadata

CaptureMode	m_mode { CaptureMode::TRANSIENT }

float	m_overlap_ratio {}

ProcessingControl	m_processing_control = ProcessingControl::AUTOMATIC

std::function< bool()>	m_stop_condition

std::string	m_tag

uint32_t	m_window_size {}

Friends
class	BufferOperation

class	BufferPipeline

Detailed Description

Flexible data capture interface for buffer-based processing pipelines.

BufferCapture provides sophisticated data capture capabilities within the Kriya processing system, enabling various capture modes and lifecycle management for buffer data. It supports transient, accumulative, windowed, and circular capture patterns for different real-time processing scenarios.

Capture Modes:

TRANSIENT: Single-cycle capture with automatic expiration (default)
ACCUMULATE: Multi-cycle accumulation in persistent container
TRIGGERED: Conditional capture based on predicates
WINDOWED: Rolling window capture with configurable overlap
CIRCULAR: Fixed-size circular buffer with overwrite behavior

Key Features:

Multiple capture strategies for different use cases
Callback system for data lifecycle events
Metadata and tagging support for organization
Integration with BufferPipeline and BufferOperation
Scheduler timing and synchronization

Use Cases:

Real-time audio analysis and feature extraction
Frame capture from graphics buffers
Streaming data collection for machine learning
Circular delay lines and feedback systems
Windowed processing for spectral analysis
Event-driven data capture and recording

See also: BufferOperation For pipeline integration; BufferPipeline For execution context; CaptureBuilder For fluent construction

Definition at line 55 of file Capture.hpp.
