Represents a discrete segment of audio data with caching capabilities. More...

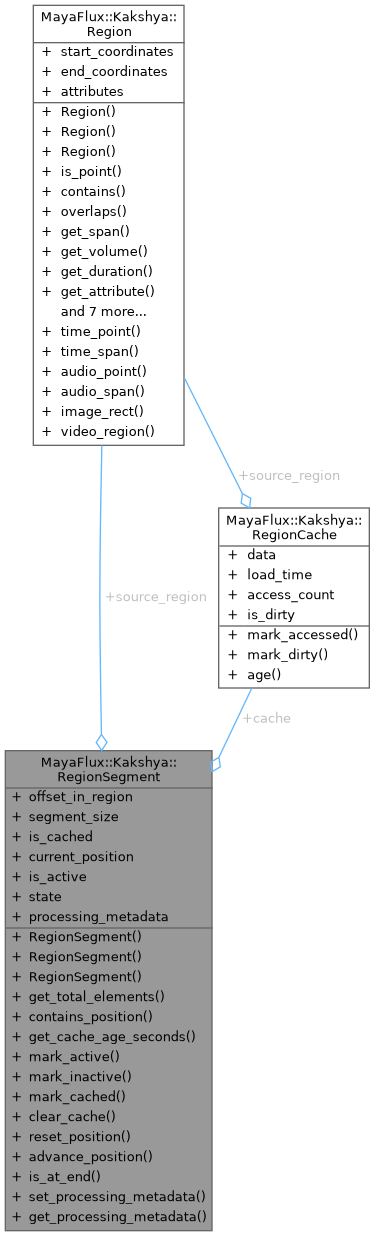

Collaboration diagram for MayaFlux::Kakshya::RegionSegment:

Public Member Functions
	RegionSegment ()=default

	RegionSegment (const Region &region)
	Construct a segment from a region (full region).

	RegionSegment (Region region, const std::vector< uint64_t > &offset, const std::vector< uint64_t > &size)
	Construct a segment from a region with offset and size.

uint64_t	get_total_elements () const
	Get the total number of elements in the segment.

bool	contains_position (const std::vector< uint64_t > &pos) const
	Check if a position is within this segment.

double	get_cache_age_seconds () const
	Get the age of the cache in seconds.

void	mark_active ()

void	mark_inactive ()

void	mark_cached (const std::vector< DataVariant > &data)
	Mark this segment as cached and store the data.

void	clear_cache ()
	Clear the cache for this segment.

void	reset_position ()
	Reset the current position within the segment.

bool	advance_position (uint64_t steps=1, uint32_t dimension=0)
	Advance the current position within the segment.

bool	is_at_end () const
	Check if the current position is at the end of the segment.

void	set_processing_metadata (const std::string &key, std::any value)
	Set processing metadata for this segment.

template<typename T >
std::optional< T >	get_processing_metadata (const std::string &key) const
	Get processing metadata for this segment.

Public Attributes
Region	source_region
	Associated region.

std::vector< uint64_t >	offset_in_region
	Offset within the source region.

std::vector< uint64_t >	segment_size
	Size in each dimension.

RegionCache	cache
	Multi-channel cached audio data.

bool	is_cached = false
	Flag indicating if data is cached.

std::vector< uint64_t >	current_position { 0 }
	Current position within segment.

bool	is_active = false

RegionState	state = RegionState::IDLE

std::unordered_map< std::string, std::any >	processing_metadata
	Arbitrary processing metadata.

Detailed Description

Represents a discrete segment of audio data with caching capabilities.

Defines a time-bounded segment of audio that can be cached for efficient playback and manipulation in non-linear processing contexts.

Definition at line 41 of file RegionSegment.hpp.

The documentation for this struct was generated from the following file:
