MayaFlux::Kakshya::RegionGroup Struct Reference

Organizes related signal regions into a categorized collection. More...

#include <RegionGroup.hpp>

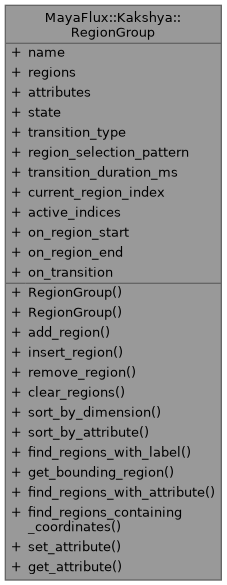

Collaboration diagram for MayaFlux::Kakshya::RegionGroup:

Public Member Functions
	RegionGroup ()=default
	RegionGroup (std::string group_name, std::vector< Region > regions={}, std::unordered_map< std::string, std::any > attrs={})
	Construct a region group.
void	add_region (const Region &region)
void	insert_region (size_t index, const Region &region)
	Insert a region at a specific index.
void	remove_region (size_t index)
	Remove a region by index.
void	clear_regions ()
	Remove all regions from the group.
void	sort_by_dimension (size_t dimension_index)
	Sort region by a specific dimension.
void	sort_by_attribute (const std::string &attr_name)
	Sort regions by a specific attribute (numeric).
std::vector< Region >	find_regions_with_label (const std::string &label) const
	Find all regions with a given label.
Region	get_bounding_region () const
	Get the bounding region that contains all regions in the group.
std::vector< Region >	find_regions_with_attribute (const std::string &key, const std::any &value) const
	Find all regions with a specific attribute value.
std::vector< Region >	find_regions_containing_coordinates (const std::vector< uint64_t > &coordinates) const
	Find all regions containing the given coordinates.
template<typename T >
void	set_attribute (const std::string &key, T value)
	Set a group-level attribute.
template<typename T >
std::optional< T >	get_attribute (const std::string &key) const
	Get a group-level attribute.

Public Attributes
std::string	name
	Descriptive name of the group.
std::vector< Region >	regions
	Collection of regions belonging to this group.
std::unordered_map< std::string, std::any >	attributes
	Flexible key-value store for group-specific attributes.
RegionState	state = RegionState::IDLE
RegionTransition	transition_type = RegionTransition::IMMEDIATE
RegionSelectionPattern	region_selection_pattern = RegionSelectionPattern::SEQUENTIAL
double	transition_duration_ms = 0.0
size_t	current_region_index = 0
std::vector< size_t >	active_indices
std::function< void(const Region &)>	on_region_start
std::function< void(const Region &)>	on_region_end
std::function< void(const Region &, const Region &)>	on_transition

Detailed Description

Organizes related signal regions into a categorized collection.

RegionGroups provide a way to categorize and organize related regions within signal data based on algorithmic or analytical criteria. Each group has a name and can contain multiple Regions, as well as group-level attributes that apply to the entire collection.

Common DSP-specific applications include:

• Grouping frequency-domain features (e.g., "formants", "resonances", "harmonics")
• Categorizing time-domain events (e.g., "transients", "steady_states", "decays")
• Organizing analysis results (e.g., "zero_crossings", "spectral_centroids")
• Defining processing boundaries (e.g., "convolution_segments", "filter_regions")
• Storing algorithmic detection results (e.g., "noise_gates", "compression_thresholds")

This data-driven approach enables sophisticated signal processing workflows where algorithms can operate on categorized signal segments without requiring predefined musical or content-specific structures.

Definition at line 27 of file RegionGroup.hpp.

---

The documentation for this struct was generated from the following file:

• RegionGroup.hpp
