MayaFlux::Kakshya::Region Struct Reference
Represents a point or span in N-dimensional space. More...
#include <Region.hpp>

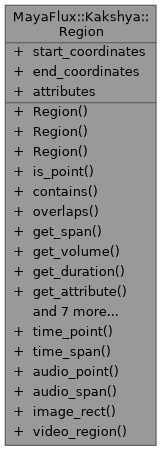

Collaboration diagram for MayaFlux::Kakshya::Region:
Public Member Functions | |
| Region ()=default | |
| Region (const std::vector< uint64_t > &coordinates, std::unordered_map< std::string, std::any > attributes={}) | |
| Construct a point-like region (single coordinate). | |
| Region (std::vector< uint64_t > start, std::vector< uint64_t > end, std::unordered_map< std::string, std::any > attributes={}) | |
| Construct a span-like region (start and end coordinates). | |
| bool | is_point () const |
| Check if this region is a single point (start == end). | |
| bool | contains (const std::vector< uint64_t > &coordinates) const |
| Check if the given coordinates are contained within this region. | |
| bool | overlaps (const Region &other) const |
| Check if this region overlaps with another region. | |
| uint64_t | get_span (uint32_t dimension_index=0) const |
| Get the span (length) of the region along a dimension. | |
| uint64_t | get_volume () const |
| Get the total volume (number of elements) in the region. | |
| uint64_t | get_duration (uint32_t dimension_index=0) const |
| Get the duration (span) along a specific dimension. | |
| template<typename T > | |
| std::optional< T > | get_attribute (const std::string &key) const |
| Get an attribute value by key, with type conversion support. | |
| void | set_attribute (const std::string &key, std::any value) |
| Set an attribute value by key. | |
| std::string | get_label () const |
| Get the label attribute (if present). | |
| void | set_label (const std::string &label) |
| Set the label attribute. | |
| Region | translate (const std::vector< int64_t > &offset) const |
| Translate the region by an offset vector. | |
| Region | scale (const std::vector< double > &factors) const |
| Scale the region about its center by the given factors. | |
| bool | operator== (const Region &other) const |
| Equality comparison for Regions. | |
| bool | operator!= (const Region &other) const |
| Inequality comparison for Regions. | |
Static Public Member Functions | |
| static Region | time_point (uint64_t frame, const std::string &label="", const std::any &extra_data={}) |
| Create a Region representing a single time point (e.g., a frame or sample). | |
| static Region | time_span (uint64_t start_frame, uint64_t end_frame, const std::string &label="", const std::any &extra_data={}) |
| Create a Region representing a time span (e.g., a segment of frames). | |
| static Region | audio_point (uint64_t frame, uint32_t channel, const std::string &label="") |
| Create a Region for a single audio sample/channel location. | |
| static Region | audio_span (uint64_t start_frame, uint64_t end_frame, uint32_t start_channel, uint32_t end_channel, const std::string &label="") |
| Create a Region representing a span in audio (frames and channels). | |
| static Region | image_rect (uint64_t x1, uint64_t y1, uint64_t x2, uint64_t y2, const std::string &label="") |
| Create a Region representing a rectangular region in an image. | |
| static Region | video_region (uint64_t start_frame, uint64_t end_frame, uint64_t x1, uint64_t y1, uint64_t x2, uint64_t y2, const std::string &label="") |
| Create a Region representing a region in a video (frames and spatial rectangle). | |
Public Attributes | |
| std::vector< uint64_t > | start_coordinates |
| Starting frame index (inclusive) | |
| std::vector< uint64_t > | end_coordinates |
| Ending frame index (inclusive) | |
| std::unordered_map< std::string, std::any > | attributes |
| Flexible key-value store for region-specific attributes. | |
Detailed Description
Represents a point or span in N-dimensional space.
Regions represent precise locations or segments within signal data, defined by start and end frame positions. Each region can have additional attributes stored in a flexible key-value map, allowing for rich metadata association with each point.
Common DSP-specific uses include:
- Marking transients and onset detection points
- Identifying spectral features or frequency domain events
- Defining zero-crossing boundaries for phase analysis
- Marking signal transformation points (e.g., filter application boundaries)
- Storing analysis results like RMS peaks, harmonic content points, or noise floors
The flexible attribute system allows for storing any computed values or metadata associated with specific signal locations, enabling advanced signal processing workflows and algorithmic decision-making.
Definition at line 67 of file Region.hpp.
The documentation for this struct was generated from the following file:
