StagingUtils.hpp File Reference

#include "MayaFlux/Buffers/VKBuffer.hpp"
#include "MayaFlux/Kakshya/NDData/DataAccess.hpp"

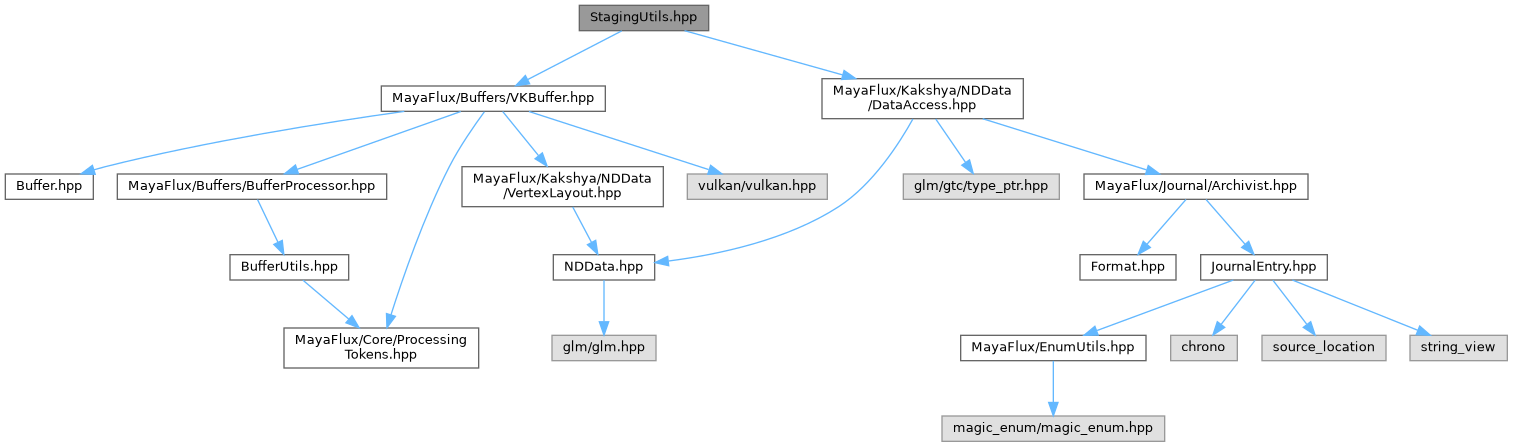

Include dependency graph for StagingUtils.hpp:

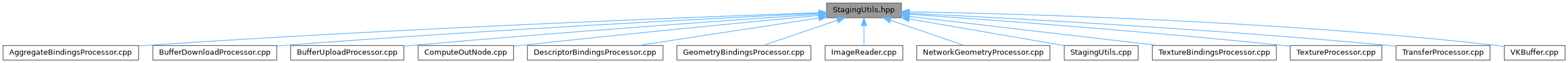

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	MayaFlux
	Main namespace for the Maya Flux audio engine.
namespace	MayaFlux::Buffers

Typedefs
using	MayaFlux::Buffers::TransferHandle = std::shared_ptr< void >
	Opaque handle to an in-flight transfer.

Functions
std::shared_ptr< VKBuffer >	MayaFlux::Buffers::create_image_staging_buffer (size_t size)
	Allocate a persistent host-visible staging buffer sized for repeated streaming uploads to an image of size bytes.
std::shared_ptr< VKBuffer >	MayaFlux::Buffers::create_staging_buffer (size_t size)
	Create staging buffer for transfers.
std::span< const float >	MayaFlux::Buffers::download_and_normalise (const std::shared_ptr< Core::VKImage > &image, std::vector< uint8_t > &raw_staging, std::vector< float > &work, const std::shared_ptr< VKBuffer > &gpu_staging)
	Download a VKImage to CPU and return a normalised float span.
void	MayaFlux::Buffers::download_audio_from_gpu (const std::shared_ptr< VKBuffer > &gpu_buffer, const std::shared_ptr< AudioBuffer > &audio_buffer, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Download GPU buffer to AudioBuffer (expects double precision)
void	MayaFlux::Buffers::download_back_buffer (const VKBufferResources::GenerationSlot &slot, void *data, size_t size, std::shared_ptr< VKBuffer > &staging)
	Download a raw back_buffers slot to host memory.
void	MayaFlux::Buffers::download_device_local (const std::shared_ptr< VKBuffer > &source, const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging_buffer)
	Download data from a device-local buffer using a staging buffer.
template<typename T >
void	MayaFlux::Buffers::download_from_gpu (const std::shared_ptr< VKBuffer > &source, std::span< T > data, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Download from GPU buffer to typed span.
template<typename T >
void	MayaFlux::Buffers::download_from_gpu (const std::shared_ptr< VKBuffer > &source, std::vector< T > &data, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Download from GPU buffer to vector.
void	MayaFlux::Buffers::download_from_gpu (const std::shared_ptr< VKBuffer > &source, void *data, size_t size, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Download from GPU buffer to raw data (auto-detects host-visible vs device-local)
void	MayaFlux::Buffers::download_from_gpu_async (const std::shared_ptr< VKBuffer > &source, void *data, size_t size, std::shared_ptr< VKBuffer > &staging)
	Download from a device-local GPU buffer without stalling the graphics queue.
void	MayaFlux::Buffers::download_host_visible (const std::shared_ptr< VKBuffer > &source, const std::shared_ptr< VKBuffer > &target)
	Download data from a host-visible buffer.
template<typename T >
Kakshya::DataAccess	MayaFlux::Buffers::download_to_view (const std::shared_ptr< VKBuffer > &source, Kakshya::DataVariant &target_variant, const std::vector< Kakshya::DataDimension > &dimensions, Kakshya::DataModality modality, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Download GPU buffer to DataAccess-compatible format (precision-preserving)
void	MayaFlux::Buffers::ensure_gpu_capacity (const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging, size_t required, float growth_factor=k_buffer_growth_factor)
	Grow a GPU buffer (and its paired staging buffer) to fit required bytes.
bool	MayaFlux::Buffers::is_device_local (const std::shared_ptr< VKBuffer > &buffer)
	Check if buffer is device-local (staging needed)
template<GpuImageSource T>
std::shared_ptr< Core::VKImage >	MayaFlux::Buffers::resolve_gpu_image (const T &buffer)
	Resolve the GPU-resident image from any GpuImageSource buffer.
void	MayaFlux::Buffers::resolve_transfer (TransferHandle &handle)
	Wait for a transfer and release its resources.
void	MayaFlux::Buffers::upload_audio_to_gpu (const std::shared_ptr< AudioBuffer > &audio_buffer, const std::shared_ptr< VKBuffer > &gpu_buffer, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Upload AudioBuffer to GPU (always double precision)
void	MayaFlux::Buffers::upload_back_buffer (const VKBufferResources::GenerationSlot &slot, const void *data, size_t size, std::shared_ptr< VKBuffer > &staging)
	Upload host memory into a raw back_buffers slot.
TransferHandle	MayaFlux::Buffers::upload_back_buffer_async (const VKBufferResources::GenerationSlot &slot, const void *data, size_t size, std::shared_ptr< VKBuffer > &staging)
	Upload to a back_buffers slot without waiting for completion.
void	MayaFlux::Buffers::upload_device_local (const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging_buffer, const Kakshya::DataVariant &data, size_t dst_offset=0)
	Upload data to a device-local buffer using a staging buffer.
template<typename T >
void	MayaFlux::Buffers::upload_from_view (const Kakshya::DataAccess &accessor, const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Upload data from DataAccess view to GPU buffer (precision-preserving)
void	MayaFlux::Buffers::upload_host_visible (const std::shared_ptr< VKBuffer > &target, const Kakshya::DataVariant &data, size_t dst_offset=0)
	Upload data to a host-visible buffer.
void	MayaFlux::Buffers::upload_resizing (const void *data, size_t size, const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging, float growth_factor=1.5F)
	Upload size bytes to target, growing both buffers first if needed.
template<typename T > requires GlmType<T>
void	MayaFlux::Buffers::upload_structured_view (const Kakshya::DataAccess &accessor, const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Upload structured data with GLM double-precision types.
template<typename T >
void	MayaFlux::Buffers::upload_to_gpu (const std::vector< T > &data, const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Upload vector to GPU buffer.
void	MayaFlux::Buffers::upload_to_gpu (const void *data, size_t size, const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging=nullptr, size_t dst_offset=0)
	Upload raw data to GPU buffer (auto-detects host-visible vs device-local)
template<typename T >
void	MayaFlux::Buffers::upload_to_gpu (std::span< const T > data, const std::shared_ptr< VKBuffer > &target, const std::shared_ptr< VKBuffer > &staging=nullptr)
	Upload typed data to GPU buffer.

Variables
constexpr float	MayaFlux::Buffers::k_buffer_growth_factor = 1.5F
