MayaFlux::Yantra::IO< T > Struct Template Reference

Input/Output container for computation pipeline data flow with structure preservation. More...

#include <DataIO.hpp>

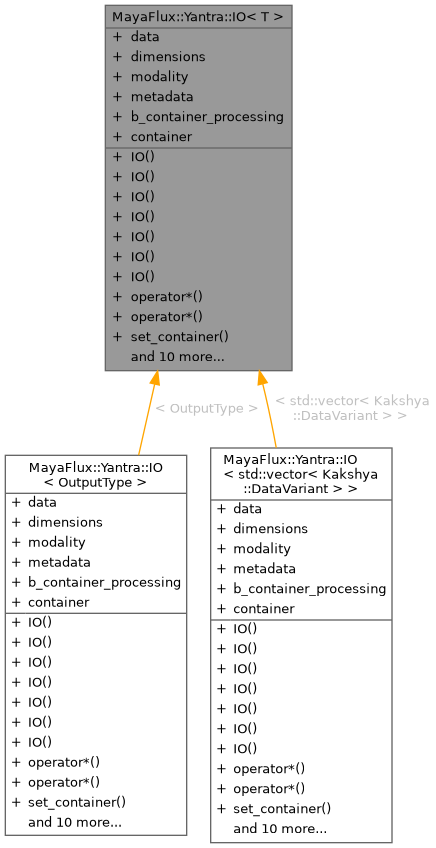

Inheritance diagram for MayaFlux::Yantra::IO< T >:

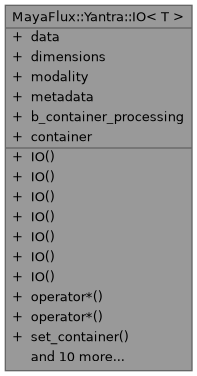

Collaboration diagram for MayaFlux::Yantra::IO< T >:

Public Member Functions
	IO ()=default
	Default constructor.
	IO (const T &d)
	Construct from data by copy with automatic structure inference.
	IO (const T &d, const std::shared_ptr< Kakshya::SignalSourceContainer > &cont)
	Construct from data by copy with container reference and automatic structure inference.
	IO (T &&d)
	Construct from data by move with automatic structure inference.
	IO (T &&d, const std::shared_ptr< Kakshya::SignalSourceContainer > &cont)
	Construct from data by move with automatic structure inference.
	IO (T &&d, std::vector< Kakshya::DataDimension > dims, Kakshya::DataModality mod)
	Construct with move and explicit structure information.
	IO (T &&d, const std::shared_ptr< Kakshya::SignalSourceContainer > container, std::vector< Kakshya::DataDimension > dims, Kakshya::DataModality mod)
	Construct with move and explicit structure information.
const T &	operator* () const
	Access underlying data (const)
T &	operator* ()
	Access underlying data (mutable)
void	set_container (const std::shared_ptr< Kakshya::SignalSourceContainer > &cont)
	Set or update the associated container reference.
bool	has_container () const
	Check if a container reference is associated.
bool	needs_processig () const
	Check if processing is needed (for container types)
void	set_container_processing (bool val)
	Set whether processing is needed (for container types)
bool	has_modality (Kakshya::DataModality target_modality) const
	Check if data has specific modality.
uint64_t	get_total_elements () const
	Get total number of elements across all dimensions.
int	find_dimension_by_role (Kakshya::DataDimension::Role role) const
	Find dimension by semantic role.
bool	is_suitable_for_processing (Kakshya::DataModality required_modality, size_t min_dimensions=1) const
	Check if data is suitable for a specific type of processing.
void	update_structure (std::vector< Kakshya::DataDimension > new_dims, Kakshya::DataModality new_modality)
	Update structure information (use carefully!)
template<typename ValueType >
void	set_metadata (const std::string &key, ValueType &&value)
	Add or update metadata entry.
template<typename ValueType >
std::optional< ValueType >	get_metadata (const std::string &key) const
	Get metadata entry with type safety.

Public Attributes
T	data
	The actual computation data.
std::vector< Kakshya::DataDimension >	dimensions
	Data dimensional structure.
Kakshya::DataModality	modality {}
	Data modality (audio, image, spectral, etc.)
std::unordered_map< std::string, std::any >	metadata
	Associated metadata.
bool	b_container_processing {}
std::optional< std::shared_ptr< Kakshya::SignalSourceContainer > >	container
	Optional reference to container, required for regions.

Detailed Description

template<ComputeData T = std::vector<Kakshya::DataVariant>>
struct MayaFlux::Yantra::IO< T >

Input/Output container for computation pipeline data flow with structure preservation.

Template Parameters

T	Data type that satisfies ComputeData concept

Encapsulates data with associated structure information and metadata for pipeline operations. The structure (dimensions and modality) is automatically inferred at construction time, ensuring that all data flowing through operations carries its dimensional context.

Key Features:

• Automatic structure inference from data type and content
• Dimension and modality preservation through pipeline operations
• Flexible metadata storage for operation-specific information
• Move semantics for efficiency with large data

Definition at line 24 of file DataIO.hpp.

---

The documentation for this struct was generated from the following file:

• DataIO.hpp
