MayaFlux::Vruta::graphics_promise Struct Reference

Coroutine promise type for graphics processing tasks with frame-accurate timing. More...

#include <Promise.hpp>

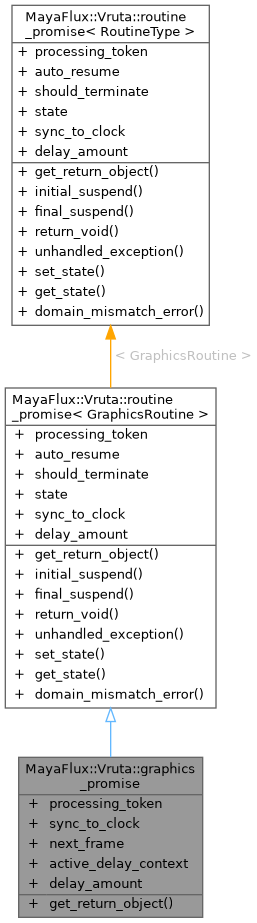

Inheritance diagram for MayaFlux::Vruta::graphics_promise:

Collaboration diagram for MayaFlux::Vruta::graphics_promise:

Public Member Functions
GraphicsRoutine	get_return_object ()
	Creates the GraphicsRoutine object returned to the caller.
Public Member Functions inherited from MayaFlux::Vruta::routine_promise< GraphicsRoutine >
GraphicsRoutine	get_return_object ()
std::suspend_never	initial_suspend ()
	Determines whether the coroutine suspends immediately upon creation.
std::suspend_always	final_suspend () noexcept
	Determines whether the coroutine suspends before destruction.
void	return_void ()
	Handles the coroutine's void return.
void	unhandled_exception ()
	Handles exceptions thrown from within the coroutine.
void	set_state (const std::string &key, T value)
	Stores a value in the state dictionary.
T *	get_state (const std::string &key)
	Retrieves a value from the state dictionary.
void	domain_mismatch_error (const std::string &awaiter_name, const std::string &suggestion)

Public Attributes
ProcessingToken	processing_token { ProcessingToken::FRAME_ACCURATE }
	Processing token indicating frame-accurate scheduling.
bool	sync_to_clock = true
	Whether this routine should synchronize with FrameClock.
uint64_t	next_frame = 0
	The frame position when this coroutine should next execute.
DelayContext	active_delay_context = DelayContext::NONE
	The active delay context for this coroutine.
uint64_t	delay_amount = 0
	The amount of delay units for incremental delays.
Public Attributes inherited from MayaFlux::Vruta::routine_promise< GraphicsRoutine >
const ProcessingToken	processing_token
	Token indicating how this coroutine should be processed.
bool	auto_resume
	Flag indicating whether the coroutine should be automatically resumed.
bool	should_terminate
	Flag indicating whether the coroutine should be terminated.
std::unordered_map< std::string, std::any >	state
	Dictionary for storing arbitrary state data.
const bool	sync_to_clock
	Flag indicating whether the coroutine should synchronize with the audio clock.
uint64_t	delay_amount
	Amount of delay requested by the coroutine.

Detailed Description

Coroutine promise type for graphics processing tasks with frame-accurate timing.

graphics_promise is the frame-domain equivalent of audio_promise. It manages the state and lifecycle of GraphicsRoutine coroutines, providing frame-accurate timing and scheduling for visual processing tasks.

Key Architectural Notes:

• Frame timing is managed by FrameClock (self-driven wall-clock based)
• Unlike audio_promise (driven by RTAudio callbacks), graphics_promise observes the FrameClock which ticks independently in the graphics thread loop
• The promise doesn't care HOW timing advances, only that it receives tick updates
• Mirrors audio_promise architecture but for the visual/frame domain

Timing Flow:

1. Graphics thread loop: m_frame_clock->tick() (self-driven)
2. GraphicsSubsystem::process() called
3. Scheduler::process_frame_coroutines_impl() checks routines
4. If current_frame >= next_frame, routine->try_resume(current_frame)
5. Routine updates next_frame based on FrameDelay amount

Definition at line 259 of file Promise.hpp.

---

The documentation for this struct was generated from the following files:

• Promise.hpp
• Routine.cpp
