Frame-accurate timing system for visual processing domain. More...

#include <Clock.hpp>

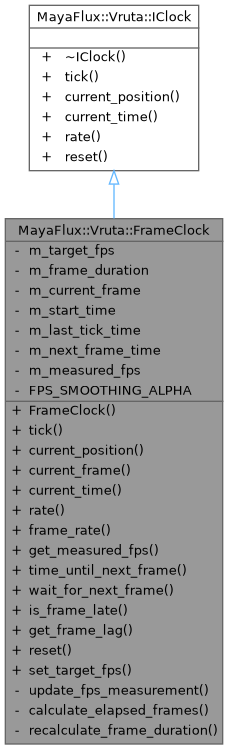

Inheritance diagram for MayaFlux::Vruta::FrameClock:

Collaboration diagram for MayaFlux::Vruta::FrameClock:

Public Member Functions
	FrameClock (uint32_t target_fps=60)
	Constructs a FrameClock with target frame rate.

void	tick (uint64_t forced_frames=0) override
	Advance clock by computing elapsed frames since last tick.

uint64_t	current_position () const override
	Get current frame position (thread-safe read)

uint64_t	current_frame () const
	Get current frame number (alias for current_position)

double	current_time () const override
	Convert current frame to seconds.

uint32_t	rate () const override
	Get target frame rate.

uint32_t	frame_rate () const

double	get_measured_fps () const
	Get actual measured FPS (exponentially smoothed)

std::chrono::nanoseconds	time_until_next_frame () const
	Get time until next frame should occur.

void	wait_for_next_frame ()
	Wait (sleep) until next frame should occur.

bool	is_frame_late () const
	Check if we're running behind target frame rate.

uint64_t	get_frame_lag () const
	Get how many frames behind we are (if any)

void	reset () override
	Reset clock to initial state.

void	set_target_fps (uint32_t new_fps)
	Set new target frame rate (runtime adjustment)

Public Member Functions inherited from MayaFlux::Vruta::IClock
virtual	~IClock ()=default

Private Member Functions
void	update_fps_measurement (std::chrono::steady_clock::time_point now)
	Update measured FPS based on tick interval Called internally during tick()

uint64_t	calculate_elapsed_frames (std::chrono::steady_clock::time_point now) const
	Calculate frames elapsed based on wall-clock time.

void	recalculate_frame_duration ()
	Recalculate frame duration when target FPS changes.

Private Attributes
uint32_t	m_target_fps

std::chrono::nanoseconds	m_frame_duration

std::atomic< uint64_t >	m_current_frame

std::chrono::steady_clock::time_point	m_start_time

std::chrono::steady_clock::time_point	m_last_tick_time

std::chrono::steady_clock::time_point	m_next_frame_time

std::atomic< double >	m_measured_fps

Static Private Attributes
static constexpr double	FPS_SMOOTHING_ALPHA = 0.1

Detailed Description

Frame-accurate timing system for visual processing domain.

Self-driven clock: Manages its own timing and advances autonomously. Unlike SampleClock which is driven by external audio callbacks, FrameClock actively manages frame timing and vsync coordination.

Threading Model:

tick() is called from graphics thread ONLY
current_position() can be read from any thread (atomic)
Scheduler reads clock state but doesn't control advancement

Timing Characteristics:

Advances based on wall-clock time, not external callbacks
Handles frame pacing and vsync timing
Measures actual FPS for diagnostics
Supports variable frame rates and adaptive timing

Definition at line 182 of file Clock.hpp.
