grouped()

DataDimension MayaFlux::Kakshya::DataDimension::grouped ( std::string  name, uint64_t  element_count, uint8_t  components_per_element, Role  role = Role::CUSTOM  )

static

Create dimension with component grouping.

Parameters

name	Dimension name
element_count	Number of elements (not components)
components_per_element	Components per element (e.g., 3 for vec3)
role	Semantic role

Definition at line 69 of file NDData.cpp.

{
    DataDimension dim { std::move(name), element_count, 1, role };
    dim.grouping = ComponentGroup { components_per_element, 0 };
    return dim;
}

References grouping, name, and role.

Referenced by MayaFlux::Kakshya::detect_data_dimensions(), MayaFlux::Kakshya::detect_data_dimensions(), texture_coords(), vertex_colors(), vertex_normals(), and vertex_positions().

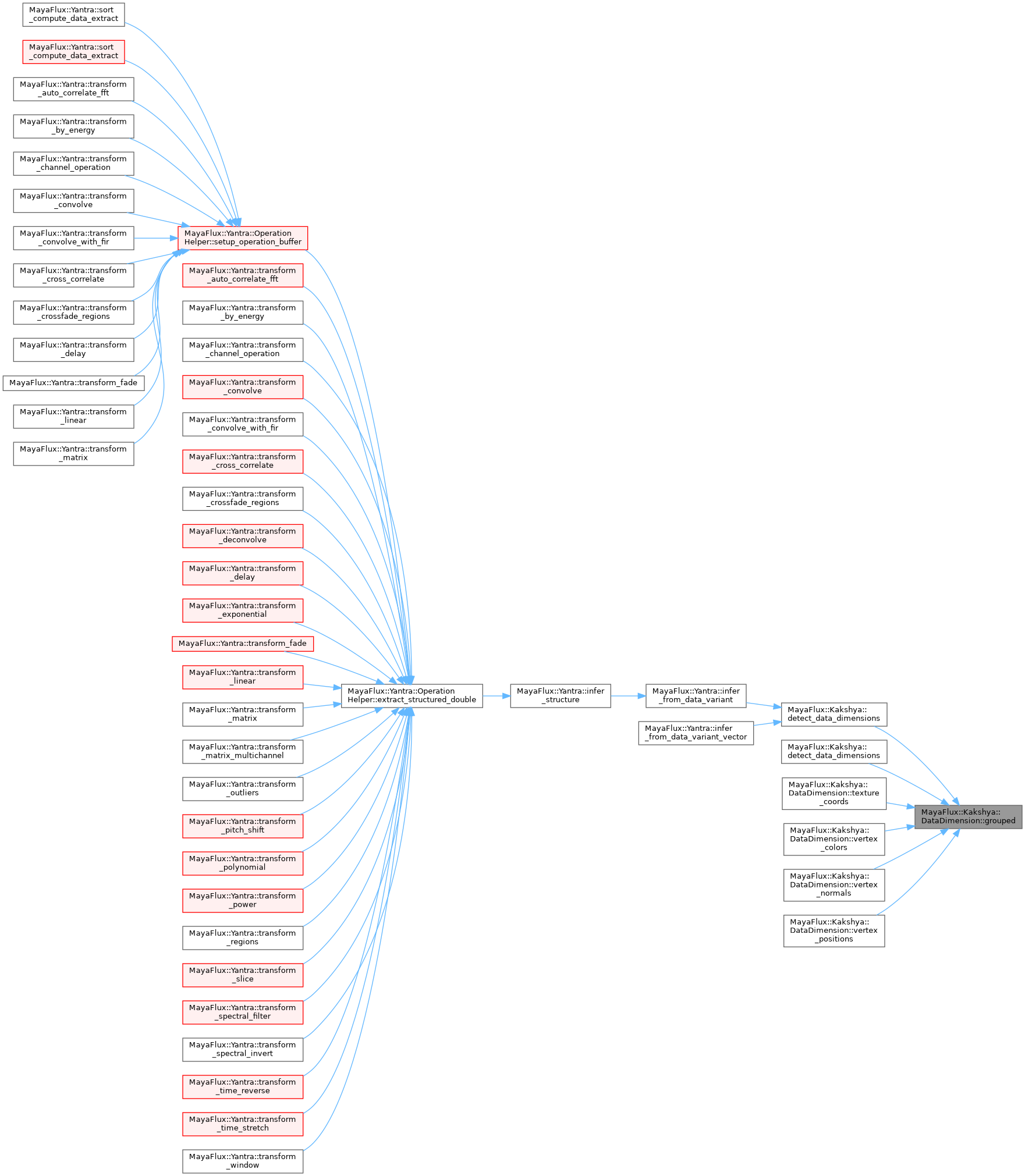

Here is the caller graph for this function:
