spatial()

DataDimension MayaFlux::Kakshya::DataDimension::spatial ( uint64_t  size, char  axis, uint64_t  stride = 1, std::string  name = "spatial"  )

static

Convenience constructor for a spatial dimension.

Parameters

size	Number of elements along this axis
axis	Axis character ('x', 'y', or 'z')
stride	Memory stride (default: 1)
name	Optional name (default: "pixels")

Returns

DataDimension representing a spatial axis

Definition at line 37 of file NDData.cpp.

{
    Role r = [axis]() {
        switch (axis) {
        case 'x':
            return Role::SPATIAL_X;
        case 'y':
            return Role::SPATIAL_Y;
        case 'z':
        default:
            return Role::SPATIAL_Z;
        }
    }();

    if (name == "") {
        name = std::string("spatial_") + axis;
    }
    return { name, size, stride, r };
}

References name, size, SPATIAL_X, SPATIAL_Y, SPATIAL_Z, and stride.

Referenced by create_dimensions(), MayaFlux::Kakshya::detect_data_dimensions(), MayaFlux::Kakshya::detect_data_dimensions(), MayaFlux::Yantra::infer_from_eigen(), spatial_1d(), spatial_2d(), and spatial_3d().

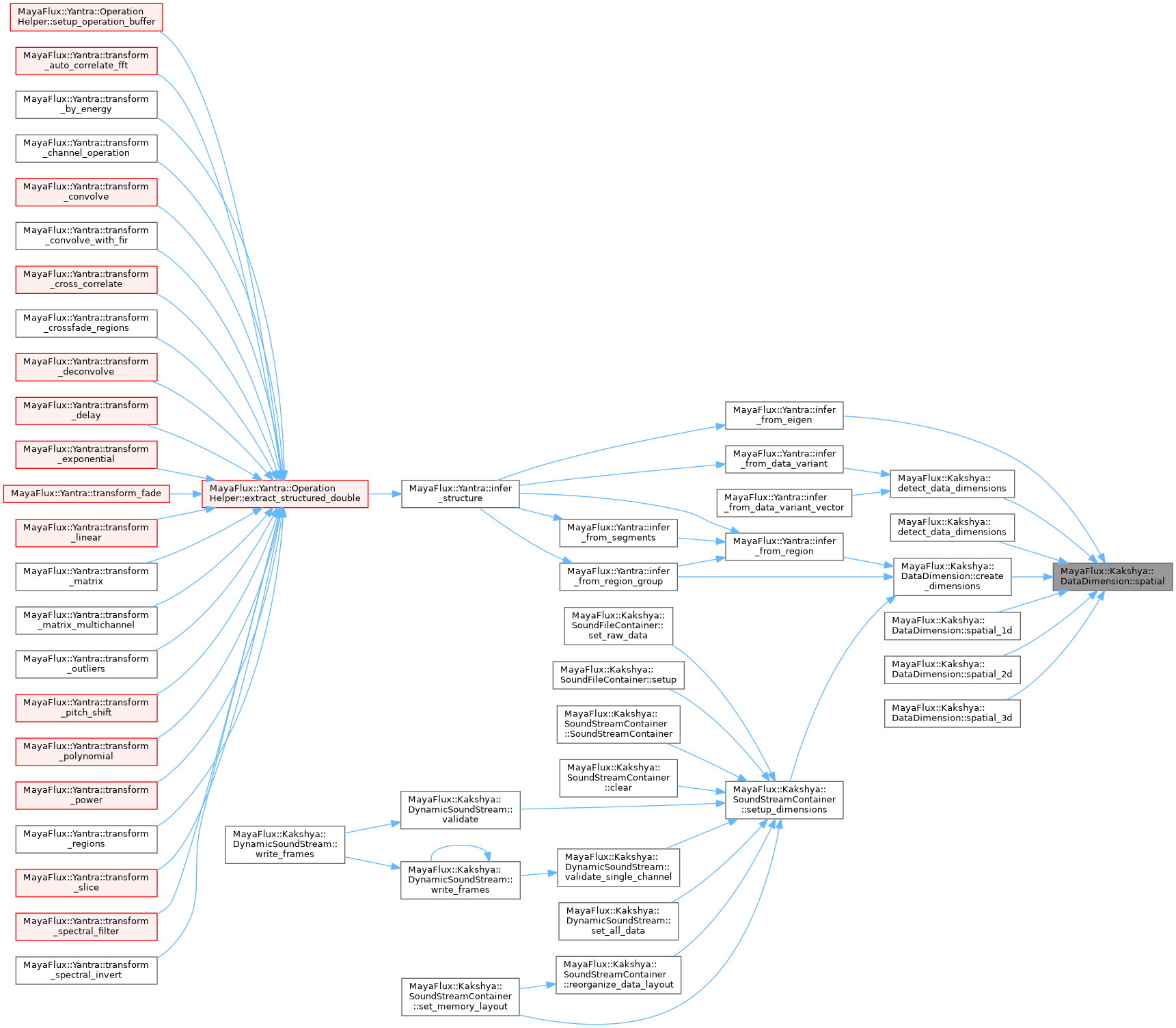

Here is the caller graph for this function:
