#include <TransferProcessor.hpp>

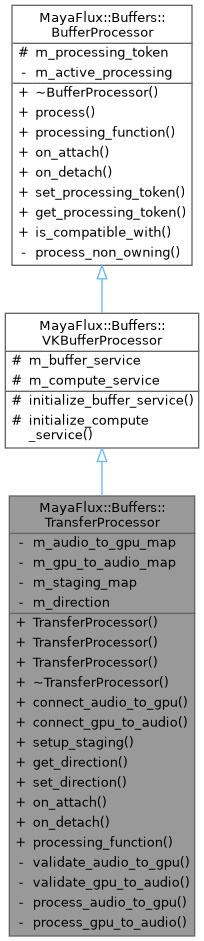

Inheritance diagram for MayaFlux::Buffers::TransferProcessor:

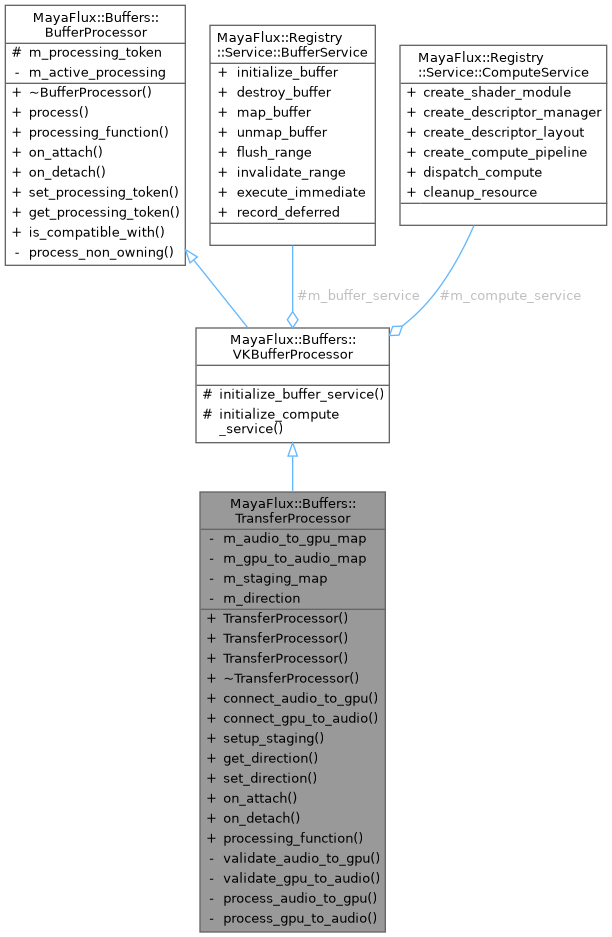

Collaboration diagram for MayaFlux::Buffers::TransferProcessor:

Public Member Functions
	TransferProcessor ()

	TransferProcessor (const std::shared_ptr< AudioBuffer > &source, const std::shared_ptr< VKBuffer > &target)
	Create transfer from audio to GPU.

	TransferProcessor (const std::shared_ptr< AudioBuffer > &audio_buffer, const std::shared_ptr< VKBuffer > &gpu_buffer, TransferDirection direction)
	Create transfer with explicit direction.

	~TransferProcessor () override=default

void	connect_audio_to_gpu (const std::shared_ptr< AudioBuffer > &source, const std::shared_ptr< VKBuffer > &target)
	Configure audio→GPU transfer.

void	connect_gpu_to_audio (const std::shared_ptr< VKBuffer > &source, const std::shared_ptr< AudioBuffer > &target)
	Configure GPU→audio transfer.

void	setup_staging (const std::shared_ptr< VKBuffer > &target, std::shared_ptr< VKBuffer > staging_buffer)
	Set up staging buffer for device-local GPU buffer.

TransferDirection	get_direction () const
	Get current transfer direction.

void	set_direction (TransferDirection direction)
	Set transfer direction.

void	on_attach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is attached to a buffer.

void	on_detach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is detached from a buffer.

void	processing_function (std::shared_ptr< Buffer > buffer) override
	The core processing function that must be implemented by derived classes.

Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.

virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.

virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

virtual bool	is_compatible_with (std::shared_ptr< Buffer >) const
	Checks if this processor can handle the specified buffer type.

Private Member Functions
bool	validate_audio_to_gpu (const std::shared_ptr< VKBuffer > &target) const

bool	validate_gpu_to_audio (const std::shared_ptr< AudioBuffer > &target) const

void	process_audio_to_gpu (const std::shared_ptr< Buffer > &gpu_buffer)

void	process_gpu_to_audio (const std::shared_ptr< Buffer > &audio_buffer)

Private Attributes
std::unordered_map< std::shared_ptr< AudioBuffer >, std::shared_ptr< VKBuffer > >	m_audio_to_gpu_map

std::unordered_map< std::shared_ptr< VKBuffer >, std::shared_ptr< AudioBuffer > >	m_gpu_to_audio_map

std::unordered_map< std::shared_ptr< VKBuffer >, std::shared_ptr< VKBuffer > >	m_staging_map

TransferDirection	m_direction = TransferDirection::AUDIO_TO_GPU

Additional Inherited Members
Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor
void	initialize_buffer_service ()

void	initialize_compute_service ()

Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor
Registry::Service::BufferService *	m_buffer_service = nullptr

Registry::Service::ComputeService *	m_compute_service = nullptr

Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Definition at line 19 of file TransferProcessor.hpp.
