MayaFlux::Buffers::TextureProcessor Class Reference

Internal processor: handles CPU→GPU transfers for TextureBuffer. More...

#include <TextureProcessor.hpp>

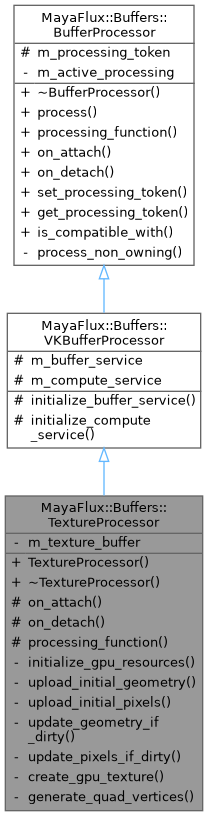

Inheritance diagram for MayaFlux::Buffers::TextureProcessor:

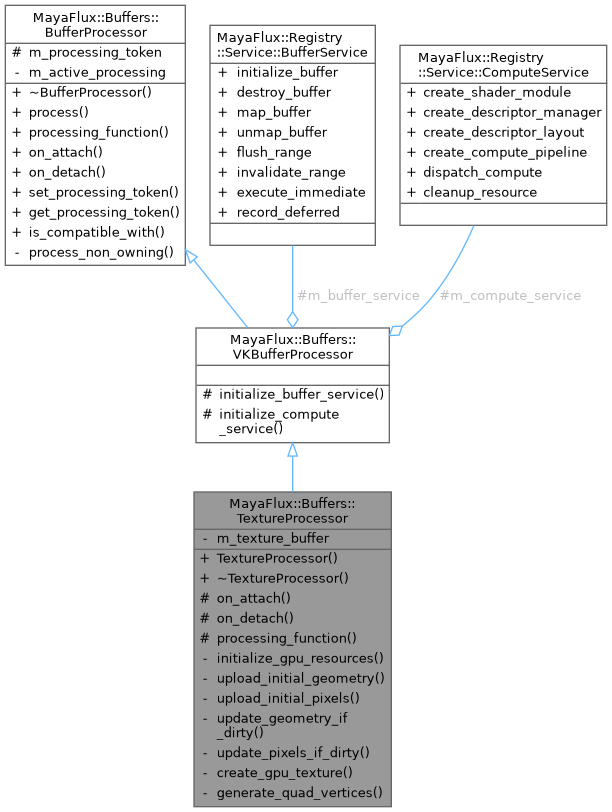

Collaboration diagram for MayaFlux::Buffers::TextureProcessor:

Public Member Functions
	TextureProcessor ()
	~TextureProcessor () override
Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.
void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.
virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.
virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.
virtual bool	is_compatible_with (std::shared_ptr< Buffer >) const
	Checks if this processor can handle the specified buffer type.

Protected Member Functions
void	on_attach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is attached to a buffer.
void	on_detach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is detached from a buffer.
void	processing_function (std::shared_ptr< Buffer > buffer) override
	The core processing function that must be implemented by derived classes.
Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor
void	initialize_buffer_service ()
void	initialize_compute_service ()

Private Member Functions
void	initialize_gpu_resources ()
	Initialize all GPU resources:
void	upload_initial_geometry ()
	Upload initial quad geometry based on default or custom vertices.
void	upload_initial_pixels ()
	Upload initial pixel data to GPU texture.
void	update_geometry_if_dirty ()
	Regenerate quad vertices if transform changed, upload if needed.
void	update_pixels_if_dirty ()
	Re-upload pixels to GPU if they changed.
std::shared_ptr< Core::VKImage >	create_gpu_texture ()
	Create VKImage for texture storage.
void	generate_quad_vertices (std::vector< uint8_t > &out_bytes)
	Generate quad vertices respecting current transform Handles both default quad and custom vertices.

Private Attributes
std::shared_ptr< TextureBuffer >	m_texture_buffer

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor
Registry::Service::BufferService *	m_buffer_service = nullptr
Registry::Service::ComputeService *	m_compute_service = nullptr
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Internal processor: handles CPU→GPU transfers for TextureBuffer.

TextureProcessor is automatically created and attached by TextureBuffer. Users never instantiate or interact with it directly.

Responsibilities:

• Initialize GPU texture (VKImage)
• Upload pixel data to GPU (initial + dirty updates)
• Generate and upload quad geometry respecting transform
• Detect changes and re-upload as needed

All work is invisible to the user. They just modify TextureBuffer (set_pixel_data, set_position, etc.) and it "just works."

Definition at line 29 of file TextureProcessor.hpp.

---

The documentation for this class was generated from the following files:

• TextureProcessor.hpp
• TextureProcessor.cpp
