BufferProcessor that uploads multiple texture nodes to GPU. More...
#include <TextureBindingsProcessor.hpp>

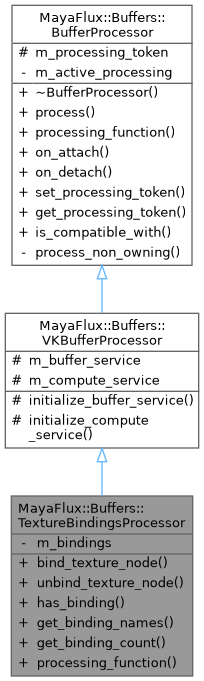

Inheritance diagram for MayaFlux::Buffers::TextureBindingsProcessor:

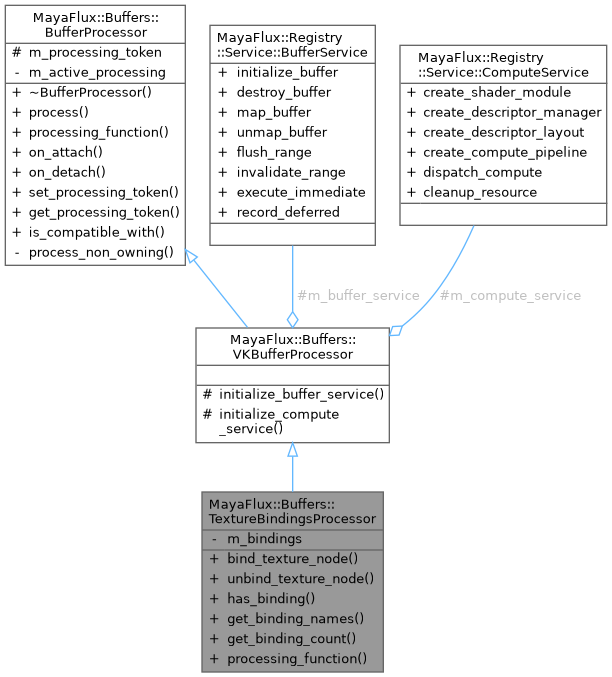

Collaboration diagram for MayaFlux::Buffers::TextureBindingsProcessor:
Classes | |
| struct | TextureBinding |
Public Member Functions | |
| void | bind_texture_node (const std::string &name, const std::shared_ptr< Nodes::GpuSync::TextureNode > &node, const std::shared_ptr< VKBuffer > &texture) |
| Bind a texture node to a GPU texture buffer. | |
| void | unbind_texture_node (const std::string &name) |
| Remove a texture binding. | |
| bool | has_binding (const std::string &name) const |
| Check if a binding exists. | |
| std::vector< std::string > | get_binding_names () const |
| Get all binding names. | |
| size_t | get_binding_count () const |
| Get number of active bindings. | |
| void | processing_function (std::shared_ptr< Buffer > buffer) override |
| The core processing function that must be implemented by derived classes. | |
| Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor | |
| virtual | ~BufferProcessor ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| void | process (std::shared_ptr< Buffer > buffer) |
| Applies a computational transformation to the data in the provided buffer. | |
| virtual void | on_attach (std::shared_ptr< Buffer >) |
| Called when this processor is attached to a buffer. | |
| virtual void | on_detach (std::shared_ptr< Buffer >) |
| Called when this processor is detached from a buffer. | |
| virtual void | set_processing_token (ProcessingToken token) |
| Gets the preferred processing backend for this processor. | |
| virtual ProcessingToken | get_processing_token () const |
| Gets the current processing token for this buffer. | |
| virtual bool | is_compatible_with (std::shared_ptr< Buffer >) const |
| Checks if this processor can handle the specified buffer type. | |
Private Attributes | |
| std::unordered_map< std::string, TextureBinding > | m_bindings |
Additional Inherited Members | |
| Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor | |
| void | initialize_buffer_service () |
| void | initialize_compute_service () |
| Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor | |
| Registry::Service::BufferService * | m_buffer_service = nullptr |
| Registry::Service::ComputeService * | m_compute_service = nullptr |
| Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor | |
| ProcessingToken | m_processing_token { ProcessingToken::AUDIO_BACKEND } |
Detailed Description
BufferProcessor that uploads multiple texture nodes to GPU.
Manages bindings between TextureNode instances and GPU texture buffers. Each frame, reads pixel data from nodes and uploads to corresponding GPU textures.
Behavior:
- If ATTACHED buffer is host-visible: uploads all textures to their targets + attached buffer
- If ATTACHED buffer is device-local: uploads all textures via staging buffers
Usage: auto texture_buffer = std::make_shared<VKBuffer>(...); auto processor = std::make_shared<TextureBindingsProcessor>();
processor->bind_texture_node("spectrum", spectrum_node, spectrum_texture); processor->bind_texture_node("waveform", waveform_node, waveform_texture);
texture_buffer->set_default_processor(processor); texture_buffer->process_default(); // Uploads all bound textures
Definition at line 32 of file TextureBindingsProcessor.hpp.
The documentation for this class was generated from the following files:
