bind_structured_node()

void MayaFlux::Buffers::DescriptorBindingsProcessor::bind_structured_node	(	const std::string &	name,
		const std::shared_ptr< Nodes::Node > &	node,
		const std::string &	descriptor_name,
		uint32_t	set,
		vk::DescriptorType	type = vk::DescriptorType::eStorageBuffer
	)

Bind structured node (arrays of POD structs) to descriptor.

Parameters

name	Logical binding name
node	Node that creates context with GpuStructuredData
descriptor_name	Name in shader config bindings
set	Descriptor set index
type	Typically eStorageBuffer for structured arrays

Definition at line 271 of file DescriptorBindingsProcessor.cpp.

{
    if (!node) {
        MF_ERROR(Journal::Component::Buffers, Journal::Context::BufferProcessing,
            "Cannot bind null node '{}'", name);
        return;
    }

    if (m_config.bindings.find(descriptor_name) == m_config.bindings.end()) {
        MF_ERROR(Journal::Component::Buffers, Journal::Context::BufferProcessing,
            "Descriptor '{}' not found in shader config", descriptor_name);
        return;
    }

    const auto& binding_config = m_config.bindings[descriptor_name];

    size_t initial_size = static_cast<long>(1024) * 64;
    auto gpu_buffer = create_descriptor_buffer(initial_size, type);

    m_bindings[name] = DescriptorBinding {
        .node = node,
        .descriptor_name = descriptor_name,
        .set_index = set,
        .binding_index = binding_config.binding,
        .type = type,
        .binding_type = BindingType::STRUCTURED,
        .gpu_buffer = gpu_buffer,
        .buffer_offset = 0,
        .buffer_size = initial_size
    };

    bind_buffer(descriptor_name, gpu_buffer);

    MF_DEBUG(Journal::Component::Buffers, Journal::Context::BufferProcessing,
        "Bound structured node '{}' to descriptor '{}'", name, descriptor_name);
}

References MayaFlux::Buffers::ShaderProcessor::bind_buffer(), MayaFlux::Buffers::ShaderProcessorConfig::bindings, MayaFlux::Journal::BufferProcessing, MayaFlux::Journal::Buffers, create_descriptor_buffer(), m_bindings, MayaFlux::Buffers::ShaderProcessor::m_config, MF_DEBUG, MF_ERROR, MayaFlux::Buffers::DescriptorBindingsProcessor::DescriptorBinding::node, and STRUCTURED.

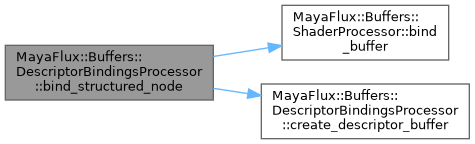

Here is the call graph for this function:
