Processes multiple audio buffers and mixes their data into a single output buffer. More...
#include <MixProcessor.hpp>
Inheritance diagram for MayaFlux::Buffers::MixProcessor:

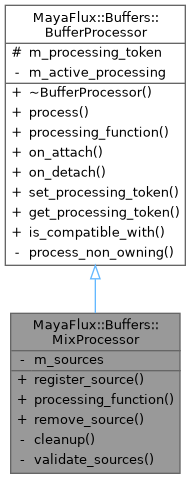

Collaboration diagram for MayaFlux::Buffers::MixProcessor:
Public Member Functions | |
| bool | register_source (std::shared_ptr< AudioBuffer > source, double mix_level=1.0, bool once=false) |
| register an AudioBuffer source to be mixed into the output of specified channel | |
| void | processing_function (std::shared_ptr< Buffer > buffer) override |
| the mechanism to mix output from one buffer to another channel | |
| bool | remove_source (std::shared_ptr< AudioBuffer > buffer) |
| Removes a source buffer from the mix. | |
| Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor | |
| virtual | ~BufferProcessor ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| void | process (std::shared_ptr< Buffer > buffer) |
| Applies a computational transformation to the data in the provided buffer. | |
| virtual void | on_attach (std::shared_ptr< Buffer >) |
| Called when this processor is attached to a buffer. | |
| virtual void | on_detach (std::shared_ptr< Buffer >) |
| Called when this processor is detached from a buffer. | |
| virtual void | set_processing_token (ProcessingToken token) |
| Gets the preferred processing backend for this processor. | |
| virtual ProcessingToken | get_processing_token () const |
| Gets the current processing token for this buffer. | |
| virtual bool | is_compatible_with (std::shared_ptr< Buffer >) const |
| Checks if this processor can handle the specified buffer type. | |
Private Member Functions | |
| void | cleanup () |
| void | validate_sources () |
Private Attributes | |
| std::vector< MixSource > | m_sources |
Additional Inherited Members | |
| Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor | |
| ProcessingToken | m_processing_token { ProcessingToken::AUDIO_BACKEND } |
Detailed Description
Processes multiple audio buffers and mixes their data into a single output buffer.
This processor allows multiple audio sources to be registered, each with its own mix level. It can handle both continuous mixing and one-time mixes based on the once flag.
This is the primary mechanism for single audio buffer to be mixed into multiple channels. Compared to Nodes, buffers are inherently single channel due to their transient nature and the architecture of MayaFlux that adds processors to buffers instead of processing buffers themselves Hence, process once and supply to multiple channels is the most efficient method to send concurrent data to multiple channels.
Definition at line 61 of file MixProcessor.hpp.
The documentation for this class was generated from the following files:
