MayaFlux::Yantra::SpectralTransformer< InputType, OutputType > Class Template Referencefinal
Concrete transformer for frequency-domain operations. More...
#include <SpectralTransformer.hpp>

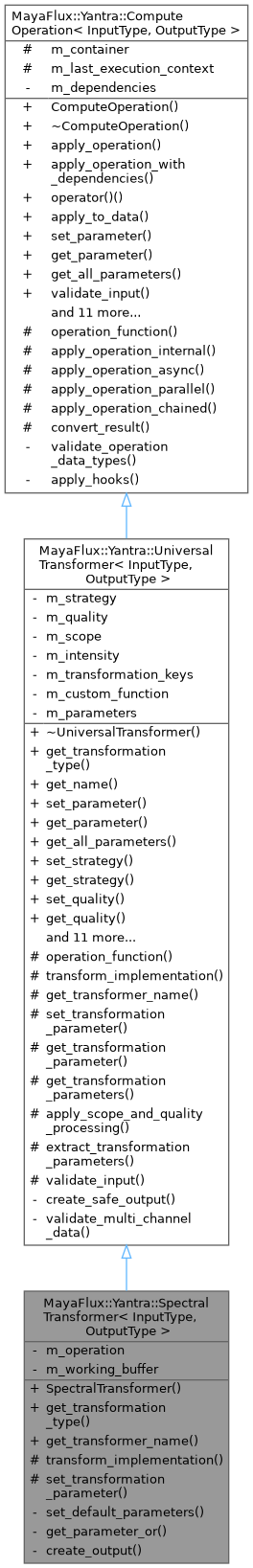

Inheritance diagram for MayaFlux::Yantra::SpectralTransformer< InputType, OutputType >:

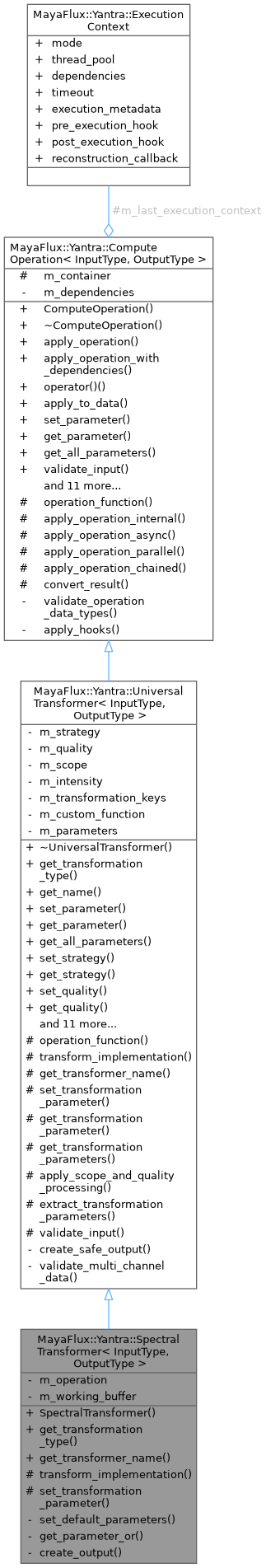

Collaboration diagram for MayaFlux::Yantra::SpectralTransformer< InputType, OutputType >:
Public Types | |
| using | input_type = IO< InputType > |
| using | output_type = IO< OutputType > |
| Public Types inherited from MayaFlux::Yantra::UniversalTransformer< InputType, OutputType > | |
| using | input_type = IO< InputType > |
| using | output_type = IO< OutputType > |
| using | base_type = ComputeOperation< InputType, OutputType > |
| Public Types inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType > | |
| using | input_type = IO< InputType > |
| using | output_type = IO< OutputType > |
Public Member Functions | |
| SpectralTransformer (SpectralOperation op=SpectralOperation::FREQUENCY_SHIFT) | |
| Constructs a SpectralTransformer with specified operation. | |
| TransformationType | get_transformation_type () const override |
| Gets the transformation type. | |
| std::string | get_transformer_name () const override |
| Gets the transformer name including the operation type. | |
| Public Member Functions inherited from MayaFlux::Yantra::UniversalTransformer< InputType, OutputType > | |
| virtual | ~UniversalTransformer ()=default |
| Virtual destructor for proper inheritance cleanup. | |
| std::string | get_name () const override |
| Gets human-readable name for this transformer. | |
| void | set_parameter (const std::string &name, std::any value) override |
| Type-safe parameter management with transformation-specific defaults. | |
| std::any | get_parameter (const std::string &name) const override |
| Gets a parameter value by name. | |
| std::map< std::string, std::any > | get_all_parameters () const override |
| Gets all parameters as a map. | |
| void | set_strategy (TransformationStrategy strategy) |
| Sets the transformation strategy. | |
| TransformationStrategy | get_strategy () const |
| Gets the current transformation strategy. | |
| void | set_quality (TransformationQuality quality) |
| Sets the transformation quality level. | |
| TransformationQuality | get_quality () const |
| Gets the current transformation quality level. | |
| void | set_scope (TransformationScope scope) |
| Sets the transformation scope. | |
| TransformationScope | get_scope () const |
| Gets the current transformation scope. | |
| void | set_intensity (double intensity) |
| Set transformation intensity (0.0 = no transformation, 1.0 = full transformation) | |
| double | get_intensity () const |
| Gets the current transformation intensity. | |
| void | add_transformation_key (const TransformationKey &key) |
| Add transformation key for multi-dimensional transformations. | |
| void | clear_transformation_keys () |
| Clear all transformation keys. | |
| const std::vector< TransformationKey > & | get_transformation_keys () const |
| Get all transformation keys. | |
| template<ComputeData T> | |
| void | set_custom_function (std::function< T(const T &)> func) |
| Set a custom transformation function for mathematical transformations. | |
| virtual bool | is_in_place () const |
| Indicates whether the transformation modifies the input data directly. | |
| virtual double | get_transformation_progress () const |
| Reports the current progress of a long-running transformation. | |
| virtual double | estimate_computational_cost () const |
| Estimates the computational cost of the transformation. | |
| Public Member Functions inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType > | |
| ComputeOperation () | |
| Constructor with data type validation warnings. | |
| virtual | ~ComputeOperation ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| output_type | apply_operation (const input_type &input) |
| Public synchronous execution interface. | |
| output_type | apply_operation_with_dependencies (const input_type &input) |
| Applies the operation with dependencies resolved. | |
| output_type | operator() (const InputType &data) |
| Convenience overload for direct data processing (backward compatibility) | |
| OutputType | apply_to_data (const InputType &data) |
| Convenience overload that extracts just the data from result. | |
| output_type | execute (const input_type &input) |
| OpUnit interface - operations can act as units in dependency graphs. | |
| void | add_dependency (std::shared_ptr< ComputeOperation > dep) |
| const auto & | get_dependencies () const |
| virtual void | set_container_for_regions (const std::shared_ptr< Kakshya::SignalSourceContainer > &container) |
| virtual const std::shared_ptr< Kakshya::SignalSourceContainer > & | get_container_for_regions () const |
| void | set_last_execution_context (const ExecutionContext &ctx) |
| const ExecutionContext & | get_last_execution_context () const |
| void | set_pre_execution_hook (const OpererationHookCallback &hook) |
| void | set_post_execution_hook (const OpererationHookCallback &hook) |
| void | set_reconstruction_callback (const ReconstructionCallback &callback) |
Protected Member Functions | |
| output_type | transform_implementation (input_type &input) override |
| Core transformation implementation for spectral operations. | |
| void | set_transformation_parameter (const std::string &name, std::any value) override |
| Sets transformation parameters. | |
| Protected Member Functions inherited from MayaFlux::Yantra::UniversalTransformer< InputType, OutputType > | |
| output_type | operation_function (const input_type &input) override |
| Core operation implementation - called by ComputeOperation interface. | |
| virtual std::any | get_transformation_parameter (const std::string &name) const |
| Gets a transformation-specific parameter value. | |
| virtual std::map< std::string, std::any > | get_transformation_parameters () const |
| Gets all transformation-specific parameters. | |
| virtual output_type | apply_scope_and_quality_processing (const output_type &result) |
| Apply scope and quality filtering to the transformation result. | |
| std::vector< double > | extract_transformation_parameters (const input_type &input) const |
| Helper method to apply transformation keys to extract parameters. | |
| bool | validate_input (const input_type &input) const override |
| Basic input validation that derived classes can override. | |
| Protected Member Functions inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType > | |
| virtual output_type | apply_operation_internal (const input_type &input, const ExecutionContext &context) |
| Internal execution method - ComputeMatrix can access this. | |
| virtual std::future< output_type > | apply_operation_async (const input_type &input) |
| Optional async implementation - default delegates to operation_function. | |
| virtual output_type | apply_operation_parallel (const input_type &input, const ExecutionContext &ctx) |
| Optional parallel-aware implementation - default delegates to operation_function. | |
| virtual output_type | apply_operation_chained (const input_type &input, const ExecutionContext &ctx) |
| Optional chain-aware implementation - default delegates to operation_function. | |
| output_type | convert_result (std::vector< std::vector< double > > &result_data, DataStructureInfo &metadata) |
| Convert processed double data back to OutputType using metadata and optional callback. | |
Private Member Functions | |
| void | set_default_parameters () |
| Sets default parameter values for all spectral operations. | |
| template<typename T > | |
| T | get_parameter_or (const std::string &name, const T &default_value) const |
| Gets a parameter value with fallback to default. | |
| output_type | create_output (const input_type &input) |
| Creates output with proper type conversion. | |
Private Attributes | |
| SpectralOperation | m_operation |
| Current spectral operation. | |
| std::vector< std::vector< double > > | m_working_buffer |
| Buffer for out-of-place spectral operations. | |
Additional Inherited Members | |
| Protected Attributes inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType > | |
| std::shared_ptr< Kakshya::SignalSourceContainer > | m_container |
| ExecutionContext | m_last_execution_context |
Detailed Description
template<ComputeData InputType = std::vector<Kakshya::DataVariant>, ComputeData OutputType = InputType>
class MayaFlux::Yantra::SpectralTransformer< InputType, OutputType >
class MayaFlux::Yantra::SpectralTransformer< InputType, OutputType >
Concrete transformer for frequency-domain operations.
Handles transformations in the spectral domain:
- Spectral filtering and shaping
- Pitch shifting and harmonics
- Spectral morphing and cross-synthesis
- Frequency analysis and manipulation
Definition at line 31 of file SpectralTransformer.hpp.
The documentation for this class was generated from the following file:
