MayaFlux::Yantra::UniversalTransformer< InputType, OutputType > Class Template Reference

Template-flexible transformer base with instance-defined I/O types. More...

#include <UniversalTransformer.hpp>

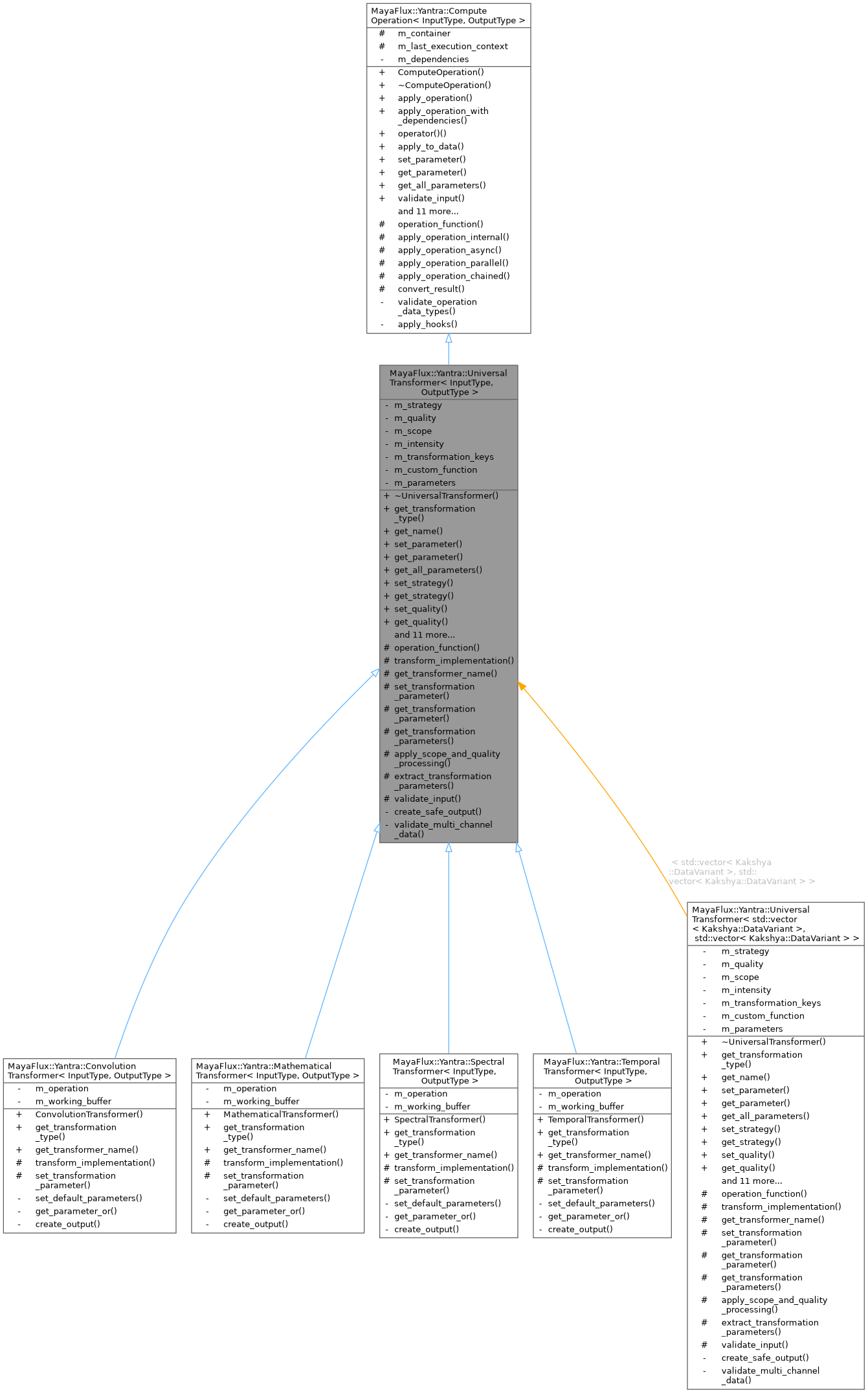

Inheritance diagram for MayaFlux::Yantra::UniversalTransformer< InputType, OutputType >:

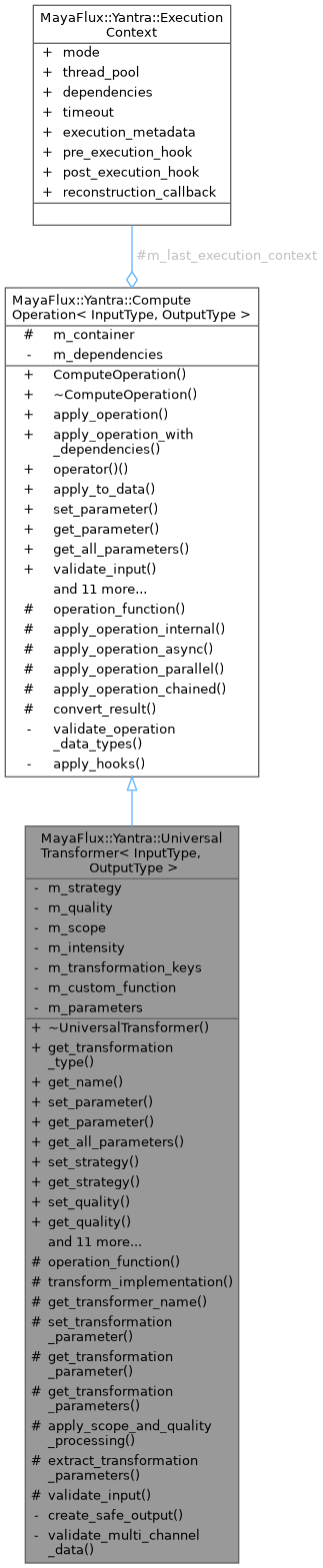

Collaboration diagram for MayaFlux::Yantra::UniversalTransformer< InputType, OutputType >:

Public Types
using	input_type = IO< InputType >
using	output_type = IO< OutputType >
using	base_type = ComputeOperation< InputType, OutputType >
Public Types inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType >
using	input_type = IO< InputType >
using	output_type = IO< OutputType >

Public Member Functions
virtual	~UniversalTransformer ()=default
	Virtual destructor for proper inheritance cleanup.
virtual TransformationType	get_transformation_type () const =0
	Gets the transformation type category for this transformer.
std::string	get_name () const override
	Gets human-readable name for this transformer.
void	set_parameter (const std::string &name, std::any value) override
	Type-safe parameter management with transformation-specific defaults.
std::any	get_parameter (const std::string &name) const override
	Gets a parameter value by name.
std::map< std::string, std::any >	get_all_parameters () const override
	Gets all parameters as a map.
void	set_strategy (TransformationStrategy strategy)
	Sets the transformation strategy.
TransformationStrategy	get_strategy () const
	Gets the current transformation strategy.
void	set_quality (TransformationQuality quality)
	Sets the transformation quality level.
TransformationQuality	get_quality () const
	Gets the current transformation quality level.
void	set_scope (TransformationScope scope)
	Sets the transformation scope.
TransformationScope	get_scope () const
	Gets the current transformation scope.
void	set_intensity (double intensity)
	Set transformation intensity (0.0 = no transformation, 1.0 = full transformation)
double	get_intensity () const
	Gets the current transformation intensity.
void	add_transformation_key (const TransformationKey &key)
	Add transformation key for multi-dimensional transformations.
void	clear_transformation_keys ()
	Clear all transformation keys.
const std::vector< TransformationKey > &	get_transformation_keys () const
	Get all transformation keys.
template<ComputeData T>
void	set_custom_function (std::function< T(const T &)> func)
	Set a custom transformation function for mathematical transformations.
virtual bool	is_in_place () const
	Indicates whether the transformation modifies the input data directly.
virtual double	get_transformation_progress () const
	Reports the current progress of a long-running transformation.
virtual double	estimate_computational_cost () const
	Estimates the computational cost of the transformation.
Public Member Functions inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType >
	ComputeOperation ()
	Constructor with data type validation warnings.
virtual	~ComputeOperation ()=default
	Virtual destructor for proper cleanup of derived classes.
output_type	apply_operation (const input_type &input)
	Public synchronous execution interface.
output_type	apply_operation_with_dependencies (const input_type &input)
	Applies the operation with dependencies resolved.
output_type	operator() (const InputType &data)
	Convenience overload for direct data processing (backward compatibility)
OutputType	apply_to_data (const InputType &data)
	Convenience overload that extracts just the data from result.
output_type	execute (const input_type &input)
	OpUnit interface - operations can act as units in dependency graphs.
void	add_dependency (std::shared_ptr< ComputeOperation > dep)
const auto &	get_dependencies () const
virtual void	set_container_for_regions (const std::shared_ptr< Kakshya::SignalSourceContainer > &container)
virtual const std::shared_ptr< Kakshya::SignalSourceContainer > &	get_container_for_regions () const
void	set_last_execution_context (const ExecutionContext &ctx)
const ExecutionContext &	get_last_execution_context () const
void	set_pre_execution_hook (const OpererationHookCallback &hook)
void	set_post_execution_hook (const OpererationHookCallback &hook)
void	set_reconstruction_callback (const ReconstructionCallback &callback)

Protected Member Functions
output_type	operation_function (const input_type &input) override
	Core operation implementation - called by ComputeOperation interface.
virtual output_type	transform_implementation (input_type &input)=0
	Pure virtual transformation implementation - derived classes implement this.
virtual std::string	get_transformer_name () const
	Get transformer-specific name (derived classes override this)
virtual void	set_transformation_parameter (const std::string &name, std::any value)
	Transformation-specific parameter handling (override for custom parameters)
virtual std::any	get_transformation_parameter (const std::string &name) const
	Gets a transformation-specific parameter value.
virtual std::map< std::string, std::any >	get_transformation_parameters () const
	Gets all transformation-specific parameters.
virtual output_type	apply_scope_and_quality_processing (const output_type &result)
	Apply scope and quality filtering to the transformation result.
std::vector< double >	extract_transformation_parameters (const input_type &input) const
	Helper method to apply transformation keys to extract parameters.
bool	validate_input (const input_type &input) const override
	Basic input validation that derived classes can override.
Protected Member Functions inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType >
virtual output_type	apply_operation_internal (const input_type &input, const ExecutionContext &context)
	Internal execution method - ComputeMatrix can access this.
virtual std::future< output_type >	apply_operation_async (const input_type &input)
	Optional async implementation - default delegates to operation_function.
virtual output_type	apply_operation_parallel (const input_type &input, const ExecutionContext &ctx)
	Optional parallel-aware implementation - default delegates to operation_function.
virtual output_type	apply_operation_chained (const input_type &input, const ExecutionContext &ctx)
	Optional chain-aware implementation - default delegates to operation_function.
output_type	convert_result (std::vector< std::vector< double > > &result_data, DataStructureInfo &metadata)
	Convert processed double data back to OutputType using metadata and optional callback.

Private Member Functions
output_type	create_safe_output (const input_type &input) const
	Creates a safe fallback output when input validation fails.
bool	validate_multi_channel_data (const std::vector< std::span< double > > &channels) const
	Validates multi-channel numeric data for NaN/Infinity values.

Private Attributes
TransformationStrategy	m_strategy = TransformationStrategy::BUFFERED
	Core transformation configuration.
TransformationQuality	m_quality = TransformationQuality::STANDARD
	Current quality level.
TransformationScope	m_scope = TransformationScope::FULL_DATA
	Current processing scope.
double	m_intensity = 1.0
	Transformation intensity (0.0-2.0)
std::vector< TransformationKey >	m_transformation_keys
	Multi-dimensional transformation keys.
std::function< std::any(const std::any &)>	m_custom_function
	Custom transformation function for mathematical operations.
std::map< std::string, std::any >	m_parameters
	Generic parameter storage for transformer-specific settings.

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Yantra::ComputeOperation< InputType, OutputType >
std::shared_ptr< Kakshya::SignalSourceContainer >	m_container
ExecutionContext	m_last_execution_context

Detailed Description

template<ComputeData InputType = Kakshya::DataVariant, ComputeData OutputType = InputType>
class MayaFlux::Yantra::UniversalTransformer< InputType, OutputType >

Template-flexible transformer base with instance-defined I/O types.

Template Parameters

InputType	Input data type (defaults to Kakshya::DataVariant)
OutputType	Output data type (defaults to InputType)

The UniversalTransformer provides a clean, concept-based foundation for all transformation operations. I/O types are defined at instantiation time, providing maximum flexibility while maintaining type safety through C++20 concepts.

Unlike traditional transformers that only handle simple signal processing, this embraces the digital paradigm with multi-modal transformation, cross-domain operations, and computational approaches that go beyond analog metaphors.

Supported Transformation Types

• Temporal: Time-domain operations (reverse, stretch, delay, fade)
• Spectral: Frequency-domain operations (pitch shift, filtering, enhancement)
• Mathematical: Pure mathematical operations (gain, polynomial, trigonometric)
• Convolution: Convolution-based operations (filtering, correlation, deconvolution)
• Cross-modal: Operations that translate between different data modalities
• Generative: AI/ML-driven transformations and procedural generation

Usage Patterns

// Basic mathematical transformation
auto math_transformer = std::make_unique<MathematicalTransformer<>>();
math_transformer->set_parameter("operation", "gain");
math_transformer->set_parameter("gain_factor", 2.0);

// Spectral processing with custom quality
auto spectral_transformer = std::make_unique<SpectralTransformer<>>();
spectral_transformer->set_quality(TransformationQuality::HIGH_QUALITY);
spectral_transformer->set_strategy(TransformationStrategy::BUFFERED);

Definition at line 197 of file UniversalTransformer.hpp.

---

The documentation for this class was generated from the following file:

• UniversalTransformer.hpp
