Sample-accurate timing system for audio processing domain. More...

#include <Clock.hpp>

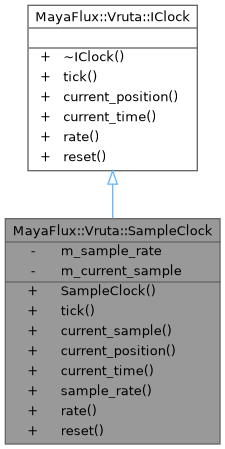

Inheritance diagram for MayaFlux::Vruta::SampleClock:

Collaboration diagram for MayaFlux::Vruta::SampleClock:

Public Member Functions
	SampleClock (uint64_t sample_rate=48000)
	Constructs a SampleClock with the specified sample rate.

void	tick (uint64_t samples=1) override
	Advances the clock by the specified number of samples.

uint64_t	current_sample () const
	Gets the current sample position.

uint64_t	current_position () const override
	Get current position in the domain's timeline.

double	current_time () const override
	Converts current sample position to seconds.

uint32_t	sample_rate () const
	Gets the audio sample rate.

uint32_t	rate () const override
	Get the processing rate for this timing domain.

void	reset () override
	Reset clock to initial state (position 0)

Public Member Functions inherited from MayaFlux::Vruta::IClock
virtual	~IClock ()=default

Private Attributes
uint32_t	m_sample_rate
	Audio sample rate in samples per second.

uint64_t	m_current_sample
	Current sample position counter.

Detailed Description

Sample-accurate timing system for audio processing domain.

SampleClock provides precise sample-based timing for audio processing tasks. Unlike wall-clock time which can be imprecise and subject to system load variations, SampleClock advances strictly based on audio samples processed, ensuring perfect synchronization with the audio stream.

Key Characteristics:

Sample-Accurate Precision: Time measured in audio samples, not milliseconds
Deterministic Timing: Behavior is consistent regardless of system load
Audio Stream Synchronization: Advances in lockstep with audio processing
Musical Timing: Ideal for precisely timed musical events and audio effects

This sample-based approach is essential for audio applications where precise timing is critical and operations must align perfectly with audio buffer boundaries. SampleClock serves as the authoritative timekeeper for the audio processing domain.

Definition at line 90 of file Clock.hpp.
