complete()

void MayaFlux::Nodes::GpuSync::PathGeneratorNode::complete

(

)

Finish incremental drawing stroke.

Clears the sliding window. Call this when pen lifts or stroke ends. Next draw_to() will start a fresh stroke.

Definition at line 508 of file PathGeneratorNode.cpp.

{
    if (m_draw_window.size() < 4) {
        MF_WARN(Journal::Component::Nodes, Journal::Context::NodeProcessing,
            "Not enough points in draw window to generate curve segment ({} points)",
            m_draw_window.size());
        m_completed_draws.insert(
            m_completed_draws.end(),
            m_draw_vertices.begin(),
            m_draw_vertices.end());
        m_draw_vertices.clear();
        m_draw_window.clear();
        m_vertex_data_dirty = true;
        return;
    }

    std::vector<LineVertex> smoothed;

    size_t start_idx = 0;
    while (start_idx + 3 < m_draw_window.size()) {
        generate_curve_segment(m_draw_window, start_idx, smoothed);
        start_idx++;
    }

    for (size_t i = start_idx + 1; i < m_draw_window.size(); ++i) {
        append_line_segment(m_draw_window[i - 1], m_draw_window[i], smoothed);
    }

    m_completed_draws.insert(
        m_completed_draws.end(),
        smoothed.begin(),
        smoothed.end());

    m_draw_vertices.clear();
    m_draw_window.clear();
    m_vertex_data_dirty = true;
}

References append_line_segment(), generate_curve_segment(), m_completed_draws, m_draw_vertices, m_draw_window, MayaFlux::Nodes::GpuSync::GeometryWriterNode::m_vertex_data_dirty, MF_WARN, MayaFlux::Journal::NodeProcessing, and MayaFlux::Journal::Nodes.

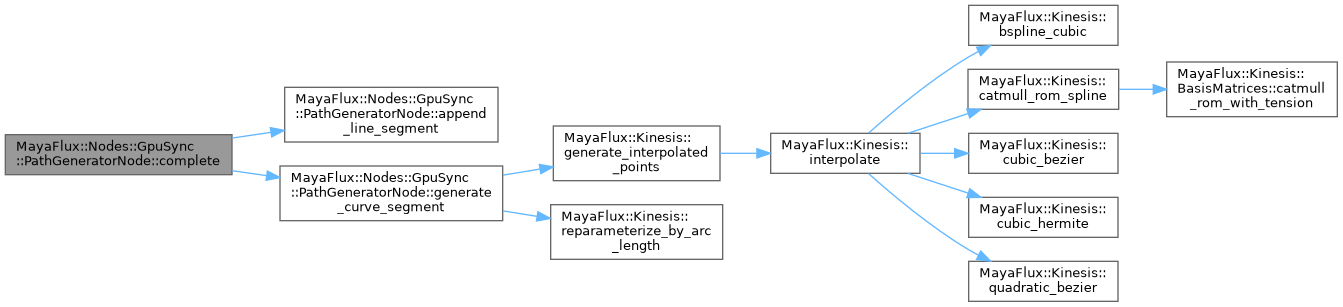

Here is the call graph for this function:
