Represents a timed activation operation for processing nodes. More...

#include <Operators.hpp>

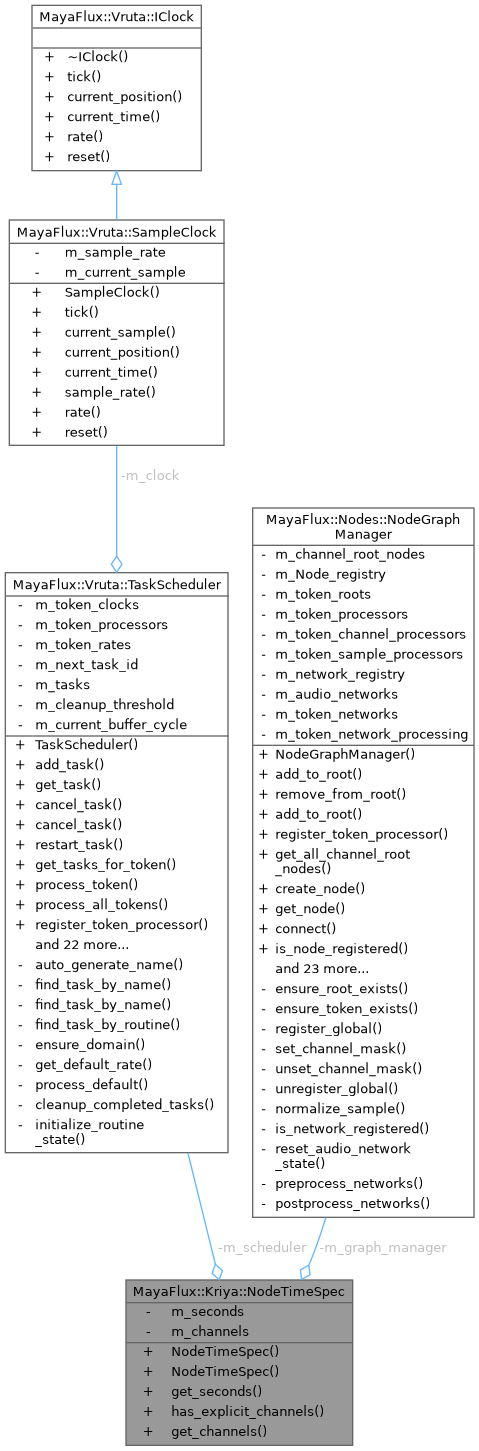

Collaboration diagram for MayaFlux::Kriya::NodeTimeSpec:

Public Member Functions
	NodeTimeSpec (double seconds, std::optional< std::vector< uint32_t > > channels=std::nullopt)
	Constructs a NodeTimeSpec with the specified duration.

	NodeTimeSpec (double seconds, Vruta::TaskScheduler &scheduler, Nodes::NodeGraphManager &graph_manager)
	Constructs a NodeTimeSpec with explicit scheduler and graph manager.

double	get_seconds () const
	Gets the duration of this operation.

bool	has_explicit_channels () const
	Checks if explicit channels were specified.

const std::vector< uint32_t > &	get_channels () const
	Gets the list of channels to activate.

Private Attributes
double	m_seconds
	Duration of the operation in seconds.

Vruta::TaskScheduler &	m_scheduler
	Reference to the scheduler that will manage timing.

Nodes::NodeGraphManager &	m_graph_manager
	Reference to the graph manager that will manage node connections.

std::optional< std::vector< uint32_t > >	m_channels

Friends
void	operator>> (std::shared_ptr< Nodes::Node >, const NodeTimeSpec &)
	Grants the stream operator access to private members.

Detailed Description

Represents a timed activation operation for processing nodes.

The NodeTimeSpec class encapsulates the concept of activating a processing node for a specific duration. It's designed to be used with the stream operator (>>) to create a fluent, expressive syntax for computational flow programming.

This approach is inspired by flow-based programming paradigms, which use operators to express data flow and timing relationships. It allows for a more intuitive, declarative way of expressing temporal operations compared to traditional function calls.

Example usage:

// Activate a processing node for 2 seconds
process_node >> Time(2.0);

// Equivalent to:
// NodeTimer timer(*scheduler, *graph_manager);
// timer.play_for(process_node, 2.0);

The NodeTimeSpec is part of a broader pattern of using operator overloading to create a domain-specific language for computational flow programming within C++.

Definition at line 33 of file Operators.hpp.

The documentation for this class was generated from the following files:
