Cross-pipeline synchronization and coordination system. More...

#include <CycleCoordinator.hpp>

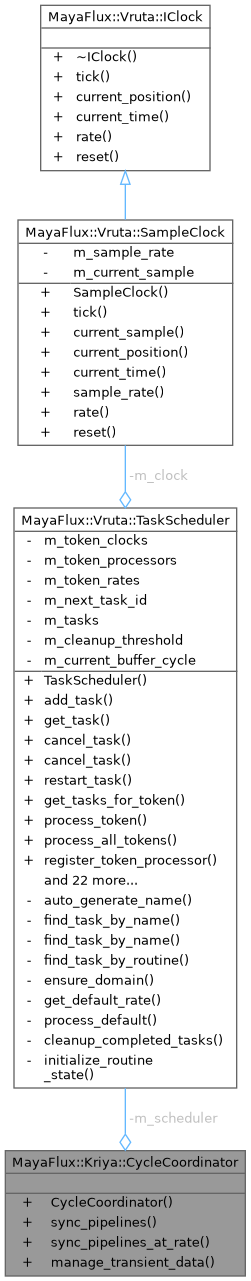

Collaboration diagram for MayaFlux::Kriya::CycleCoordinator:

Public Member Functions
	CycleCoordinator (Vruta::TaskScheduler &scheduler)
	Construct coordinator with task scheduler integration.

Vruta::SoundRoutine	sync_pipelines (std::vector< std::reference_wrapper< BufferPipeline > > pipelines, uint32_t sync_every_n_cycles=1, uint64_t samples_per_cycle=1)
	Create a synchronization routine for multiple pipelines.

std::shared_ptr< Vruta::SoundRoutine >	sync_pipelines_at_rate (std::vector< std::reference_wrapper< BufferPipeline > > pipelines, uint32_t sync_every_n_cycles, double seconds_per_cycle)
	Create a synchronization routine based on real-time rate.

Vruta::SoundRoutine	manage_transient_data (std::shared_ptr< Buffers::AudioBuffer > buffer, std::function< void(uint32_t)> on_data_ready, std::function< void(uint32_t)> on_data_expired)
	Create a transient data management routine.

Private Attributes
Vruta::TaskScheduler &	m_scheduler

Detailed Description

Cross-pipeline synchronization and coordination system.

CycleCoordinator provides synchronization mechanisms for coordinating multiple BufferPipeline instances and managing transient data lifecycles. It integrates with the Vruta scheduling system to provide sample-accurate timing coordination across complex processing networks.

Example Usage:

CycleCoordinator coordinator(*scheduler);

// Synchronize multiple analysis pipelines
auto sync_routine = coordinator.sync_pipelines({
    std::ref(spectral_pipeline),
    std::ref(temporal_pipeline),
    std::ref(feature_pipeline)
}, 4); // Sync every 4 cycles

// Manage transient capture data
auto data_routine = coordinator.manage_transient_data(
    capture_buffer,
    [](uint32_t cycle) { std::cout << "Data ready: " << cycle << std::endl; },
    [](uint32_t cycle) { cleanup_expired_data(cycle); }
);

scheduler->add_task(sync_routine);
scheduler->add_task(data_routine);

See also: BufferPipeline For pipeline construction; BufferCapture For data capture strategies; Vruta::TaskScheduler For execution scheduling

Definition at line 45 of file CycleCoordinator.hpp.
