RtMidi-based MIDI input backend. More...

#include <MIDIBackend.hpp>

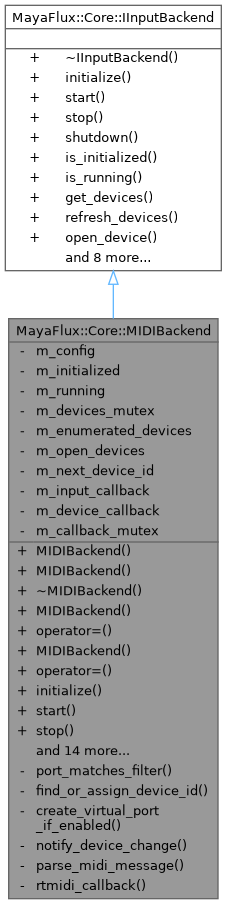

Inheritance diagram for MayaFlux::Core::MIDIBackend:

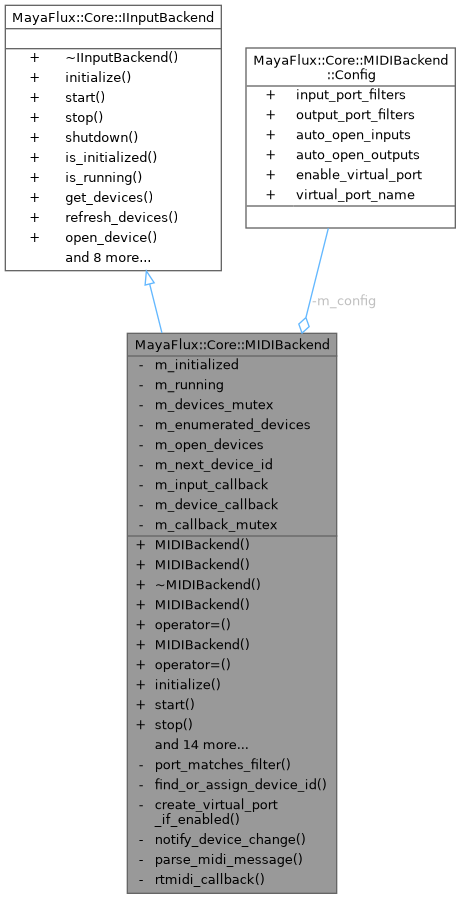

Collaboration diagram for MayaFlux::Core::MIDIBackend:

Classes
struct	Config

struct	MIDIPortInfo

struct	MIDIPortState

Public Member Functions
void	close_device (uint32_t device_id) override
	Close a previously opened device.

std::vector< InputDeviceInfo >	get_devices () const override
	Get list of available devices.

std::string	get_name () const override
	Get backend name/identifier string.

std::vector< uint32_t >	get_open_devices () const override
	Get list of currently open device IDs.

InputType	get_type () const override
	Get backend type.

std::string	get_version () const override
	Get backend version string.

bool	initialize () override
	Initialize the input backend.

bool	is_device_open (uint32_t device_id) const override
	Check if a device is currently open.

bool	is_initialized () const override
	Check if backend is initialized.

bool	is_running () const override
	Check if backend is actively listening.

	MIDIBackend ()

	MIDIBackend (Config config)

	MIDIBackend (const MIDIBackend &)=delete

	MIDIBackend (MIDIBackend &&)=delete

bool	open_device (uint32_t device_id) override
	Open a device for input.

MIDIBackend &	operator= (const MIDIBackend &)=delete

MIDIBackend &	operator= (MIDIBackend &&)=delete

size_t	refresh_devices () override
	Refresh the device list.

void	set_device_callback (DeviceCallback callback) override
	Register callback for device connect/disconnect events.

void	set_input_callback (InputCallback callback) override
	Register callback for input values.

void	shutdown () override
	Shutdown and release all resources.

void	start () override
	Start listening for input events.

void	stop () override
	Stop listening for input events.

	~MIDIBackend () override

Public Member Functions inherited from MayaFlux::Core::IInputBackend
virtual	~IInputBackend ()=default

Private Member Functions
void	create_virtual_port_if_enabled ()

uint32_t	find_or_assign_device_id (unsigned int rtmidi_port)

void	notify_device_change (const InputDeviceInfo &info, bool connected)

InputValue	parse_midi_message (uint32_t device_id, const std::vector< unsigned char > &message) const

bool	port_matches_filter (const std::string &port_name) const

Static Private Member Functions
static void	rtmidi_callback (double timestamp, std::vector< unsigned char > message, void user_data)

Private Attributes
std::mutex	m_callback_mutex

Config	m_config

DeviceCallback	m_device_callback

std::mutex	m_devices_mutex

std::unordered_map< uint32_t, MIDIPortInfo >	m_enumerated_devices

std::atomic< bool >	m_initialized { false }

InputCallback	m_input_callback

uint32_t	m_next_device_id { 1 }

std::unordered_map< uint32_t, std::shared_ptr< MIDIPortState > >	m_open_devices

std::atomic< bool >	m_running { false }

Detailed Description

RtMidi-based MIDI input backend.

Provides MIDI input functionality using RtMidi library. Supports:

Multiple simultaneous MIDI input ports
Port filtering by name
Virtual MIDI port creation
Automatic port detection

Threading model:

RtMidi callbacks fire on RtMidi's internal threads
Callbacks push to InputManager's queue (thread-safe)
No separate polling thread needed (RtMidi is callback-driven)

Definition at line 24 of file MIDIBackend.hpp.

The documentation for this class was generated from the following files:
