MayaFlux::Core::InputValue Struct Reference
Generic input value container. More...
#include <InputBinding.hpp>

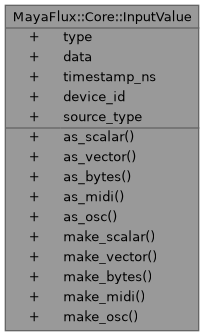

Collaboration diagram for MayaFlux::Core::InputValue:Classes | |
| struct | MIDIMessage |
| MIDI message structure. More... | |
| struct | OSCMessage |
| OSC message structure. More... | |
Public Types | |
| using | OSCArg = std::variant< int32_t, float, std::string, std::vector< uint8_t > > |
| OSC argument types. | |
| enum class | Type : uint8_t { SCALAR , VECTOR , BYTES , MIDI , OSC } |
| Type of input data. More... | |
Public Member Functions | |
| const std::vector< uint8_t > & | as_bytes () const |
| const MIDIMessage & | as_midi () const |
| const OSCMessage & | as_osc () const |
| double | as_scalar () const |
| const std::vector< double > & | as_vector () const |
| const std::vector< uint8_t > * | try_bytes () const noexcept |
| Safe bytes extraction. | |
| const MIDIMessage * | try_midi () const noexcept |
| Safe MIDI extraction. | |
| const OSCMessage * | try_osc () const noexcept |
| Safe OSC extraction. | |
| std::optional< double > | try_scalar () const noexcept |
| Safe scalar extraction. | |
| const std::vector< double > * | try_vector () const noexcept |
| Safe vector extraction. | |
Static Public Member Functions | |
| static InputValue | make_bytes (std::vector< uint8_t > v, uint32_t dev_id, InputType src) |
| static InputValue | make_midi (uint8_t status, uint8_t d1, uint8_t d2, uint32_t dev_id) |
| static InputValue | make_osc (std::string addr, std::vector< OSCArg > args, uint32_t dev_id) |
| static InputValue | make_scalar (double v, uint32_t dev_id, InputType src) |
| static InputValue | make_vector (std::vector< double > v, uint32_t dev_id, InputType src) |
Public Attributes | |
| std::variant< double, std::vector< double >, std::vector< uint8_t >, MIDIMessage, OSCMessage > | data |
| uint32_t | device_id |
| Source device identifier. | |
| InputType | source_type |
| Backend that generated this value. | |
| uint64_t | timestamp_ns |
| Nanoseconds since epoch (or backend start) | |
| Type | type |
Detailed Description
Generic input value container.
Represents a single input event from any backend type. Uses variant to handle different data formats efficiently.
Definition at line 206 of file InputBinding.hpp.
The documentation for this struct was generated from the following files:
