Information about a connected input device. More...

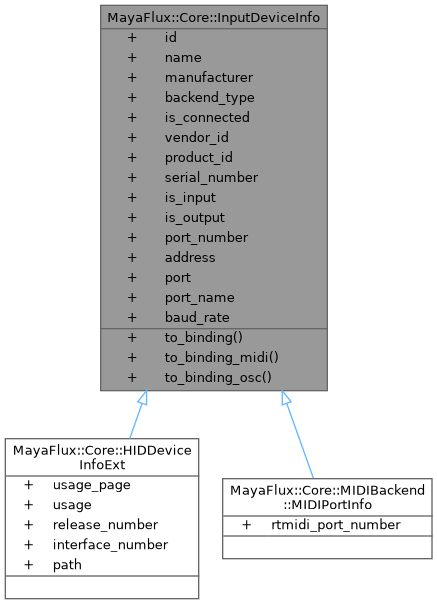

Inheritance diagram for MayaFlux::Core::InputDeviceInfo:

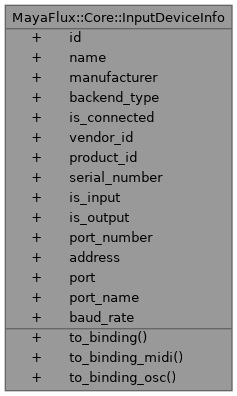

Collaboration diagram for MayaFlux::Core::InputDeviceInfo:

Public Member Functions
InputBinding	to_binding () const
	Create a binding to this specific device.

InputBinding	to_binding_midi (std::optional< uint8_t > channel) const
	Create a binding to this device with additional filters.

InputBinding	to_binding_osc (const std::string &pattern) const

Public Attributes
uint32_t	id
	Unique device identifier within backend.

std::string	name
	Human-readable device name.

std::string	manufacturer
	Device manufacturer (if available)

InputType	backend_type
	Which backend manages this device.

bool	is_connected
	Current connection state.

uint16_t	vendor_id {}
	USB Vendor ID.

uint16_t	product_id {}
	USB Product ID.

std::string	serial_number
	Device serial (if available)

bool	is_input {}
	Can receive MIDI.

bool	is_output {}
	Can send MIDI.

uint8_t	port_number {}
	MIDI port index.

std::string	address
	IP address or hostname.

uint16_t	port {}
	UDP/TCP port.

std::string	port_name
	e.g., "/dev/ttyUSB0" or "COM3"

uint32_t	baud_rate {}
	Serial baud rate.

Detailed Description

Information about a connected input device.

Returned by device enumeration. Contains both universal fields and backend-specific fields (only populated when relevant).

Definition at line 157 of file InputBinding.hpp.

The documentation for this struct was generated from the following files:
