MayaFlux::Core::ISubsystem Class Reference

Base interface for all subsystems in the MayaFlux processing architecture. More...

#include <Subsystem.hpp>

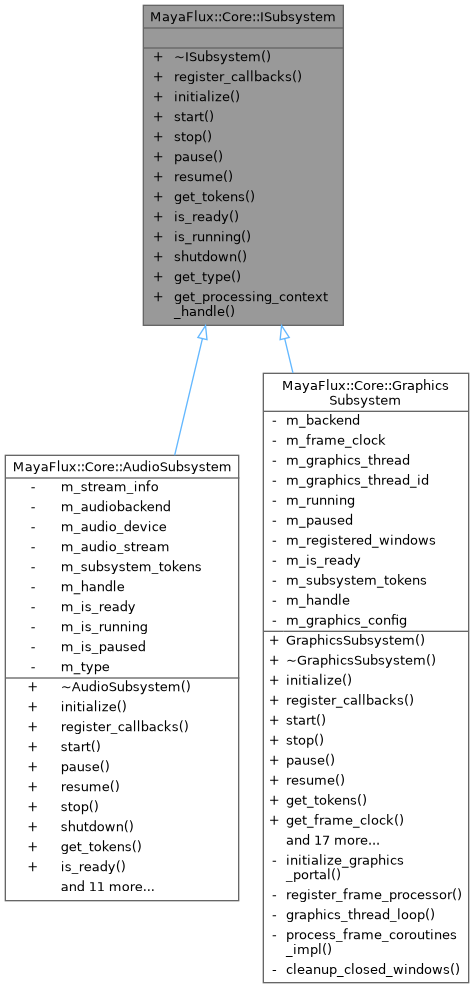

Inheritance diagram for MayaFlux::Core::ISubsystem:

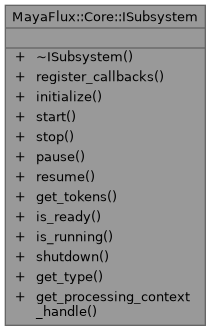

Collaboration diagram for MayaFlux::Core::ISubsystem:

Public Member Functions
virtual	~ISubsystem ()=default
virtual void	register_callbacks ()=0
	Register callback hooks for this domain.
virtual void	initialize (SubsystemProcessingHandle &handle)=0
	Initialize with a handle provided by SubsystemManager.
virtual void	start ()=0
	Start the subsystem's processing/event loops.
virtual void	stop ()=0
	Stop the subsystem's processing/event loops.
virtual void	pause ()=0
	Pause the subsystem's processing/event loops.
virtual void	resume ()=0
	Resume the subsystem's processing/event loops.
virtual SubsystemTokens	get_tokens () const =0
	Get the processing token configuration this subsystem manages.
virtual bool	is_ready () const =0
	Check if subsystem is ready for operation.
virtual bool	is_running () const =0
	Check if subsystem is currently processing.
virtual void	shutdown ()=0
	Shutdown and cleanup subsystem resources.
virtual SubsystemType	get_type () const =0
	Get the type of this subsystem.
virtual SubsystemProcessingHandle *	get_processing_context_handle ()=0
	Get the processing context handle for this subsystem.

Detailed Description

Base interface for all subsystems in the MayaFlux processing architecture.

Defines the standard lifecycle and integration pattern for subsystems that participate in token-based multimodal processing. Each subsystem manages a specific processing domain (audio, video, custom) and coordinates with the central processing architecture through standardized interfaces.

Subsystems follow a consistent lifecycle: register_callbacks() -> initialize() -> start() -> [processing] -> stop() -> shutdown()

Definition at line 25 of file Subsystem.hpp.

---

The documentation for this class was generated from the following file:

• Subsystem.hpp
