MayaFlux::Core::HIDBackend Class Reference

HIDAPI-based HID input backend. More...

#include <HIDBackend.hpp>

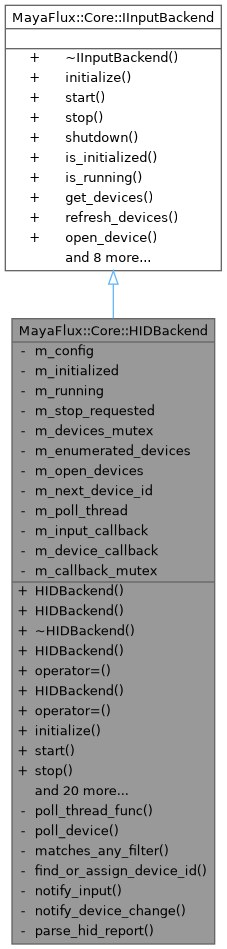

Inheritance diagram for MayaFlux::Core::HIDBackend:

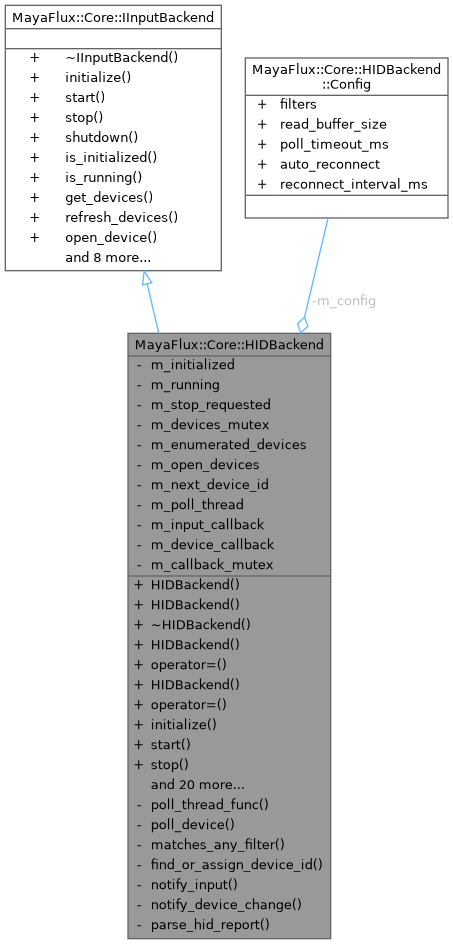

Collaboration diagram for MayaFlux::Core::HIDBackend:

Classes
struct	Config
	Configuration for HID backend. More...

Public Member Functions
	HIDBackend ()
	HIDBackend (Config config)
	~HIDBackend () override
	HIDBackend (const HIDBackend &)=delete
HIDBackend &	operator= (const HIDBackend &)=delete
	HIDBackend (HIDBackend &&)=delete
HIDBackend &	operator= (HIDBackend &&)=delete
bool	initialize () override
	Initialize the input backend.
void	start () override
	Start listening for input events.
void	stop () override
	Stop listening for input events.
void	shutdown () override
	Shutdown and release all resources.
bool	is_initialized () const override
	Check if backend is initialized.
bool	is_running () const override
	Check if backend is actively listening.
std::vector< InputDeviceInfo >	get_devices () const override
	Get list of available devices.
size_t	refresh_devices () override
	Refresh the device list.
bool	open_device (uint32_t device_id) override
	Open a device for input.
void	close_device (uint32_t device_id) override
	Close a previously opened device.
bool	is_device_open (uint32_t device_id) const override
	Check if a device is currently open.
std::vector< uint32_t >	get_open_devices () const override
	Get list of currently open device IDs.
void	set_input_callback (InputCallback callback) override
	Register callback for input values.
void	set_device_callback (DeviceCallback callback) override
	Register callback for device connect/disconnect events.
InputType	get_type () const override
	Get backend type.
std::string	get_name () const override
	Get backend name/identifier string.
std::string	get_version () const override
	Get backend version string.
void	add_device_filter (const HIDDeviceFilter &filter)
	Add a device filter for enumeration.
void	clear_device_filters ()
	Clear all device filters.
std::optional< HIDDeviceInfoExt >	get_device_info_ext (uint32_t device_id) const
	Get extended HID device info.
int	send_feature_report (uint32_t device_id, std::span< const uint8_t > data)
	Send a feature report to a device.
int	get_feature_report (uint32_t device_id, uint8_t report_id, std::span< uint8_t > buffer)
	Get a feature report from a device.
int	write (uint32_t device_id, std::span< const uint8_t > data)
	Send an output report to a device.
Public Member Functions inherited from MayaFlux::Core::IInputBackend
virtual	~IInputBackend ()=default

Private Member Functions
void	poll_thread_func ()
void	poll_device (uint32_t device_id, HIDDeviceState &state)
bool	matches_any_filter (uint16_t vid, uint16_t pid, uint16_t usage_page, uint16_t usage) const
uint32_t	find_or_assign_device_id (const std::string &path)
void	notify_input (const InputValue &value)
void	notify_device_change (const InputDeviceInfo &info, bool connected)
InputValue	parse_hid_report (uint32_t device_id, std::span< const uint8_t > report)

Private Attributes
Config	m_config
std::atomic< bool >	m_initialized { false }
std::atomic< bool >	m_running { false }
std::atomic< bool >	m_stop_requested { false }
std::mutex	m_devices_mutex
std::unordered_map< uint32_t, HIDDeviceInfoExt >	m_enumerated_devices
std::unordered_map< uint32_t, std::shared_ptr< HIDDeviceState > >	m_open_devices
uint32_t	m_next_device_id { 1 }
std::thread	m_poll_thread
InputCallback	m_input_callback
DeviceCallback	m_device_callback
std::mutex	m_callback_mutex

Detailed Description

HIDAPI-based HID input backend.

Provides access to generic HID devices including:

• Game controllers (Xbox, PlayStation, Switch Pro, etc.)
• Custom HID hardware
• Joysticks and flight sticks

Uses HIDAPI for cross-platform HID communication.

Threading model:

• Device enumeration: Main thread safe
• Input polling: Dedicated poll thread
• Callbacks: Called from poll thread (use synchronization!)

Example usage:

HIDBackend hid;
hid.add_device_filter(HIDDeviceFilter::controller());
hid.initialize();

hid.set_input_callback([](const InputValue& val) {
    // Handle input (called from poll thread!)
});

auto devices = hid.get_devices();
if (!devices.empty()) {
    hid.open_device(devices[0].id);
}

hid.start();
// ... application runs ...
hid.shutdown();

Definition at line 66 of file HIDBackend.hpp.

---

The documentation for this class was generated from the following files:

• HIDBackend.hpp
• HIDBackend.cpp
