Adapter bridging VideoStreamContainer processed data to TextureBuffer pixel storage. More...
#include <VideoContainerBuffer.hpp>
Inheritance diagram for MayaFlux::Buffers::VideoStreamReader:

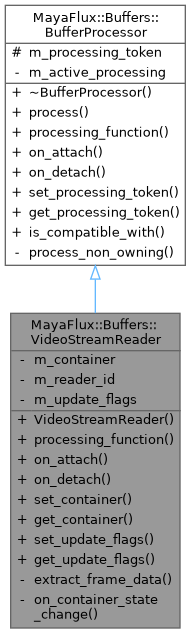

Collaboration diagram for MayaFlux::Buffers::VideoStreamReader:
Public Member Functions | |
| VideoStreamReader (const std::shared_ptr< Kakshya::StreamContainer > &container) | |
| Construct a VideoStreamReader for the given container. | |
| void | processing_function (const std::shared_ptr< Buffer > &buffer) override |
| Extract the current frame from the container into the TextureBuffer. | |
| void | on_attach (const std::shared_ptr< Buffer > &buffer) override |
| Attach the reader to a TextureBuffer. | |
| void | on_detach (const std::shared_ptr< Buffer > &buffer) override |
| Detach the reader from its TextureBuffer. | |
| void | set_container (const std::shared_ptr< Kakshya::StreamContainer > &container) |
| Replace the backing container. | |
| std::shared_ptr< Kakshya::StreamContainer > | get_container () const |
| Get the backing container. | |
| void | set_update_flags (bool update) |
| Enable or disable automatic buffer state flag updates. | |
| bool | get_update_flags () const |
| Get the current state flag update setting. | |
| Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor | |
| virtual | ~BufferProcessor ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| void | process (const std::shared_ptr< Buffer > &buffer) |
| Applies a computational transformation to the data in the provided buffer. | |
| virtual void | set_processing_token (ProcessingToken token) |
| Gets the preferred processing backend for this processor. | |
| virtual ProcessingToken | get_processing_token () const |
| Gets the current processing token for this buffer. | |
| virtual bool | is_compatible_with (const std::shared_ptr< Buffer > &) const |
| Checks if this processor can handle the specified buffer type. | |
Private Member Functions | |
| void | extract_frame_data (const std::shared_ptr< TextureBuffer > &texture_buffer) |
| Extract frame pixel data from processed_data into the TextureBuffer. | |
| void | on_container_state_change (const std::shared_ptr< Kakshya::SignalSourceContainer > &container, Kakshya::ProcessingState state) |
| Respond to container state changes. | |
Private Attributes | |
| std::shared_ptr< Kakshya::StreamContainer > | m_container |
| uint32_t | m_reader_id {} |
| bool | m_update_flags { true } |
Additional Inherited Members | |
| Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor | |
| ProcessingToken | m_processing_token { ProcessingToken::AUDIO_BACKEND } |
Detailed Description
Adapter bridging VideoStreamContainer processed data to TextureBuffer pixel storage.
VideoStreamReader is the video counterpart of SoundStreamReader. Where SoundStreamReader extracts per-channel audio samples from a container's processed_data into an AudioBuffer, VideoStreamReader extracts full-frame RGBA pixel data from a container's processed_data into a TextureBuffer's pixel storage, marking it dirty for GPU upload.
The pipeline mirrors audio exactly:
VideoStreamContainer → FrameAccessProcessor (extracts frame into processed_data) → VideoStreamReader (copies processed_data into TextureBuffer pixels) → TextureProcessor (uploads dirty pixels to GPU VKImage) → RenderProcessor (draws textured quad)
VideoStreamReader triggers the container's default processor (FrameAccessProcessor) if the container is in READY state, then copies the resulting uint8_t RGBA data into the TextureBuffer via set_pixel_data(). This marks the texture dirty, causing TextureProcessor to re-upload on the next frame.
Unlike SoundStreamReader, there is no channel selection — video frames are atomic spatial units. The reader always extracts the entire frame surface.
- See also
- SoundStreamReader, FrameAccessProcessor, TextureBuffer, VideoStreamContainer
Definition at line 37 of file VideoContainerBuffer.hpp.
The documentation for this class was generated from the following files:
