MayaFlux::Buffers::NetworkAudioBuffer Class Reference
AudioBuffer that captures batch output from a NodeNetwork each cycle. More...
#include <NetworkAudioBuffer.hpp>

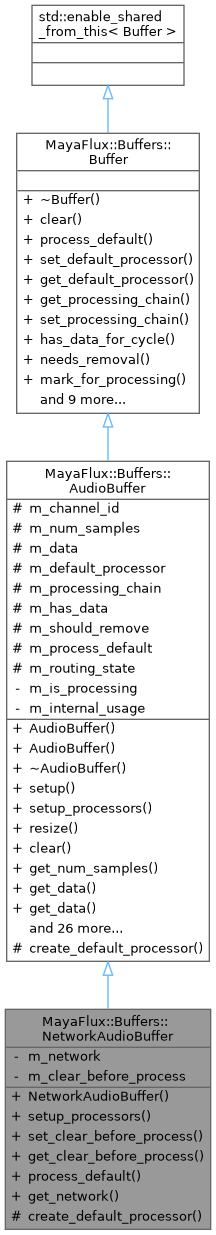

Inheritance diagram for MayaFlux::Buffers::NetworkAudioBuffer:

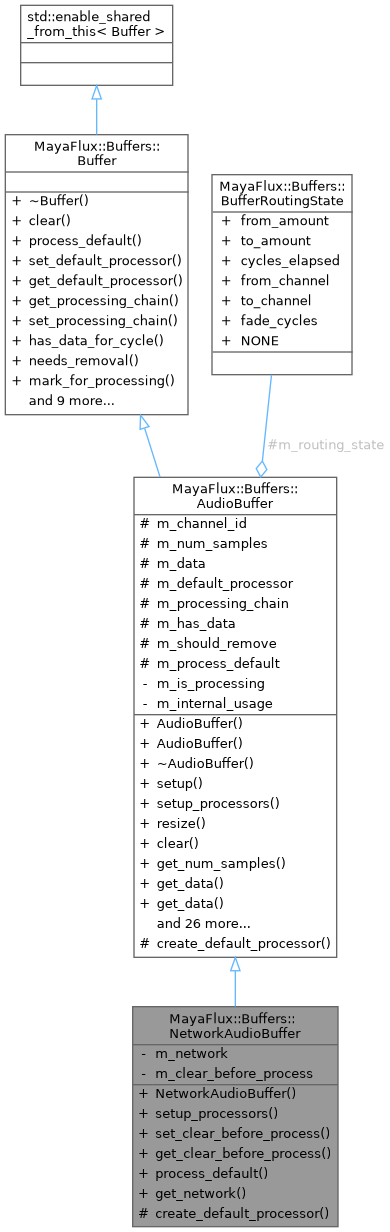

Collaboration diagram for MayaFlux::Buffers::NetworkAudioBuffer:
Public Member Functions | |
| NetworkAudioBuffer (uint32_t channel_id, uint32_t num_samples, std::shared_ptr< Nodes::Network::NodeNetwork > network, bool clear_before_process=true) | |
| Creates a buffer connected to a NodeNetwork. | |
| void | setup_processors (ProcessingToken token) override |
| Sets up audio processors for the specified processing token. | |
| void | set_clear_before_process (bool value) |
| bool | get_clear_before_process () const |
| void | process_default () override |
| Applies the default audio transformation to the buffer's data. | |
| std::shared_ptr< Nodes::Network::NodeNetwork > | get_network () const |
| Public Member Functions inherited from MayaFlux::Buffers::AudioBuffer | |
| AudioBuffer () | |
| Creates a new uninitialized audio buffer. | |
| AudioBuffer (uint32_t channel_id, uint32_t num_samples=512) | |
| Creates a new audio buffer with specified channel and capacity. | |
| ~AudioBuffer () override=default | |
| Virtual destructor for proper resource management. | |
| virtual void | setup (uint32_t channel, uint32_t num_samples) |
| Initializes the audio buffer with specified channel and capacity. | |
| virtual void | resize (uint32_t num_samples) |
| Adjusts the audio buffer's sample capacity. | |
| void | clear () override |
| Resets all audio samples in the buffer to silence. | |
| virtual uint32_t | get_num_samples () const |
| Gets the current capacity of the audio buffer. | |
| virtual std::vector< double > & | get_data () |
| Gets mutable access to the buffer's underlying audio data. | |
| virtual const std::vector< double > & | get_data () const |
| Gets read-only access to the buffer's underlying audio data. | |
| virtual uint32_t | get_channel_id () const |
| Gets the audio channel identifier for this buffer. | |
| void | set_channel_id (uint32_t id) |
| Sets the audio channel identifier for this buffer. | |
| virtual void | set_num_samples (uint32_t num_samples) |
| Sets the capacity of the audio buffer. | |
| void | set_default_processor (const std::shared_ptr< BufferProcessor > &processor) override |
| Sets the default audio transformation processor for this buffer. | |
| std::shared_ptr< BufferProcessor > | get_default_processor () const override |
| Gets the current default audio transformation processor. | |
| std::shared_ptr< BufferProcessingChain > | get_processing_chain () override |
| Gets the audio transformation chain attached to this buffer. | |
| void | set_processing_chain (const std::shared_ptr< BufferProcessingChain > &chain, bool force=false) override |
| Sets the audio transformation chain for this buffer. | |
| virtual double & | get_sample (uint32_t index) |
| Gets a reference to a specific audio sample in the buffer. | |
| bool | has_data_for_cycle () const override |
| Checks if the audio buffer has data for the current processing cycle. | |
| bool | needs_removal () const override |
| Checks if the buffer should be removed from the processing chain This is relevant when using SignalSourceContainers. | |
| void | mark_for_processing (bool has_data) override |
| Marks the audio buffer for processing in the current cycle. | |
| void | mark_for_removal () override |
| Marks the audio buffer for removal from processing chains. | |
| void | enforce_default_processing (bool should_process) override |
| Controls whether the audio buffer should use default processing. | |
| bool | needs_default_processing () override |
| Checks if the audio buffer should undergo default processing. | |
| bool | try_acquire_processing () override |
| Attempts to acquire processing rights for the buffer. | |
| void | release_processing () override |
| Releases processing rights for the buffer. | |
| bool | is_processing () const override |
| Checks if the buffer is currently being processed. | |
| virtual std::shared_ptr< AudioBuffer > | clone_to (uint32_t channel) |
| Creates a clone of this audio buffer for a specific channel. | |
| std::shared_ptr< Buffer > | clone_to (uint8_t dest_desc) override |
| Creates a clone of this buffer for a specific channel or usage enum. | |
| virtual bool | read_once (const std::shared_ptr< AudioBuffer > &buffer, bool force=false) |
| Reads audio data into the buffer from the audio backend. | |
| void | force_internal_usage (bool internal) override |
| Marks the buffer as internal-only, preventing root aggregation. | |
| bool | is_internal_only () const override |
| Checks if the buffer is marked as internal-only. | |
| const BufferRoutingState & | get_routing_state () const |
| Retrieves the current routing state of the buffer. | |
| BufferRoutingState & | get_routing_state () |
| Retrieves the current routing state of the buffer (non-const) | |
| bool | needs_routing () const |
| Checks if the buffer is currently in a routing transition phase. | |
| Public Member Functions inherited from MayaFlux::Buffers::Buffer | |
| virtual | ~Buffer ()=default |
| Virtual destructor for proper resource management. | |
Protected Member Functions | |
| std::shared_ptr< BufferProcessor > | create_default_processor () override |
| Creates a default audio transformation processor for this buffer type. | |
Private Attributes | |
| std::shared_ptr< Nodes::Network::NodeNetwork > | m_network |
| bool | m_clear_before_process |
Additional Inherited Members | |
| Protected Attributes inherited from MayaFlux::Buffers::AudioBuffer | |
| uint32_t | m_channel_id |
| Audio channel identifier for this buffer. | |
| uint32_t | m_num_samples |
| Capacity of the buffer in audio samples. | |
| std::vector< double > | m_data |
| Vector storing the actual double-precision audio sample data. | |
| std::shared_ptr< BufferProcessor > | m_default_processor |
| Default audio transformation processor for this buffer. | |
| std::shared_ptr< BufferProcessingChain > | m_processing_chain |
| Audio transformation processing chain for this buffer. | |
| bool | m_has_data |
| Whether the audio buffer has data to process this cycle. | |
| bool | m_should_remove |
| Whether the audio buffer should be removed from processing chains. | |
| bool | m_process_default |
| Whether the audio buffer should be processed using its default processor. | |
| BufferRoutingState | m_routing_state |
| Internal state tracking for routing transitions. | |
Detailed Description
AudioBuffer that captures batch output from a NodeNetwork each cycle.
NetworkAudioBuffer provides a bridge between NodeNetwork (which produces batch audio via process_batch()) and the AudioBuffer system (which participates in buffer processing chains, pipelines, and capture operations).
This is the network-level analogue of NodeBuffer. Where NodeBuffer drives a single Node sample-by-sample through save_state/process_sample/restore_state, NetworkAudioBuffer drives or reads the network's batch result. The network may or may not be managed by NodeGraphManager; NetworkAudioBuffer handles both cases.
The network must have OutputMode::AUDIO_SINK or AUDIO_COMPUTE. Construction with a non-audio network is a fatal error.
The buffer does NOT register itself on any audio output channel. It exists as an independent capture point. The network's normal output path through RootAudioBuffer/ChannelProcessor is unaffected.
Definition at line 99 of file NetworkAudioBuffer.hpp.
The documentation for this class was generated from the following files:
