#include <glm/glm.hpp>
#include "typeindex"

Include dependency graph for NDData.hpp:

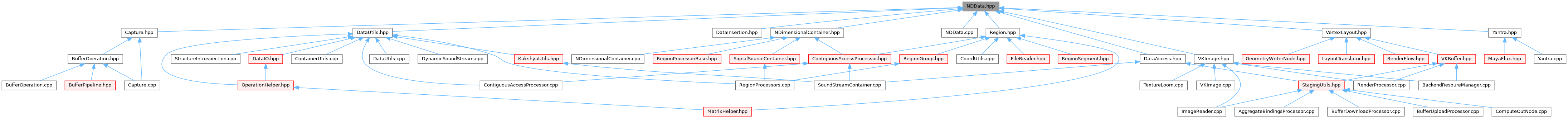

This graph shows which files directly or indirectly include this file:

Classes
struct	MayaFlux::Kakshya::DataDimension::ComponentGroup
	Grouping information for sub-dimensions. More...

struct	MayaFlux::Kakshya::DataDimension
	Minimal dimension descriptor focusing on structure only. More...

class	MayaFlux::Kakshya::FrameView
	Zero-copy typed view over one frame of container storage. More...

struct	MayaFlux::Kakshya::is_data_variant_element< T >
	Type traits to determine if a type is a valid DataVariant element. More...

struct	MayaFlux::Kakshya::is_data_variant_element< double >
	high precision floating point data (double) (audio) More...

struct	MayaFlux::Kakshya::is_data_variant_element< float >
	standard precision floating point data (float) (params) More...

struct	MayaFlux::Kakshya::is_data_variant_element< glm::mat4 >
	4x4 matrix data (glm::mat4) More...

struct	MayaFlux::Kakshya::is_data_variant_element< glm::vec2 >
	2D vector data (glm::vec2) More...

struct	MayaFlux::Kakshya::is_data_variant_element< glm::vec3 >
	3D vector data (glm::vec3) More...

struct	MayaFlux::Kakshya::is_data_variant_element< glm::vec4 >
	4D vector data (glm::vec4) More...

struct	MayaFlux::Kakshya::is_data_variant_element< std::complex< double > >
	high precision complex data (spectral) More...

struct	MayaFlux::Kakshya::is_data_variant_element< std::complex< float > >
	complex data (spectral) More...

struct	MayaFlux::Kakshya::is_data_variant_element< uint16_t >
	16-bit unsigned integer data (uint16_t) (CD audio, images) More...

struct	MayaFlux::Kakshya::is_data_variant_element< uint32_t >
	32-bit unsigned integer data (uint32_t) (high precision int) More...

struct	MayaFlux::Kakshya::is_data_variant_element< uint8_t >
	8-bit unsigned integer data (uint8_t) (images, compressed audio) More...

struct	MayaFlux::Kakshya::detail::span_const_from_vector_variant< std::variant< Vecs... > >

Namespaces
namespace	MayaFlux
	Main namespace for the Maya Flux audio engine.

namespace	MayaFlux::Kakshya

namespace	MayaFlux::Kakshya::detail

Concepts
concept	MayaFlux::Kakshya::DataVariantElement
	Concept to constrain types to valid DataVariant elements.

Typedefs
using	MayaFlux::Kakshya::DataSpanVariant = typename detail::span_const_from_vector_variant< DataVariant >::type

using	MayaFlux::Kakshya::DataVariant = std::variant< std::vector< double >, std::vector< float >, std::vector< uint8_t >, std::vector< uint16_t >, std::vector< uint32_t >, std::vector< std::complex< float > >, std::vector< std::complex< double > >, std::vector< glm::vec2 >, std::vector< glm::vec3 >, std::vector< glm::vec4 >, std::vector< glm::mat4 > >
	Multi-type data storage for different precision needs.

Enumerations
enum class	MayaFlux::Kakshya::DataModality : uint8_t { MayaFlux::Kakshya::AUDIO_1D , MayaFlux::Kakshya::AUDIO_MULTICHANNEL , MayaFlux::Kakshya::IMAGE_2D , MayaFlux::Kakshya::IMAGE_COLOR , MayaFlux::Kakshya::IMAGE_COLOR_ARRAY , MayaFlux::Kakshya::VIDEO_GRAYSCALE , MayaFlux::Kakshya::VIDEO_COLOR , MayaFlux::Kakshya::TEXTURE_2D , MayaFlux::Kakshya::TENSOR_ND , MayaFlux::Kakshya::SPECTRAL_2D , MayaFlux::Kakshya::VOLUMETRIC_3D , MayaFlux::Kakshya::VERTICES_3D , MayaFlux::Kakshya::VERTEX_POSITIONS_3D , MayaFlux::Kakshya::VERTEX_NORMALS_3D , MayaFlux::Kakshya::VERTEX_TANGENTS_3D , MayaFlux::Kakshya::VERTEX_COLORS_RGB , MayaFlux::Kakshya::VERTEX_COLORS_RGBA , MayaFlux::Kakshya::TEXTURE_COORDS_2D , MayaFlux::Kakshya::TRANSFORMATION_MATRIX , MayaFlux::Kakshya::SCALAR_F32 , MayaFlux::Kakshya::UNKNOWN }
	Data modality types for cross-modal analysis. More...

enum class	MayaFlux::Kakshya::GpuDataFormat : uint8_t { MayaFlux::Kakshya::FLOAT32 , MayaFlux::Kakshya::VEC2_F32 , MayaFlux::Kakshya::VEC3_F32 , MayaFlux::Kakshya::VEC4_F32 , MayaFlux::Kakshya::FLOAT64 , MayaFlux::Kakshya::VEC2_F64 , MayaFlux::Kakshya::VEC3_F64 , MayaFlux::Kakshya::VEC4_F64 , MayaFlux::Kakshya::INT32 , MayaFlux::Kakshya::UINT32 , MayaFlux::Kakshya::UINT8 , MayaFlux::Kakshya::UINT16 }
	GPU data formats with explicit precision levels. More...

enum class	MayaFlux::Kakshya::MemoryLayout : uint8_t { MayaFlux::Kakshya::ROW_MAJOR , MayaFlux::Kakshya::COLUMN_MAJOR }
	Memory layout for multi-dimensional data. More...

enum class	MayaFlux::Kakshya::OrganizationStrategy : uint8_t { MayaFlux::Kakshya::INTERLEAVED , MayaFlux::Kakshya::PLANAR , MayaFlux::Kakshya::HYBRID , MayaFlux::Kakshya::USER_DEFINED }
	Data organization strategy for multi-channel/multi-frame data. More...

Functions
size_t	MayaFlux::Kakshya::gpu_data_format_bytes (GpuDataFormat fmt) noexcept
	Byte size of one element of a GpuDataFormat.

bool	MayaFlux::Kakshya::is_structured_modality (DataModality modality)
	Check if a modality represents structured data (vectors, matrices).

std::string_view	MayaFlux::Kakshya::modality_to_string (DataModality modality)
	Convert DataModality enum to string representation.
