get_metadata()

std::unordered_map< std::string, std::string > MayaFlux::Nodes::NodeNetwork::get_metadata ( ) const

virtual

Get network metadata for debugging/visualization.

Returns

Map of property names to string representations

Subclasses can override to expose internal state:

• Particle count, average velocity
• Modal frequencies, decay times
• Waveguide delay lengths etc.

Reimplemented in MayaFlux::Nodes::ModalNetwork, and MayaFlux::Nodes::ParticleNetwork.

Definition at line 22 of file NodeNetwork.cpp.

{
    return { { "topology", topology_to_string(m_topology) },
        { "output_mode", output_mode_to_string(m_output_mode) },
        { "node_count", std::to_string(get_node_count()) },
        { "enabled", m_enabled ? "true" : "false" } };
}

References get_node_count(), m_enabled, m_output_mode, m_topology, output_mode_to_string(), and topology_to_string().

Referenced by MayaFlux::Nodes::ModalNetwork::get_metadata(), and MayaFlux::Nodes::ParticleNetwork::get_metadata().

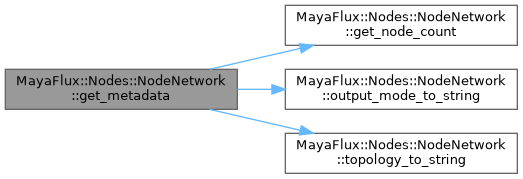

Here is the call graph for this function:

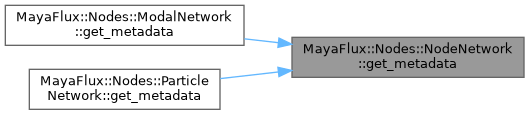

Here is the caller graph for this function:
