get_metadata()

std::unordered_map< std::string, std::string > MayaFlux::Nodes::Network::ParticleNetwork::get_metadata ( ) const

overridevirtual

Get network metadata for debugging/visualization.

Returns

Map of property names to string representations

Subclasses can override to expose internal state:

• Particle count, average velocity
• Modal frequencies, decay times
• Waveguide delay lengths etc.

Reimplemented from MayaFlux::Nodes::Network::NodeNetwork.

Definition at line 120 of file ParticleNetwork.cpp.

{
    auto metadata = NodeNetwork::get_metadata();

    metadata["particle_count"] = std::to_string(m_particles.size());
    metadata["gravity"] = std::format("({:.2f}, {:.2f}, {:.2f})",
        m_gravity.x, m_gravity.y, m_gravity.z);
    metadata["drag"] = std::to_string(m_drag);
    metadata["timestep"] = std::to_string(m_timestep);
    metadata["bounds_mode"] = [this]() {
        switch (m_bounds_mode) {
        case BoundsMode::NONE:
            return "NONE";
        case BoundsMode::BOUNCE:
            return "BOUNCE";
        case BoundsMode::WRAP:
            return "WRAP";
        case BoundsMode::CLAMP:
            return "CLAMP";
        case BoundsMode::DESTROY:
            return "DESTROY";
        default:
            return "UNKNOWN";
        }
    }();

    glm::vec3 avg_velocity(0.0F);
    for (const auto& p : m_particles) {
        avg_velocity += p.velocity;
    }
    avg_velocity /= static_cast<float>(m_particles.size());
    metadata["avg_velocity"] = std::format("({:.2f}, {:.2f}, {:.2f})",
        avg_velocity.x, avg_velocity.y, avg_velocity.z);

    if (m_topology == Topology::SPATIAL) {
        metadata["interaction_radius"] = std::to_string(m_interaction_radius);
        metadata["neighbor_map_size"] = std::to_string(m_neighbor_map.size());
    }

    return metadata;
}

References BOUNCE, CLAMP, DESTROY, MayaFlux::Nodes::Network::NodeNetwork::get_metadata(), m_bounds_mode, m_drag, m_gravity, m_interaction_radius, m_neighbor_map, m_particles, m_timestep, MayaFlux::Nodes::Network::NodeNetwork::m_topology, NONE, MayaFlux::Nodes::Network::NodeNetwork::SPATIAL, and WRAP.

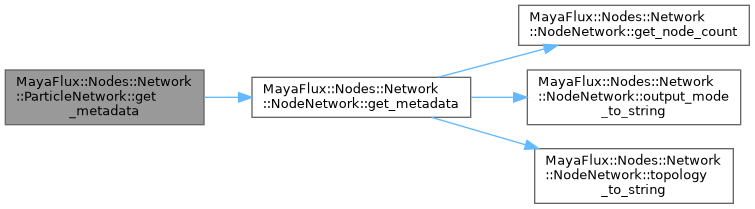

Here is the call graph for this function:
