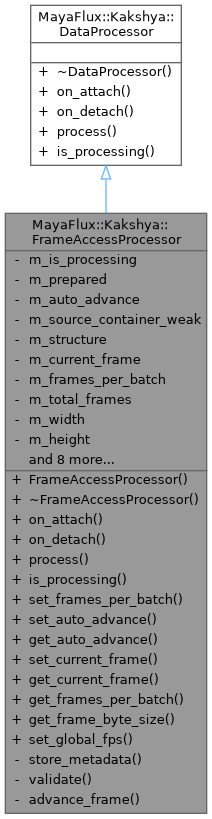

Inheritance diagram for MayaFlux::Kakshya::FrameAccessProcessor:

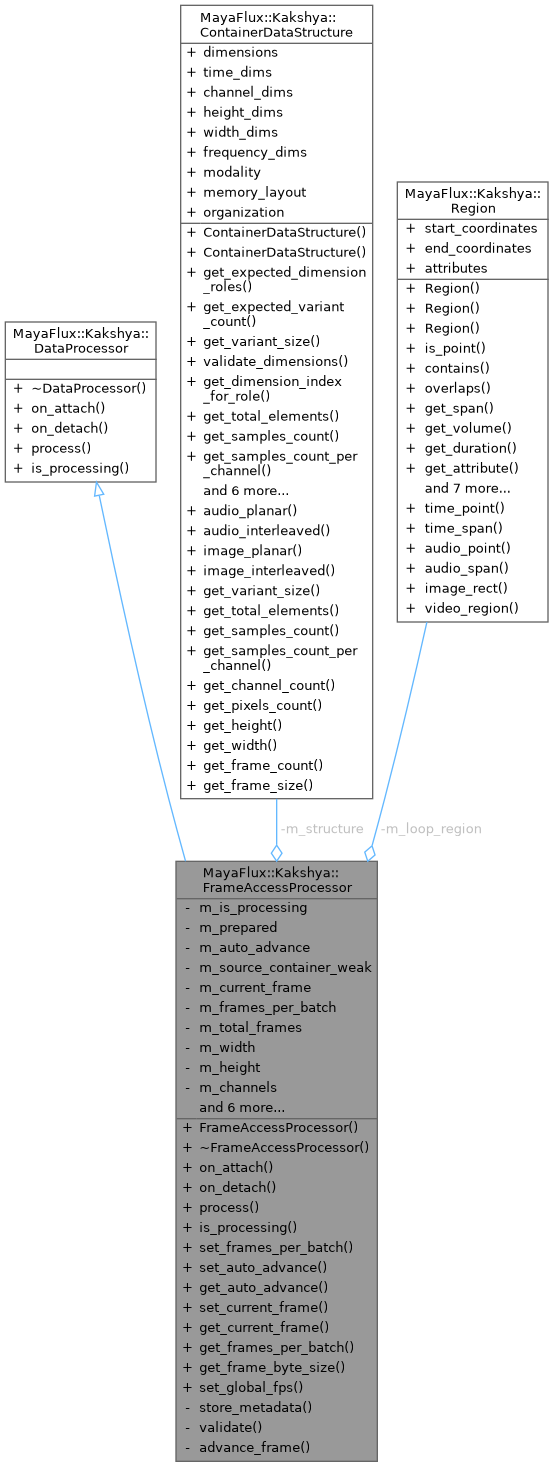

Collaboration diagram for MayaFlux::Kakshya::FrameAccessProcessor:

Public Member Functions
	FrameAccessProcessor ()=default

	~FrameAccessProcessor () override=default

void	on_attach (const std::shared_ptr< SignalSourceContainer > &container) override
	Attach the processor to a video container.

void	on_detach (const std::shared_ptr< SignalSourceContainer > &container) override
	Detach the processor from its container.

void	process (const std::shared_ptr< SignalSourceContainer > &container) override
	Extract the current frame(s) into the container's processed_data.

bool	is_processing () const override
	Query if the processor is currently performing processing.

void	set_frames_per_batch (uint64_t count)
	Set the number of frames extracted per process() call.

void	set_auto_advance (bool enable)
	Enable or disable automatic frame advancement after each process() call.

bool	get_auto_advance () const
	Get the current auto-advance state.

void	set_current_frame (uint64_t frame)
	Set the current frame index (temporal cursor).

uint64_t	get_current_frame () const
	Get the current frame index.

uint64_t	get_frames_per_batch () const
	Get the number of frames per batch.

uint64_t	get_frame_byte_size () const
	Get the cached frame byte size (width × height × channels).

void	set_global_fps (double fps)

Public Member Functions inherited from MayaFlux::Kakshya::DataProcessor
virtual	~DataProcessor ()=default
	Virtual destructor for proper cleanup.

Private Member Functions
void	store_metadata (const std::shared_ptr< SignalSourceContainer > &container)
	Cache dimension metadata and frame geometry from the container.

void	validate ()
	Validate that the container is suitable for frame-based processing.

void	advance_frame (uint64_t frames_to_advance)
	Advance the frame cursor, respecting loop boundaries.

Private Attributes
std::atomic< bool >	m_is_processing { false }

bool	m_prepared {}

bool	m_auto_advance { true }

std::weak_ptr< SignalSourceContainer >	m_source_container_weak

ContainerDataStructure	m_structure

uint64_t	m_current_frame {}

uint64_t	m_frames_per_batch { 1 }

uint64_t	m_total_frames {}

uint64_t	m_width {}

uint64_t	m_height {}

uint64_t	m_channels {}

uint64_t	m_frame_byte_size {}

double	m_global_fps { 60.0 }

bool	m_looping_enabled {}

Region	m_loop_region

std::chrono::steady_clock::time_point	m_last_process_time {}

double	m_frame_accumulator {}
	Sub-frame accumulator for wall-clock-driven advancement.

double	m_frame_rate {}
	Cached video frame rate in frames per second.

Detailed Description

Definition at line 40 of file FrameAccessProcessor.hpp.

The documentation for this class was generated from the following files:
