MayaFlux::Buffers::PresentProcessor Class Reference

Final processor that executes render operations after all buffer processing. More...

#include <RootGraphicsBuffer.hpp>

Inheritance diagram for MayaFlux::Buffers::PresentProcessor:

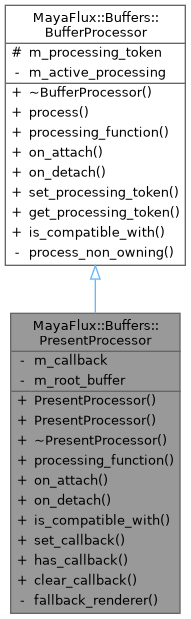

Collaboration diagram for MayaFlux::Buffers::PresentProcessor:

Public Types
using	RenderCallback = std::function< void(const std::shared_ptr< RootGraphicsBuffer > &root)>
	Callback signature for render operations.

Public Member Functions
	PresentProcessor (RenderCallback callback)
	Creates a render processor with a callback function.
	PresentProcessor ()
	Default constructor (no callback set)
	~PresentProcessor () override=default
void	processing_function (std::shared_ptr< Buffer > buffer) override
	Executes the render callback.
void	on_attach (std::shared_ptr< Buffer > buffer) override
	Called when processor is attached to a buffer.
void	on_detach (std::shared_ptr< Buffer > buffer) override
	Called when processor is detached from a buffer.
bool	is_compatible_with (std::shared_ptr< Buffer > buffer) const override
	Checks compatibility with a specific buffer type.
void	set_callback (RenderCallback callback)
	Sets or updates the render callback.
bool	has_callback () const
	Checks if a callback is configured.
void	clear_callback ()
	Clears the current callback.
Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.
void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.
virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.
virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

Private Member Functions
void	fallback_renderer (const std::shared_ptr< RootGraphicsBuffer > &root)

Private Attributes
RenderCallback	m_callback
	User-provided render callback.
std::shared_ptr< RootGraphicsBuffer >	m_root_buffer
	Reference to root buffer (for validation and callbacks)

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Final processor that executes render operations after all buffer processing.

PresentProcessor is designed to be set as the final processor of RootGraphicsBuffer. It's invoked after all child buffer processing chains have completed, making it the ideal point to:

• Record render commands using processed GPU buffers
• Coordinate rendering operations across multiple buffers
• Submit command buffers to GPU queues
• Present frames to the swapchain

Design Philosophy:

• Callback-based for maximum flexibility
• Receives RootGraphicsBuffer with all processed child buffers
• No assumptions about rendering strategy (forward, deferred, etc.)
• Can query buffers by usage type for organized rendering

Usage Pattern:

auto render_proc = std::make_shared<PresentProcessor>(
    [this](RootGraphicsBuffer* root) {
        // All buffers processed, ready for rendering
        auto vertex_bufs = root->get_buffers_by_usage(VKBuffer::Usage::VERTEX);
        auto uniform_bufs = root->get_buffers_by_usage(VKBuffer::Usage::UNIFORM);

        // Record render commands
        record_render_pass(vertex_bufs, uniform_bufs);

        // Submit and present
        submit_graphics_queue();
        present_frame();
    }
);

root_graphics_buffer->set_final_processor(render_proc);

Token Compatibility:

• Primary Token: GRAPHICS_BACKEND
• Executes at frame rate (after all GPU buffer processing)
• Should NOT perform heavy CPU computations (rendering coordination only)

Definition at line 319 of file RootGraphicsBuffer.hpp.

---

The documentation for this class was generated from the following files:

• RootGraphicsBuffer.hpp
• RootGraphicsBuffer.cpp
