MayaFlux::Buffers::NodeSourceProcessor Class Reference

Processor that bridges computational nodes and data buffers. More...

#include <NodeBuffer.hpp>

Inheritance diagram for MayaFlux::Buffers::NodeSourceProcessor:

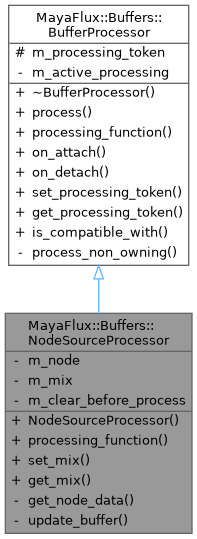

Collaboration diagram for MayaFlux::Buffers::NodeSourceProcessor:

Public Member Functions
	NodeSourceProcessor (std::shared_ptr< Nodes::Node > node, float mix=0.5f, bool clear_before_process=true)
	Creates a new processor that connects a computational node to data buffers.
void	processing_function (std::shared_ptr< Buffer > buffer) override
	Captures node computation output into a buffer.
void	set_mix (float mix)
	Sets the interpolation coefficient between existing and incoming data.
float	get_mix () const
	Gets the current interpolation coefficient.
Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.
void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.
virtual void	on_attach (std::shared_ptr< Buffer >)
	Called when this processor is attached to a buffer.
virtual void	on_detach (std::shared_ptr< Buffer >)
	Called when this processor is detached from a buffer.
virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.
virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.
virtual bool	is_compatible_with (std::shared_ptr< Buffer >) const
	Checks if this processor can handle the specified buffer type.

Private Member Functions
std::vector< double >	get_node_data (uint32_t num_samples)
	Gets a batch of data from the node.
void	update_buffer (std::vector< double > &buffer_data)
	Updates the buffer data with node output.

Private Attributes
std::shared_ptr< Nodes::Node >	m_node
	Source node that generates sequential data values.
float	m_mix
	Interpolation coefficient between existing and incoming data (0.0-1.0)
bool	m_clear_before_process
	Whether to reset the buffer before adding node output.

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Processor that bridges computational nodes and data buffers.

NodeSourceProcessor serves as a data flow connector between the node computation system and the buffer storage system, enabling the capture and persistence of dynamically generated values. This component is fundamental for integrating real-time, sample-by-sample computational processes with block-based data storage and transformation.

Key capabilities:

• Captures sequential output from computational nodes into structured data buffers
• Provides configurable interpolation between existing and incoming data streams
• Supports both accumulative and replacement data flow patterns

This processor enables powerful computational patterns such as:

• Capturing generative algorithm outputs for analysis or visualization
• Creating persistent records of ephemeral computational processes
• Implementing hybrid computational models that combine continuous and discrete processing
• Building feedback loops between different computational domains

Definition at line 32 of file NodeBuffer.hpp.

---

The documentation for this class was generated from the following files:

• NodeBuffer.hpp
• NodeBuffer.cpp
