MayaFlux::Buffers::GraphicsBatchProcessor Class Reference

Default processor for coordinating batch GPU buffer processing. More...

#include <RootGraphicsBuffer.hpp>

Inheritance diagram for MayaFlux::Buffers::GraphicsBatchProcessor:

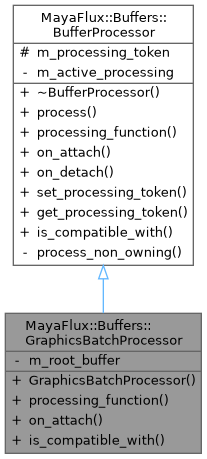

Collaboration diagram for MayaFlux::Buffers::GraphicsBatchProcessor:

Public Member Functions
	GraphicsBatchProcessor (std::shared_ptr< Buffer > root_buffer)
	Creates a new graphics batch processor.
void	processing_function (std::shared_ptr< Buffer > buffer) override
	Processes a buffer by coordinating child buffer operations.
void	on_attach (std::shared_ptr< Buffer > buffer) override
	Called when processor is attached to a buffer.
bool	is_compatible_with (std::shared_ptr< Buffer > buffer) const override
	Checks compatibility with a specific buffer type.
Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.
void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.
virtual void	on_detach (std::shared_ptr< Buffer >)
	Called when this processor is detached from a buffer.
virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.
virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

Private Attributes
std::shared_ptr< RootGraphicsBuffer >	m_root_buffer
	Shared pointer to the root buffer this processor manages.

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Default processor for coordinating batch GPU buffer processing.

GraphicsBatchProcessor manages the execution of processing chains across multiple GPU buffers in a coordinated manner. Unlike ChannelProcessor which accumulates audio data, GraphicsBatchProcessor focuses on:

• Coordinating buffer uploads (CPU -> GPU)
• Dispatching compute shader operations
• Managing resource transitions and barriers
• Ensuring proper synchronization between operations

Token Compatibility:

• Primary Token: GRAPHICS_BACKEND (frame-rate, GPU, parallel processing)
• Compatible with GPU_PROCESS tokens for compute operations
• Handles parallel batch operations on GPU resources

Definition at line 233 of file RootGraphicsBuffer.hpp.

---

The documentation for this class was generated from the following files:

• RootGraphicsBuffer.hpp
• RootGraphicsBuffer.cpp
