Processor that implements hierarchical data aggregation for root buffers. More...

#include <RootAudioBuffer.hpp>

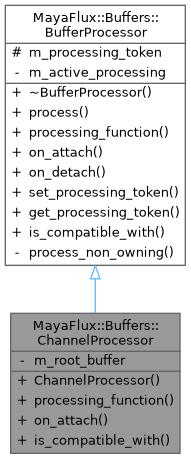

Inheritance diagram for MayaFlux::Buffers::ChannelProcessor:

Collaboration diagram for MayaFlux::Buffers::ChannelProcessor:

Public Member Functions
	ChannelProcessor (std::shared_ptr< Buffer > root_buffer)
	Creates a new channel aggregation processor.

void	processing_function (std::shared_ptr< Buffer > buffer) override
	Processes a buffer by combining tributary buffers and node network output.

void	on_attach (std::shared_ptr< Buffer > buffer) override
	Called when processor is attached to a buffer.

bool	is_compatible_with (std::shared_ptr< Buffer > buffer) const override
	Checks compatibility with a specific buffer type.

Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.

virtual void	on_detach (std::shared_ptr< Buffer >)
	Called when this processor is detached from a buffer.

virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.

virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

Private Attributes
std::shared_ptr< RootAudioBuffer >	m_root_buffer
	Shared pointer to the root buffer this processor manages.

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Processor that implements hierarchical data aggregation for root buffers.

ChannelProcessor is the default processor for RootAudioBuffer objects. It implements a configurable algorithm for combining data from tributary buffers and direct node network output to produce the final output for a channel.

This processor is automatically created and attached to root buffers, but can be replaced with custom aggregation algorithms if needed.

Token Compatibility:

Primary Token: AUDIO_BACKEND (sample-rate, CPU, sequential processing)
Compatible with other audio processing tokens through token compatibility rules
Not compatible with GRAPHICS_BACKEND tokens due to different processing models

Definition at line 150 of file RootAudioBuffer.hpp.
