MayaFlux::Buffers::FeedbackProcessor Class Reference

Combines each sample with lagged values of its own carried stream. More...

#include <FeedbackBuffer.hpp>

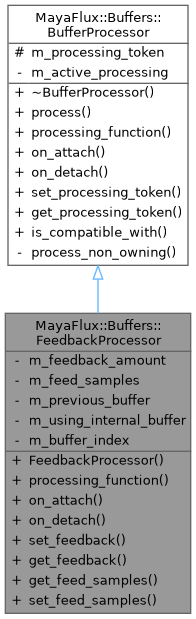

Inheritance diagram for MayaFlux::Buffers::FeedbackProcessor:

Collaboration diagram for MayaFlux::Buffers::FeedbackProcessor:

Classes
struct	State
struct	Step
	Result of a combiner that carries a different value than it outputs. More...
struct	Tap

Public Types
using	Combine = std::function< double(double, std::span< const double >, std::span< double >)>
	Combiner returning one value, written to the buffer and carried.
using	CombineStep = std::function< Step(double, std::span< const double >, std::span< double >)>
	Combiner returning an output and a carried value.
using	WindowKernel = std::function< double(std::span< double >, std::span< double >)>
	A function of one window and one array, as in Kinesis::Discrete::Kernels.

Public Member Functions
void	clear_lag_source ()
std::shared_ptr< FeedbackProcessor >	clone () const
	Same configuration, no attached state.
std::span< double >	coefficients (const std::shared_ptr< Buffer > &buffer)
	The coefficient array of one attached buffer, empty if it is not attached.
	FeedbackProcessor (Combine combine, const std::vector< double > &lags, std::vector< double > coefficients={})
	FeedbackProcessor (CombineStep combine, const std::vector< double > &lags, std::vector< double > coefficients={})
	FeedbackProcessor (float feedback=0.5F, uint32_t feed_samples=512)
	Single tap, output = input + feedback * tap.
	FeedbackProcessor (WindowKernel kernel, const std::vector< double > &lags, std::vector< double > coefficients={})
uint32_t	get_feed_samples () const
float	get_feedback () const
size_t	get_interpolation () const
bool	is_compatible_with (const std::shared_ptr< Buffer > &buffer) const override
	Checks if this processor can handle the specified buffer type.
void	on_attach (const std::shared_ptr< Buffer > &buffer) override
	Called when this processor is attached to a buffer.
void	on_detach (const std::shared_ptr< Buffer > &buffer) override
	Called when this processor is detached from a buffer.
void	processing_function (const std::shared_ptr< Buffer > &buffer) override
	The core processing function that must be implemented by derived classes.
void	set_coefficients (std::vector< double > coefficients)
	Set the initial coefficient array and reset every attached buffer's copy.
void	set_combine (Combine combine)
void	set_combine (CombineStep combine)
void	set_combine (WindowKernel kernel)
void	set_feed_samples (uint32_t samples)
	Lag of the first tap, in samples.
void	set_feedback (float amount)
void	set_interpolation (size_t order)
	Interpolation used for fractional lags.
void	set_lag (size_t tap, Kinesis::TimeMap seconds, double max_seconds)
	Drive one tap's lag from a TimeMap.
void	set_lag_source (const std::shared_ptr< FeedbackBuffer > &source)
	Read the taps from another FeedbackBuffer's ring.
void	set_lags (const std::vector< double > &lags)
	Replace all taps with fixed lags in samples.
Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.
void	process (const std::shared_ptr< Buffer > &buffer)
	Applies a computational transformation to the data in the provided buffer.
virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

Private Member Functions
void	recompute_capacity ()
State &	state_for (const std::shared_ptr< Buffer > &buffer)

Static Private Member Functions
static double	read (const Memory::HistoryBuffer< double > &ring, double lag)
static double	read_at (const Memory::HistoryBuffer< double > &ring, double position, size_t order) noexcept

Private Attributes
size_t	m_capacity { 1 }
std::vector< double >	m_coefficients
Combine	m_combine
bool	m_default_combine { false }
uint32_t	m_feed_samples { 512 }
float	m_feedback_amount { 0.5F }
WindowKernel	m_kernel
std::weak_ptr< FeedbackBuffer >	m_lag_source
size_t	m_order { 1 }
std::unordered_map< const Buffer *, State >	m_states
CombineStep	m_step
std::vector< Tap >	m_taps

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Combines each sample with lagged values of its own carried stream.

Per sample the processor reads one value per tap from a ring of carried values, calls the combiner with the current sample, those tap values and the coefficient array, writes the result to the buffer and pushes the carried value into the ring. Lags start at one sample, so recursion within a block is possible. State (ring, coefficient array, lag ramps) is kept per attached buffer, so one processor can serve many buffers and clones never share history.

Works on any AudioBuffer. On a FeedbackBuffer the ring is the buffer's own.

Definition at line 91 of file FeedbackBuffer.hpp.

---

The documentation for this class was generated from the following files:

• FeedbackBuffer.hpp
• FeedbackBuffer.cpp
