MayaFlux::Portal::Graphics::SamplerForge Class Reference

Creates and caches Vulkan samplers (Singleton) More...

#include <SamplerForge.hpp>

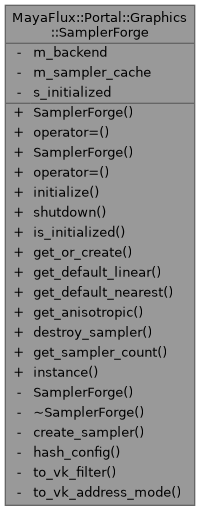

Collaboration diagram for MayaFlux::Portal::Graphics::SamplerForge:

Public Member Functions
void	destroy_sampler (vk::Sampler sampler)
	Destroy a specific sampler.
vk::Sampler	get_anisotropic (float max_anisotropy=16.0F)
	Get an anisotropic sampler (high quality)
vk::Sampler	get_default_linear ()
	Get a default linear sampler.
vk::Sampler	get_default_nearest ()
	Get a default nearest sampler.
vk::Sampler	get_or_create (const SamplerConfig &config)
	Get or create a sampler with the given configuration.
size_t	get_sampler_count () const
	Get number of cached samplers.
bool	initialize (const std::shared_ptr< Core::VulkanBackend > &backend)
	Initialize with backend reference.
bool	is_initialized () const
	Check if factory is initialized.
SamplerForge &	operator= (const SamplerForge &)=delete
SamplerForge &	operator= (SamplerForge &&)=delete
	SamplerForge (const SamplerForge &)=delete
	SamplerForge (SamplerForge &&)=delete
void	shutdown ()
	Shutdown and cleanup all samplers.

Static Public Member Functions
static SamplerForge &	instance ()
static FitPlan	plan_fit (uint32_t src_width, uint32_t src_height, uint32_t dst_width, uint32_t dst_height, FitMode mode=FitMode::STRETCH, FilterMode filter=FilterMode::LINEAR)
	Work out how a source extent maps onto a destination extent.

Private Member Functions
vk::Sampler	create_sampler (const SamplerConfig &config)
	SamplerForge ()=default
	~SamplerForge ()

Static Private Member Functions
static size_t	hash_config (const SamplerConfig &config)
static vk::SamplerAddressMode	to_vk_address_mode (AddressMode mode)
static vk::BorderColor	to_vk_border_color (BorderColor color)
static vk::Filter	to_vk_filter (FilterMode mode)

Private Attributes
std::shared_ptr< Core::VulkanBackend >	m_backend
std::unordered_map< size_t, vk::Sampler >	m_sampler_cache

Static Private Attributes
static bool	s_initialized = false

Detailed Description

Creates and caches Vulkan samplers (Singleton)

Samplers control how textures are filtered and addressed when sampled in shaders. This factory caches samplers based on configuration to avoid creating duplicates.

Lifecycle:

• Initialize with backend reference
• Create samplers via get_or_create()
• Samplers are cached and reused
• Cleanup destroys all samplers

Thread-safe after initialization.

Definition at line 46 of file SamplerForge.hpp.

---

The documentation for this class was generated from the following files:

• SamplerForge.hpp
• SamplerForge.cpp
