get_metadata()

std::unordered_map< std::string, std::string > MayaFlux::Nodes::Network::PointCloudNetwork::get_metadata ( ) const

overridevirtual

Get network metadata for debugging/visualization.

Returns

Map of property names to string representations

Subclasses can override to expose internal state:

• Particle count, average velocity
• Modal frequencies, decay times
• Waveguide delay lengths etc.

Reimplemented from MayaFlux::Nodes::Network::NodeNetwork.

Definition at line 184 of file PointCloudNetwork.cpp.

{
    auto metadata = NodeNetwork::get_metadata();

    metadata["point_count"] = std::to_string(get_node_count());
    metadata["operator"] = std::string(m_operator ? m_operator->get_type_name() : "none");
    metadata["bounds_min"] = std::format("({:.2f}, {:.2f}, {:.2f})",
        m_bounds.min.x, m_bounds.min.y, m_bounds.min.z);
    metadata["bounds_max"] = std::format("({:.2f}, {:.2f}, {:.2f})",
        m_bounds.max.x, m_bounds.max.y, m_bounds.max.z);

    if (auto* topology_op = dynamic_cast<const TopologyOperator*>(m_operator.get())) {
        if (auto connections = topology_op->query_state("connection_count")) {
            metadata["connection_count"] = std::to_string(static_cast<size_t>(*connections));
        }
        if (auto topology_count = topology_op->query_state("topology_count")) {
            metadata["topology_count"] = std::to_string(static_cast<size_t>(*topology_count));
        }
    }

    if (auto* path_op = dynamic_cast<const PathOperator*>(m_operator.get())) {
        if (auto vertex_count = path_op->query_state("vertex_count")) {
            metadata["vertex_count"] = std::to_string(static_cast<size_t>(*vertex_count));
        }
        if (auto path_count = path_op->query_state("path_count")) {
            metadata["path_count"] = std::to_string(static_cast<size_t>(*path_count));
        }
    }

    return metadata;
}

References MayaFlux::Nodes::Network::NodeNetwork::get_metadata(), get_node_count(), m_bounds, m_operator, MayaFlux::Kinesis::SamplerBounds::max, metadata, and MayaFlux::Kinesis::SamplerBounds::min.

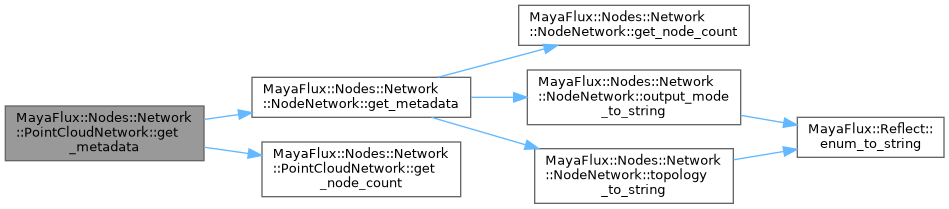

Here is the call graph for this function:
