Impulse() [2/4]

MayaFlux::Nodes::Generator::Impulse::Impulse	(	const std::shared_ptr< Node > &	frequency_modulator,
		float	frequency = 1,
		double	amplitude = 1,
		float	offset = 0
	)

Constructor with frequency modulation.

Parameters

frequency_modulator	Node that modulates the frequency
frequency	Base frequency in Hz (default: 1Hz)
amplitude	Impulse amplitude (default: 1.0)
offset	DC offset added to the output (default: 0.0)

Creates an impulse generator with frequency modulation, where the actual frequency is the base frequency plus the output of the modulator node.

Definition at line 17 of file Impulse.cpp.

    : m_offset(offset)
    , m_frequency_modulator(frequency_modulator)
    , m_amplitude_modulator(nullptr)
    , m_impulse_occurred(false)
{
    m_amplitude = amplitude;
    m_frequency = frequency;
    update_phase_increment(frequency);
}

References MayaFlux::Nodes::Generator::Generator::m_amplitude, MayaFlux::Nodes::Generator::Generator::m_frequency, and update_phase_increment().

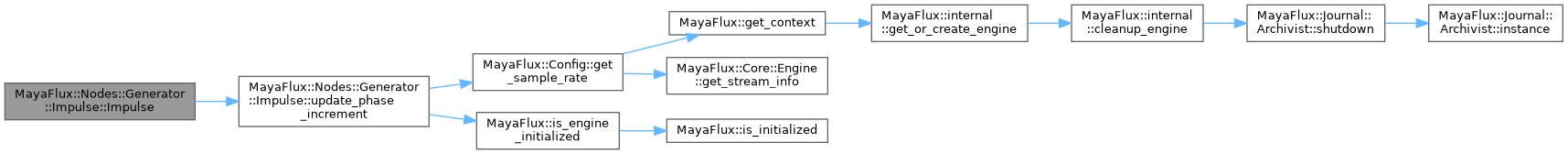

Here is the call graph for this function:
