MayaFlux::Memory::RingBuffer< T, StoragePolicy, ConcurrencyPolicy, AccessPattern > Class Template Reference

Policy-driven unified circular buffer implementation. More...

#include <RingBuffer.hpp>

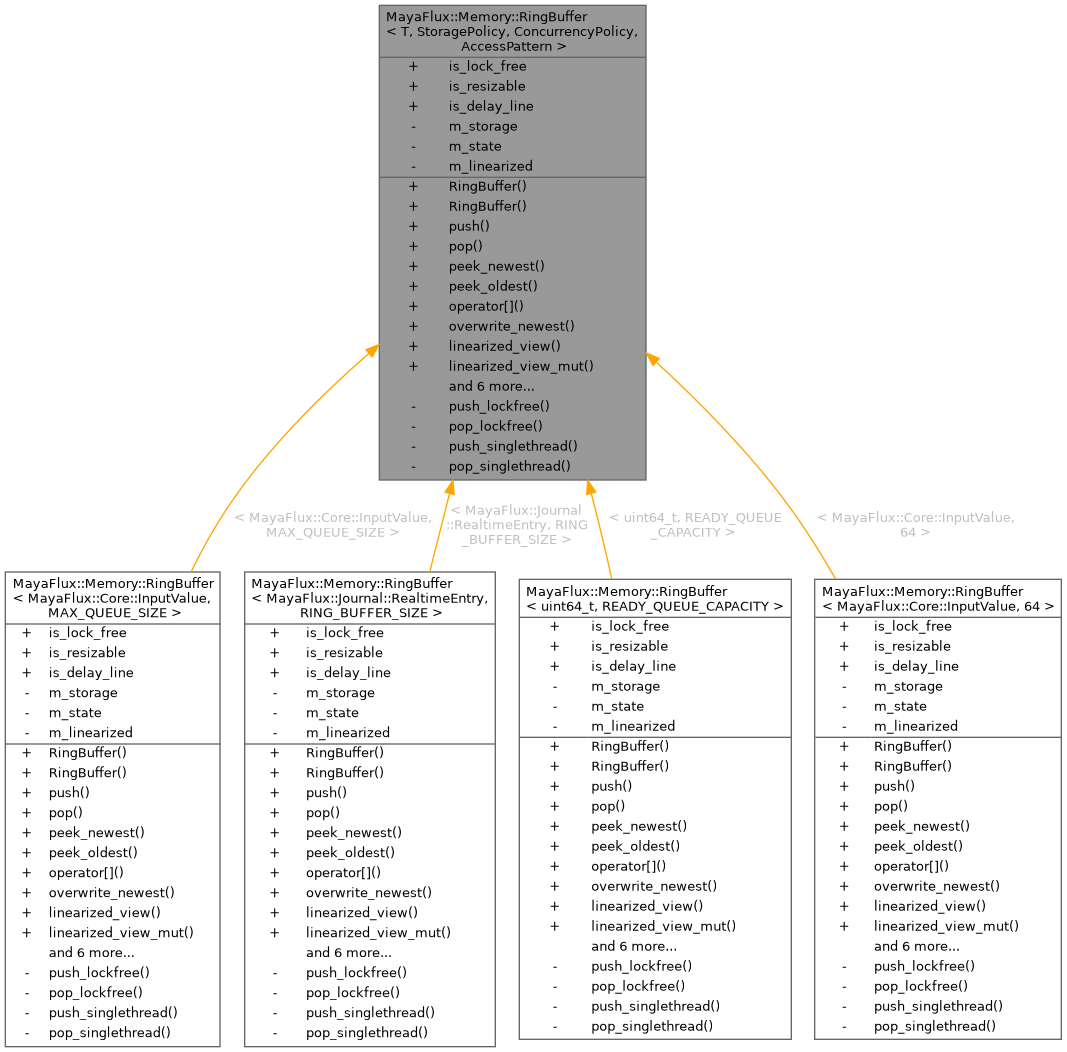

Inheritance diagram for MayaFlux::Memory::RingBuffer< T, StoragePolicy, ConcurrencyPolicy, AccessPattern >:

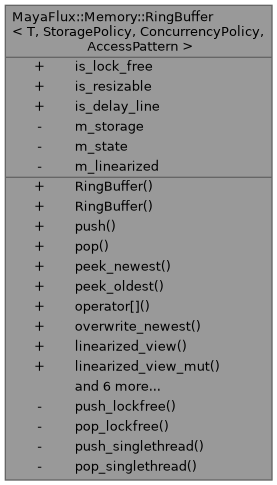

Collaboration diagram for MayaFlux::Memory::RingBuffer< T, StoragePolicy, ConcurrencyPolicy, AccessPattern >:

Public Types
using	value_type = T
using	storage_type = StoragePolicy
using	reference = T &
using	const_reference = const T &

Public Member Functions
	RingBuffer (size_t initial_capacity=64)
	Construct ring buffer with runtime capacity (DynamicStorage only)
	RingBuffer ()=default
	Default construct ring buffer (FixedStorage only) Capacity determined by template parameter.
bool	push (const T &value) noexcept(is_lock_free)
	Push element into buffer.
std::optional< T >	pop () noexcept(is_lock_free)
	Pop element from buffer.
const_reference	peek_newest () const
	Peek at newest element without removing.
const_reference	peek_oldest () const
	Peek at oldest element without removing.
const_reference	operator[] (size_t index) const
	Access element by index (delay line style)
void	overwrite_newest (const T &value)
	Overwrite newest element without advancing write position.
std::span< T >	linearized_view () const
	Get linearized view of buffer contents.
std::span< T >	linearized_view_mut ()
	Get mutable linearized view for modification.
std::vector< T >	snapshot () const
	Thread-safe snapshot of buffer contents.
bool	empty () const noexcept
	Check if buffer is empty.
size_t	size () const noexcept
	Get approximate element count.
size_t	capacity () const noexcept
	Get buffer capacity.
void	resize (size_t new_capacity)
	Resize buffer capacity (DynamicStorage only)
void	reset () noexcept
	Clear buffer contents and reset indices.

Static Public Attributes
static constexpr bool	is_lock_free = ConcurrencyPolicy::is_thread_safe
static constexpr bool	is_resizable = StoragePolicy::is_resizable
static constexpr bool	is_delay_line = AccessPattern::push_front

Private Types
using	State = typename ConcurrencyPolicy::template State< T, StoragePolicy >

Private Member Functions
bool	push_lockfree (const T &value) noexcept
std::optional< T >	pop_lockfree () noexcept
bool	push_singlethread (const T &value) noexcept
std::optional< T >	pop_singlethread () noexcept

Private Attributes
StoragePolicy	m_storage
State	m_state
std::vector< T >	m_linearized

Detailed Description

template<typename T, typename StoragePolicy, typename ConcurrencyPolicy = SingleThreadedPolicy, typename AccessPattern = QueueAccess>
class MayaFlux::Memory::RingBuffer< T, StoragePolicy, ConcurrencyPolicy, AccessPattern >

Policy-driven unified circular buffer implementation.

Provides a single, flexible ring buffer that adapts to different use cases through compile-time policy selection. Policies control storage allocation, thread safety, and access patterns independently.

Design Philosophy:

• Zero runtime cost: All policy dispatch via templates (no virtual calls)
• Type-safe: Policy constraints enforced at compile time
• Composable: Policies combine orthogonally
• Minimal: No features you don't need based on policy selection

Policy Dimensions:

1. Storage: FixedStorage (compile-time) vs DynamicStorage (runtime)
2. Concurrency: LockFreePolicy (SPSC) vs SingleThreadedPolicy (no sync)
3. Access: QueueAccess (FIFO) vs HistoryBufferAccess (newest-first)

Common Configurations:

// Lock-free input event queue (realtime → worker thread)
using InputQueue = RingBuffer<InputValue,
                              FixedStorage<InputValue, 4096>,
                              LockFreePolicy,
                              QueueAccess>;

// Single-threaded audio delay line (DSP processing)
using AudioDelay = RingBuffer<double,
                              DynamicStorage<double>,
                              SingleThreadedPolicy,
                              HistoryBufferAccess>;

// Lock-free logging buffer (audio thread → disk writer)
using LogBuffer = RingBuffer<RealtimeEntry,
                             FixedStorage<RealtimeEntry, 8192>,
                             LockFreePolicy,
                             QueueAccess>;

// Polynomial node history buffer (single-threaded DSP)
using NodeHistory = RingBuffer<double,
                               FixedStorage<double, 64>,
                               SingleThreadedPolicy,
                               HistoryBufferAccess>;

Migration from Legacy Implementations:

Template Parameters

T	Element type
StoragePolicy	FixedStorage<T,N> or DynamicStorage<T>
ConcurrencyPolicy	LockFreePolicy or SingleThreadedPolicy
AccessPattern	QueueAccess or HistoryBufferAccess

Definition at line 666 of file RingBuffer.hpp.

---

The documentation for this class was generated from the following file:

• RingBuffer.hpp
