A sequential chain of timed events with precise temporal control. More...

#include <Chain.hpp>

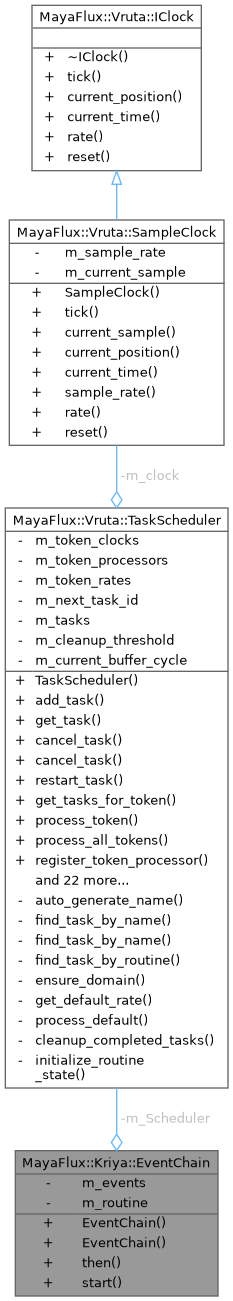

Collaboration diagram for MayaFlux::Kriya::EventChain:

Classes
struct	TimedEvent
	Structure representing a timed event in the chain. More...

Public Member Functions
	EventChain (Vruta::TaskScheduler &scheduler, std::string name="")
	Constructs an EventChain with an explicit scheduler.

EventChain &	then (std::function< void()> action, double delay_seconds=0.F)
	Adds an event to the chain with a specified delay.

EventChain &	repeat (size_t count)
	Repeat the last event N times.

EventChain &	times (size_t count)
	Repeat entire chain N times.

EventChain &	wait (double delay_seconds)
	Add a wait/delay without an action.

EventChain &	every (double interval_seconds, std::function< void()> action)
	Convenience method for repeating an action at regular intervals.

void	start ()
	Starts executing the event chain.

void	cancel ()
	Cancels the event chain if it's currently executing.

bool	is_active () const
	Checks if the event chain is currently active.

EventChain &	on_complete (std::function< void()> callback)
	Sets a callback to execute when the chain stops executing.

const std::string &	name () const
	Gets the name of the event chain.

size_t	event_count () const
	Gets the number of events in the chain.

size_t	repeat_count () const
	Gets the repeat count for the entire chain.

Private Member Functions
void	fire_on_complete ()
	Internal method to safely fire the on_complete callback.

Private Attributes
std::vector< TimedEvent >	m_events
	Collection of events in this chain.

Vruta::TaskScheduler &	m_Scheduler
	Reference to the scheduler that manages timing.

std::shared_ptr< Vruta::SoundRoutine >	m_routine
	The underlying computational routine that implements the chain.

std::function< void()>	m_on_complete
	Optional callback to execute when the chain completes.

std::string	m_name
	Optional name for the event chain.

bool	m_on_complete_fired {}
	Flag to ensure on_complete is only fired once.

size_t	m_repeat_count { 1 }
	Number of times to repeat the entire chain.

uint64_t	m_default_rate { 48000 }

Detailed Description

A sequential chain of timed events with precise temporal control.

The EventChain class provides a way to schedule a sequence of events to occur at specific time intervals. It's designed for creating temporal sequences of actions with sample-accurate timing, which is essential for deterministic computational flows.

This approach is inspired by reactive programming and temporal logic systems where precise sequencing of operations is critical. It allows for creating complex temporal behaviors with a simple, declarative API.

Example usage:

// Create an event chain
EventChain chain(*scheduler);

// Add events with specific delays
chain.then([]() { process_initial_state(); })      // Immediate
     .then([]() { transform_data(); }, 0.5)        // After 0.5 seconds
     .then([]() { apply_filter(); }, 0.25)         // After another 0.25 seconds
     .then([]() { finalize_output(); }, 0.25);     // After another 0.25 seconds

// Start the chain
chain.start();

The EventChain is particularly useful for creating precisely timed computational sequences, state transitions, or any series of time-based events that need to occur in a specific order with deterministic timing.

Definition at line 41 of file Chain.hpp.
