Default DataProcessor for WindowContainer. More...

#include <WindowAccessProcessor.hpp>

Inheritance diagram for MayaFlux::Kakshya::WindowAccessProcessor:

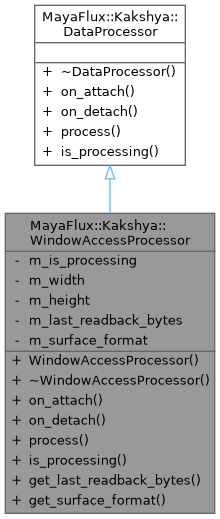

Collaboration diagram for MayaFlux::Kakshya::WindowAccessProcessor:

Public Member Functions
	WindowAccessProcessor ()=default

	~WindowAccessProcessor () override=default

void	on_attach (const std::shared_ptr< SignalSourceContainer > &container) override
	Attach to a WindowContainer.

void	on_detach (const std::shared_ptr< SignalSourceContainer > &container) override
	Release all cached state.

void	process (const std::shared_ptr< SignalSourceContainer > &container) override
	Execute a full-surface pixel readback.

bool	is_processing () const override
	Whether a process() call is currently executing.

size_t	get_last_readback_bytes () const
	Byte size of the last successful readback.

Core::GraphicsSurfaceInfo::SurfaceFormat	get_surface_format () const
	The surface format currently in use for readback allocation.

Public Member Functions inherited from MayaFlux::Kakshya::DataProcessor
virtual	~DataProcessor ()=default
	Virtual destructor for proper cleanup.

Private Attributes
std::atomic< bool >	m_is_processing { false }

uint32_t	m_width { 0 }

uint32_t	m_height { 0 }

size_t	m_last_readback_bytes { 0 }

Core::GraphicsSurfaceInfo::SurfaceFormat	m_surface_format

Detailed Description

Default DataProcessor for WindowContainer.

Reads pixel data from the last completed swapchain frame into the container's processed_data. The DataVariant type is selected at on_attach() time based on the live swapchain format reported by DisplayService::get_swapchain_format, ensuring HDR and packed formats are stored with their native precision rather than truncated to uint8.

Format → DataVariant element type: 8-bit UNORM/SRGB → std::vector<uint8_t> 16-bit SFLOAT → std::vector<uint16_t> (raw half-float bits) 10-bit packed → std::vector<uint32_t> (packed word per pixel) 32-bit SFLOAT → std::vector<float>

One readback per frame regardless of region count — region extraction is a CPU-side crop performed by WindowContainer::get_region_data().

Definition at line 29 of file WindowAccessProcessor.hpp.
