RtAudio implementation of the audio stream interface. More...

#include <RtAudioBackend.hpp>

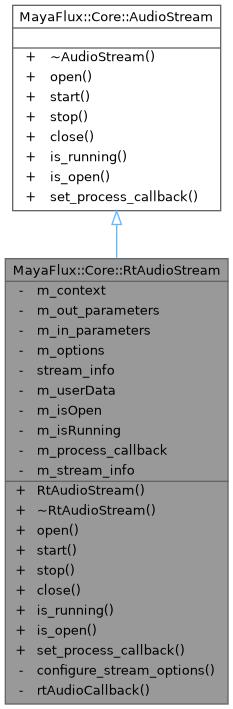

Inheritance diagram for MayaFlux::Core::RtAudioStream:

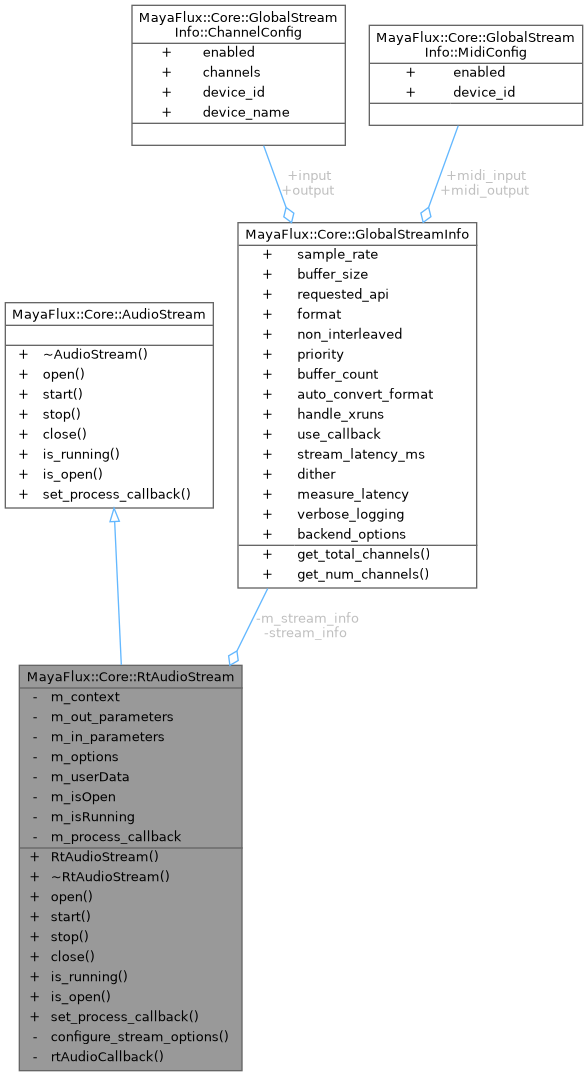

Collaboration diagram for MayaFlux::Core::RtAudioStream:

Public Member Functions
	RtAudioStream (RtAudio context, unsigned int output_device_id, unsigned int input_device_id, const GlobalStreamInfo &streamInfo, void userData)
	Initializes an audio stream with the specified configuration.

	~RtAudioStream () override
	Ensures proper cleanup of stream resources.

void	open () override
	Initializes the audio stream and allocates required resources.

void	start () override
	Activates the audio stream and begins data transfer.

void	stop () override
	Deactivates the audio stream and halts data transfer.

void	close () override
	Terminates the audio stream and releases all resources.

bool	is_running () const override
	Checks if the stream is actively processing audio data.

bool	is_open () const override
	Checks if the stream is initialized and ready for activation.

void	set_process_callback (std::function< int(void , void , unsigned int)> processCallback) override
	Sets the function to process audio data.

Public Member Functions inherited from MayaFlux::Core::AudioStream
virtual	~AudioStream ()=default
	Virtual destructor for proper cleanup of derived classes.

Private Member Functions
void	configure_stream_options ()
	Configures RtAudio stream options based on GlobalStreamInfo.

Static Private Member Functions
static int	rtAudioCallback (void output_buffer, void input_buffer, unsigned int num_frames, double stream_time, RtAudioStreamStatus status, void *user_data)
	Static callback function for the RtAudio API.

Private Attributes
RtAudio *	m_context
	Pointer to the underlying RtAudio context.

RtAudio::StreamParameters	m_out_parameters
	RtAudio-specific stream output configuration parameters.

RtAudio::StreamParameters	m_in_parameters
	RtAudio-specific stream input configuration parameters.

RtAudio::StreamOptions	m_options
	RtAudio-specific stream options.

GlobalStreamInfo	stream_info
	Engine stream configuration.

void *	m_userData
	User-provided context pointer for callbacks.

bool	m_isOpen
	Flag indicating if the stream is currently open.

bool	m_isRunning
	Flag indicating if the stream is currently running.

std::function< int(void , void , unsigned int)>	m_process_callback
	User-provided callback function for audio processing.

GlobalStreamInfo	m_stream_info
	Copy of the stream configuration for reference.

Detailed Description

RtAudio implementation of the audio stream interface.

Manages real-time audio data flow between the application and hardware using the RtAudio API. Handles the configuration, lifecycle, and callback integration for audio streams.

Definition at line 208 of file RtAudioBackend.hpp.

The documentation for this class was generated from the following files:
