graphics_thread_loop()

void MayaFlux::Core::GraphicsSubsystem::graphics_thread_loop ( )

private

Graphics thread main loop.

Self-driven frame processing:

1. Tick frame clock (advances based on wall-clock time)
2. Process visual nodes (VISUAL_RATE nodes)
3. Process graphics buffers (GRAPHICS_BACKEND buffers)
4. Tick scheduler coroutines (FRAME_ACCURATE tasks)
5. Record/submit Vulkan commands or OpenGL draw calls
6. Wait for next frame (vsync timing)

Definition at line 371 of file GraphicsSubsystem.cpp.

{
    while (m_running.load(std::memory_order_acquire)) {
        if (m_paused.load(std::memory_order_acquire)) {
            std::this_thread::sleep_for(std::chrono::milliseconds(16));
            continue;
        }

        m_frame_clock->tick();

        process();

        m_frame_clock->wait_for_next_frame();

        if (m_frame_clock->is_frame_late()) {
            uint64_t lag = m_frame_clock->get_frame_lag();
            if (lag > 2) {
                MF_RT_WARN(Journal::Component::Core, Journal::Context::GraphicsSubsystem,
                    "Frame lag detected: {} frames behind (Measured FPS: {:.1f})",
                    lag, m_frame_clock->get_measured_fps());
            }
        }
    }
}

References MayaFlux::Journal::Core, MayaFlux::Journal::GraphicsSubsystem, m_frame_clock, m_paused, m_running, MF_RT_WARN, and process().

Referenced by start().

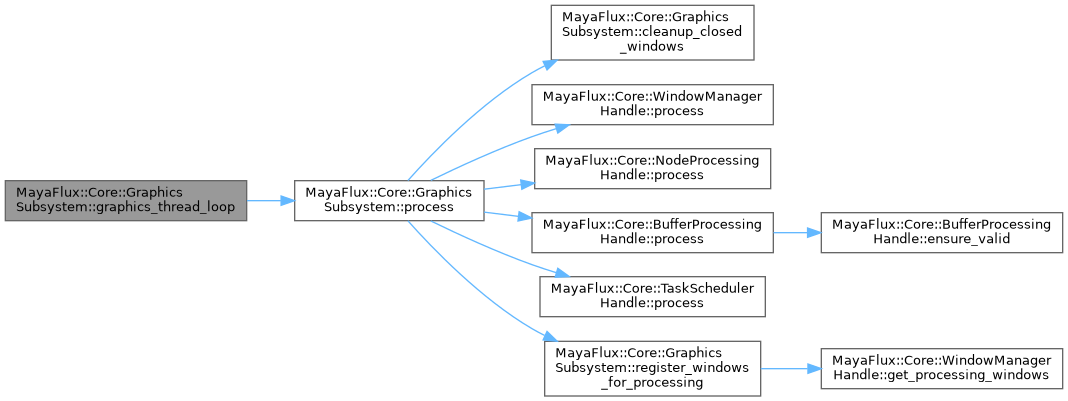

Here is the call graph for this function:

Here is the caller graph for this function:
