Channel-aware processor that writes AudioBuffer data to DynamicSoundStream containers. More...

#include <StreamWriteProcessor.hpp>

Inheritance diagram for MayaFlux::Buffers::StreamWriteProcessor:

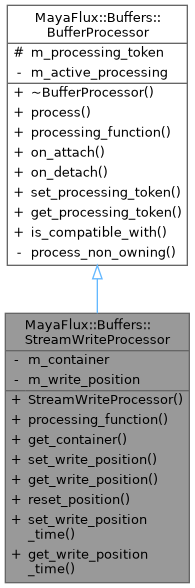

Collaboration diagram for MayaFlux::Buffers::StreamWriteProcessor:

Public Member Functions
	StreamWriteProcessor (std::shared_ptr< Kakshya::DynamicSoundStream > container, uint64_t start_position=0)
	Construct processor with target DynamicSoundStream container.

void	processing_function (std::shared_ptr< Buffer > buffer) override
	Write buffer audio data to the appropriate container channel.

std::shared_ptr< Kakshya::DynamicSoundStream >	get_container () const
	Get the target DynamicSoundStream container.

void	set_write_position (uint64_t position)
	Set the current write position in the container.

uint64_t	get_write_position () const
	Get the current write position in the container.

void	reset_position ()
	Reset write position to the beginning.

void	set_write_position_time (double time_seconds)
	Set write position to a specific time offset.

double	get_write_position_time () const
	Get current write position as time offset.

Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.

virtual void	on_attach (std::shared_ptr< Buffer >)
	Called when this processor is attached to a buffer.

virtual void	on_detach (std::shared_ptr< Buffer >)
	Called when this processor is detached from a buffer.

virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.

virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

virtual bool	is_compatible_with (std::shared_ptr< Buffer >) const
	Checks if this processor can handle the specified buffer type.

Private Attributes
std::shared_ptr< Kakshya::DynamicSoundStream >	m_container

uint64_t	m_write_position { 0 }
	Current write position in frames.

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Channel-aware processor that writes AudioBuffer data to DynamicSoundStream containers.

StreamWriteProcessor provides a bridge between the AudioBuffer processing system and DynamicSoundStream containers for real-time recording and data capture scenarios. It extracts audio data from buffers and streams it directly to the appropriate channel in the container with automatic capacity management and channel mapping.

Key Features:

Channel-Aware Writing: Maps AudioBuffer channel ID to container channel
Position Management: Tracks write position per processor instance
Automatic Capacity: Leverages container's dynamic resizing for unlimited recording
Circular Buffer Support: Handles position wrapping for circular containers
Real-time Safe: Optimized for low-latency audio processing chains
Thread-Safe: Ensures safe concurrent access to container data

Use Cases:

Multi-channel real-time audio recording
Capturing processed audio from node networks
Creating channel-specific delay lines and feedback systems
Building multi-track looping and overdub functionality
Streaming multi-channel audio to storage or network destinations

Channel Mapping: Each AudioBuffer's channel_id corresponds directly to a channel in the target DynamicSoundStream. Buffers with channel IDs exceeding the container's channel count will be skipped with a warning.

Note: For real-time use cases, consider pre-allocating container capacity or enabling circular mode to avoid dynamic allocations during processing.

Definition at line 43 of file StreamWriteProcessor.hpp.
