Processor that bridges NodeNetwork batch output into an AudioBuffer. More...
#include <NetworkAudioBuffer.hpp>

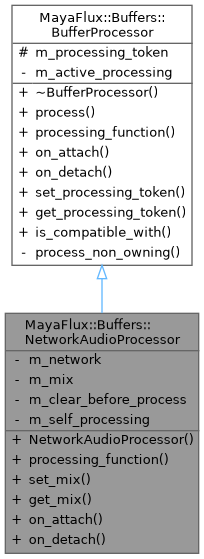

Inheritance diagram for MayaFlux::Buffers::NetworkAudioProcessor:
Collaboration diagram for MayaFlux::Buffers::NetworkAudioProcessor:
Public Member Functions | |
| NetworkAudioProcessor (std::shared_ptr< Nodes::Network::NodeNetwork > network, float mix=1.0F, bool clear_before_process=true) | |
| Creates a processor connected to a NodeNetwork. | |
| void | processing_function (const std::shared_ptr< Buffer > &buffer) override |
| Drives or reads network batch output into the buffer. | |
| void | set_mix (float mix) |
| float | get_mix () const |
| void | on_attach (const std::shared_ptr< Buffer > &buffer) override |
| Called when this processor is attached to a buffer. | |
| void | on_detach (const std::shared_ptr< Buffer > &buffer) override |
| Called when this processor is detached from a buffer. | |
| Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor | |
| virtual | ~BufferProcessor ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| void | process (const std::shared_ptr< Buffer > &buffer) |
| Applies a computational transformation to the data in the provided buffer. | |
| virtual void | set_processing_token (ProcessingToken token) |
| Gets the preferred processing backend for this processor. | |
| virtual ProcessingToken | get_processing_token () const |
| Gets the current processing token for this buffer. | |
| virtual bool | is_compatible_with (const std::shared_ptr< Buffer > &) const |
| Checks if this processor can handle the specified buffer type. | |
Private Attributes | |
| std::shared_ptr< Nodes::Network::NodeNetwork > | m_network |
| float | m_mix |
| bool | m_clear_before_process |
| bool | m_self_processing {} |
Additional Inherited Members | |
| Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor | |
| ProcessingToken | m_processing_token { ProcessingToken::AUDIO_BACKEND } |
Detailed Description
Processor that bridges NodeNetwork batch output into an AudioBuffer.
NetworkAudioProcessor drives or reads the batch output from a NodeNetwork into an AudioBuffer. If the network has already been processed this cycle (e.g. by NodeGraphManager during AUDIO_RATE processing), the processor reads the cached result. If not, the processor drives process_batch() itself, making the buffer work regardless of whether the network is registered with NodeGraphManager.
This mirrors the guard pattern used by NodeGraphManager: check is_processed_this_cycle(), then mark_processing/process_batch/ mark_processed. If another context is currently processing, the processor returns immediately rather than blocking.
The processor respects the network's routing state, applying per-channel scaling when the network is undergoing a routing transition. The mix parameter controls interpolation between existing buffer content and incoming network output.
Processing sequence per cycle:
- Validate network has AUDIO_SINK or AUDIO_COMPUTE output mode
- Optionally clear buffer (clear_before_process)
- Ensure network is initialized
- Drive process_batch() if not yet processed this cycle
- Read cached batch output via get_audio_buffer()
- Apply routing scale for the buffer's channel if active
- Mix into buffer data with configured mix level
Definition at line 42 of file NetworkAudioBuffer.hpp.
The documentation for this class was generated from the following files:
